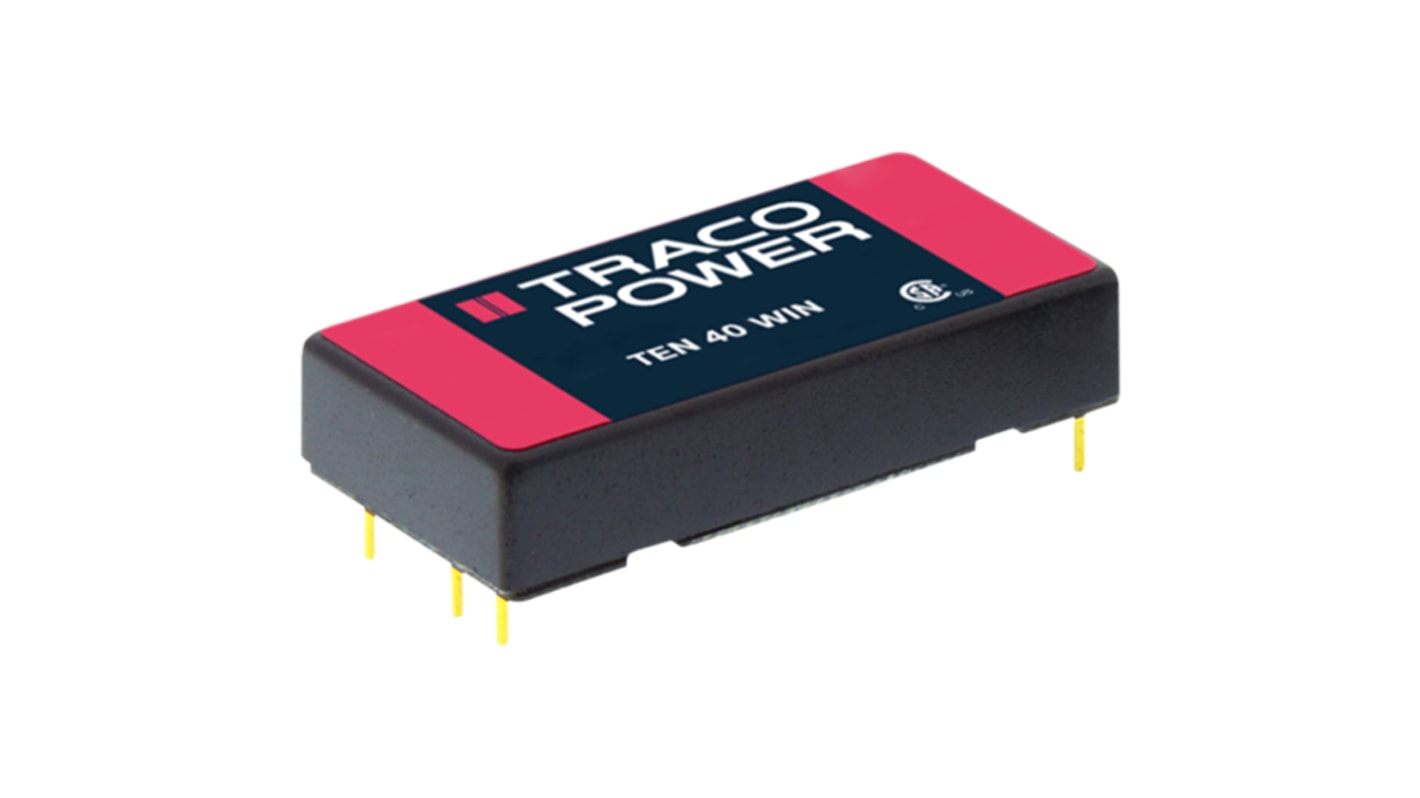

TRACOPOWER TEN 40WIN DC-DC Converter, ±15V dc/ ±1.33A Output, 18 → 75 V dc Input, 40W, Through Hole, +75°C Max
- RS Stock No.:
- 161-6378
- Mfr. Part No.:
- TEN 40-4823WIN
- Brand:
- TRACOPOWER
Available to back order for despatch 26/06/2024
Added
Price 1 Tube of 10
£709.32
(exc. VAT)
£851.18
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
1 - 4 | £709.32 | £70.932 |
5 - 9 | £688.04 | £68.804 |
10 - 24 | £666.76 | £66.676 |
25 - 49 | £638.39 | £63.839 |
50 + | £610.02 | £61.002 |
*price indicative |
- RS Stock No.:
- 161-6378
- Mfr. Part No.:
- TEN 40-4823WIN
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco 40W Single/Dual Output Regulated Isolated DC-DC Converter - TEN-40WIN Serie
The Tracopower TEN 40WIN Series is a new range of isolated high performance DC/DC converters. Due to the very high efficiency of up to 90% these 40 W converters come with a very small footprint. The TEN 40WIN has an ultra wide 4:1 input voltage range and a tight output voltage regulation. The output voltage is ad¬justable by external resistor. Remote On/Off and protection against overpower and over voltage are standard features of these converters.
Typical applications for the TEN 40WIN DC/DC converters are in mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where space on the PCB is limited.
Typical applications for the TEN 40WIN DC/DC converters are in mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where space on the PCB is limited.
Ultra compact size
Ultra wide 4:1 input voltage range
Excellent efficiency up to 90%
Output voltage adjustable
Operating temperature range –40°C to +75°C
Protection against short circuit and over voltage
Remote On/Off control
I/O isolation voltage 1500 Vdc
3-year product warranty
Ultra wide 4:1 input voltage range
Excellent efficiency up to 90%
Output voltage adjustable
Operating temperature range –40°C to +75°C
Protection against short circuit and over voltage
Remote On/Off control
I/O isolation voltage 1500 Vdc
3-year product warranty
Standards
UL/c UL 60950-1, IEC/ EN 60950-1
Specifications
Attribute | Value |
---|---|
Output Voltage | ±15V dc |
Input Voltage Range | 18 → 75 V dc |
Power Rating | 40W |
Input Voltage Nominal | 48 V dc |
Output Current | ±1.33A |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 2 |
Isolation Voltage | 1.5kV dc |
Length | 50.8mm |
Depth | 11mm |
Series | TEN 40WIN |
Load Regulation | ±1% |
Maximum Temperature | +75°C |
Minimum Temperature | -40°C |
Efficiency | 88% |
