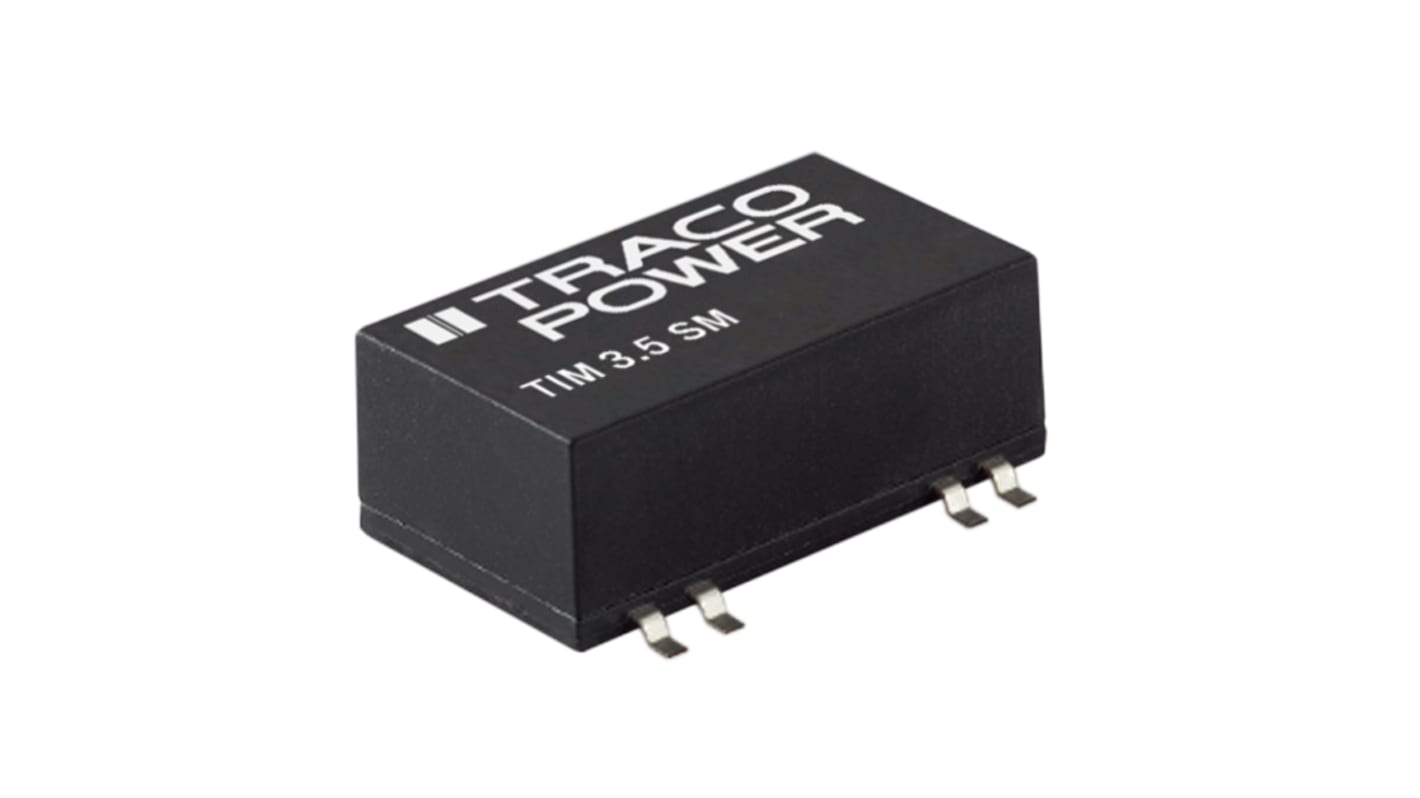

TRACOPOWER TIM 3.5 DC/DC Converter, 5V dc/ 700 mA, 75V dc Input, 36V Input 3.5 W, Surface, 90 °C Max Temp -40 °C Min
- RS Stock No.:
- 152-6850
- Mfr. Part No.:
- TIM 3.5-4811SM
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£335.46
(exc. VAT)
£402.55
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 18 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £335.46 | £33.546 |
| 5 - 9 | £325.40 | £32.54 |
| 10 - 24 | £315.33 | £31.533 |
| 25 - 49 | £301.92 | £30.192 |
| 50 + | £288.51 | £28.851 |
*price indicative
- RS Stock No.:
- 152-6850
- Mfr. Part No.:
- TIM 3.5-4811SM
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 5V dc | |
| Maximum Input Voltage | 75V dc | |
| Minimum Input Voltage | 36V | |
| Output Current 1 | 700mA | |
| Mount Type | Surface | |
| Number of Outputs | 1 | |
| MTBF | 5041000h | |
| Isolation Voltage | 5kV ac | |
| Number of Pins | 16 | |
| Maximum Output Power | 3.5W | |
| Package Type | Surface Mount | |
| Length | 24.3mm | |
| Depth | 10.5mm | |
| Series | TIM 3.5 | |
| Width | 14.4mm | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 90°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 79% | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Output Voltage 1 5V dc | ||
Maximum Input Voltage 75V dc | ||
Minimum Input Voltage 36V | ||
Output Current 1 700mA | ||
Mount Type Surface | ||
Number of Outputs 1 | ||
MTBF 5041000h | ||
Isolation Voltage 5kV ac | ||
Number of Pins 16 | ||
Maximum Output Power 3.5W | ||
Package Type Surface Mount | ||
Length 24.3mm | ||
Depth 10.5mm | ||
Series TIM 3.5 | ||
Width 14.4mm | ||
Standards/Approvals No | ||
Maximum Operating Temperature 90°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 79% | ||
Medical/Reinforced I/O-Isolation DC/DC Converters 2 - 30 Watt
3.5 Watt DC/DC converter in SMD-16 package
Certification to IEC/ES 60601-1 3rd edition for 2 x MOPP
I/O isolation 5000 VACrms rated for 250 VACrms working voltage
Risk management file acc. ISO 14971
Quality to ISO 13485, IPC-A-610 level 3
5-year product warranty
2:1 input voltage with extended low input range:4.5-12, 9-18, 18-36, 36-75
Output voltages:5.0, 12, 15, 24, ±12, ±15 VDC
I/O isolation 5000 VACrms rated for 250 VACrms working voltage
Low leakage current
Input filter to meet EN55022 class A
