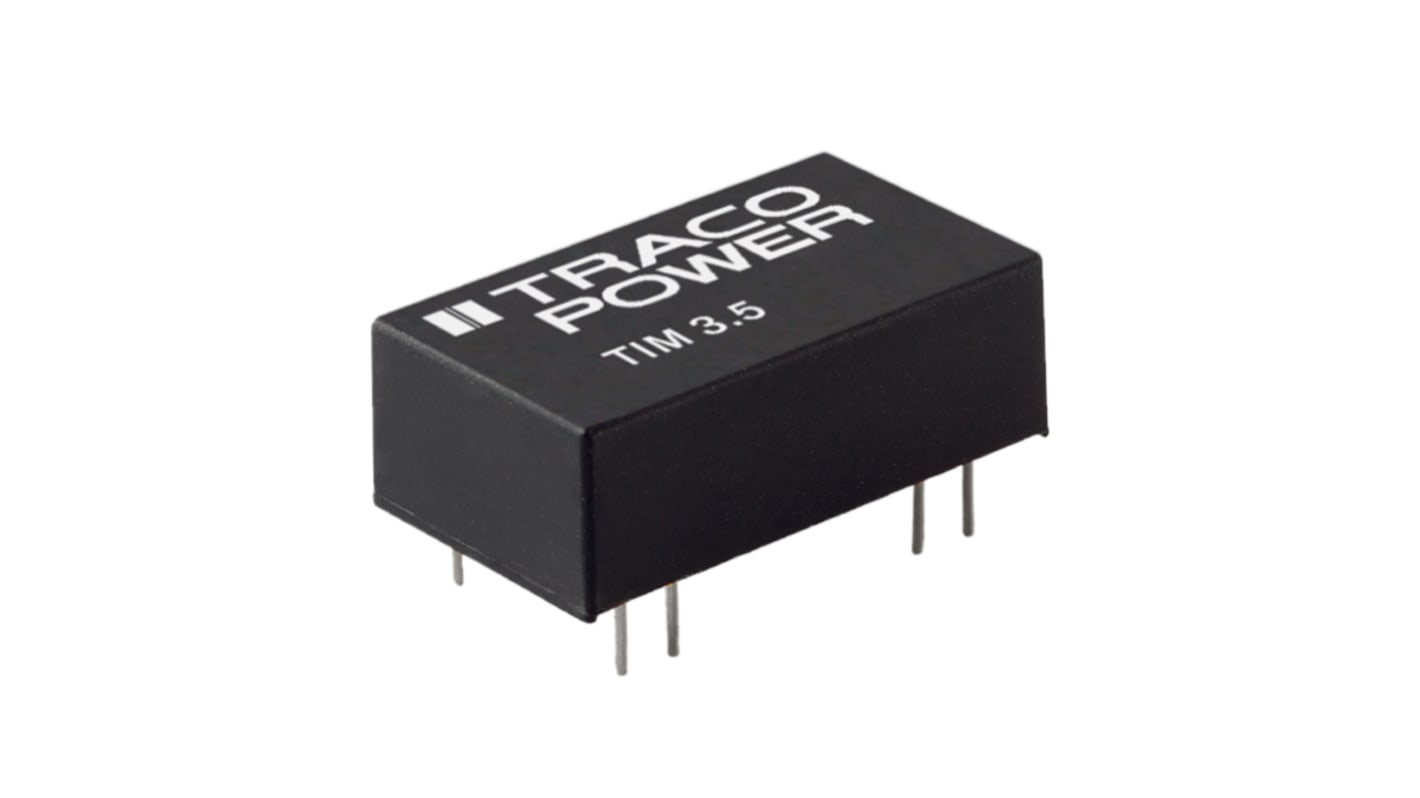

TRACOPOWER TIM 3.5 DC-DC Converter, 9V dc/ 389mA Output, 36 → 75 V dc Input, 3.5W, Through Hole

RS Stock No.:: 152-6822
Mfr. Part No.:: TIM 3.5-4819
Brand:: TRACOPOWER

TRACOPOWER TIM 3.5 DC-DC Converter, 9V dc/ 389mA Output, 36 → 75 V dc Input, 3.5W, Through Hole

Available to back order for despatch 02/12/2024

Price 1 Tube of 10

£299.49

(exc. VAT)

£359.39

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£299.49	£29.949
5 - 9	£290.51	£29.051
10 - 24	£281.52	£28.152
25 - 49	£269.54	£26.954
50 +	£257.56	£25.756

*price indicative

RS Stock No.:: 152-6822
Mfr. Part No.:: TIM 3.5-4819
Brand:: TRACOPOWER

Technical Reference

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

Medical/Reinforced I/O-Isolation DC/DC Converters 2 - 30 Watt

3.5 Watt DC/DC converter in DIP-16 package

Certification to IEC/ES 60601-1 3rd edition for 2 x MOPP
I/O isolation 5000 VACrms rated for 250 VACrms working voltage
Risk management file acc. ISO 14971
Quality to ISO 13485, IPC-A-610 level 3
5-year product warranty
2:1 input voltage with extended low input range:4.5-12, 9-18, 18-36, 36-75
Output voltages:5.0, 12, 15, 24, ±12, ±15 VDC
I/O isolation 5000 VACrms rated for 250 VACrms working voltage
Low leakage current
Input filter to meet EN55022 class A

Specifications

Attribute	Value
Output Voltage	9V dc
Input Voltage Range	36 → 75 V dc
Power Rating	3.5W
Input Voltage Nominal	48 V dc
Output Current	389mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	DIP 16
Isolation Voltage	5kV ac
Length	24.3mm
Width	14.4mm
Depth	10.2mm
Series	TIM 3.5
Standards Met	EN 55022, IEC/EN/ES 60601-1
Efficiency	80%
Medical Approved	Yes
