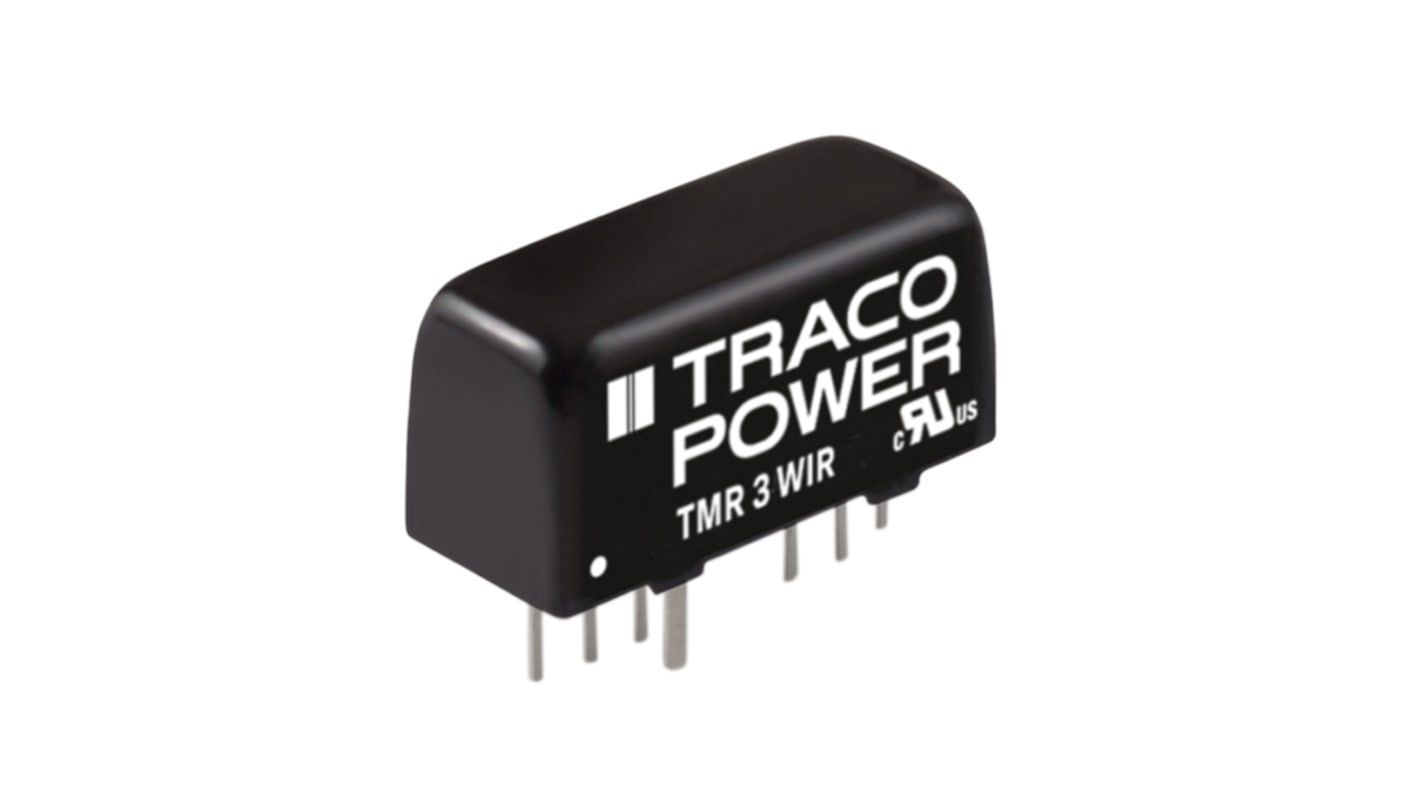

TRACOPOWER TMR 3WIR DC-DC Converter, ±12V dc/ ±125mA Output, 43 → 160 V dc Input, 3W, PCB Mount, +90°C Max Temp

RS Stock No.:: 151-2075
Mfr. Part No.:: TMR 3-7222WIR
Brand:: TRACOPOWER

TRACOPOWER TMR 3WIR DC-DC Converter, ±12V dc/ ±125mA Output, 43 → 160 V dc Input, 3W, PCB Mount, +90°C Max Temp

Bulk discount available

Subtotal (1 tube of 10 units)*

£259.06

(exc. VAT)

£310.87

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

8 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)	Per Tube	Per unit*
1 - 4	£259.06	£25.906
5 - 9	£251.29	£25.129
10 - 24	£243.51	£24.351
25 - 49	£233.15	£23.315
50 +	£222.79	£22.279

*price indicative

RS Stock No.:: 151-2075
Mfr. Part No.:: TMR 3-7222WIR
Brand:: TRACOPOWER

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TRACOPOWER
	Output Voltage	±12V dc
	Input Voltage Range	43 → 160 V dc
	Power Rating	3W
	Input Voltage Nominal	110 V dc
	Output Current	±125mA
	Mounting Type	PCB Mount
	Isolated	Yes
	Number of Outputs	2
	Package	SIP 8
	Isolation Voltage	3kV dc
	Depth	11.2mm
	Length	21.8mm
	Width	9.6mm
	Series	TMR 3WIR
	Railway Approved	Yes
	Maximum Temperature	+90°C
	Efficiency	83%
	Standards Met	cULus Listed, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, MIL-STD-810F, UL 94 V-0, UL/cUL 60950-1
	Minimum Temperature	-40°C

	Select all
	Brand TRACOPOWER
	Output Voltage ±12V dc
	Input Voltage Range 43 → 160 V dc
	Power Rating 3W
	Input Voltage Nominal 110 V dc
	Output Current ±125mA
	Mounting Type PCB Mount
	Isolated Yes
	Number of Outputs 2
	Package SIP 8
	Isolation Voltage 3kV dc
	Depth 11.2mm
	Length 21.8mm
	Width 9.6mm
	Series TMR 3WIR
	Railway Approved Yes
	Maximum Temperature +90°C
	Efficiency 83%
	Standards Met cULus Listed, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, MIL-STD-810F, UL 94 V-0, UL/cUL 60950-1
	Minimum Temperature -40°C

COO (Country of Origin):: TW

TRACOPOWER TMR 3WIR Series DC-DC Converter, ±12V DC Output Voltage, 3W Power Rating - TMR 3-7222WIR

This compact DC-DC converter from Tracopower is designed for consistent power delivery in various environments. With a power rating of 3W, it supports an input voltage range from 43 to 160V DC and provides a ±12 V DC output. This product, certified for railway applications, is suitable for transportation and industrial uses.

Features & Benefits

• Compact SIP-8 package fits in limited spaces
• I/O isolation voltage of 3000V DC enhances safety
• Operating temperature range from -40 to +90°C for adaptability
• Integrated short circuit protection increases durability
• High efficiency of 83% minimises energy loss
• Remote On/Off control simplifies system integration

Applications

• Suitable for use with railway equipment for effective power distribution
• Ideal for automation tasks requiring precise voltage regulation
• Works with electronic devices needing a regulated ±12 V supply
• Fits in high voltage systems where space is at a premium
• Designed for PCB mount in a variety of technical settings

How can the temperature range impact performance?

The converter maintains efficiency and reliable operation from -40 to +90°C, allowing it to function in different conditions.

What are the recommendations for external fusing?

Specific fuse ratings should be used based on input voltage

for instance, utilise 160 mA (slow blow) for 110V DC models.

How does the I/O isolation benefit the system?

The 3000V DC isolation promotes safety by preventing electrical faults from transferring between input and output, especially in sensitive situations.

What is the significance of the efficiency rating?

With an efficiency of 83%, the converter optimises energy usage and reduces heat generation, thereby improving overall system reliability.
