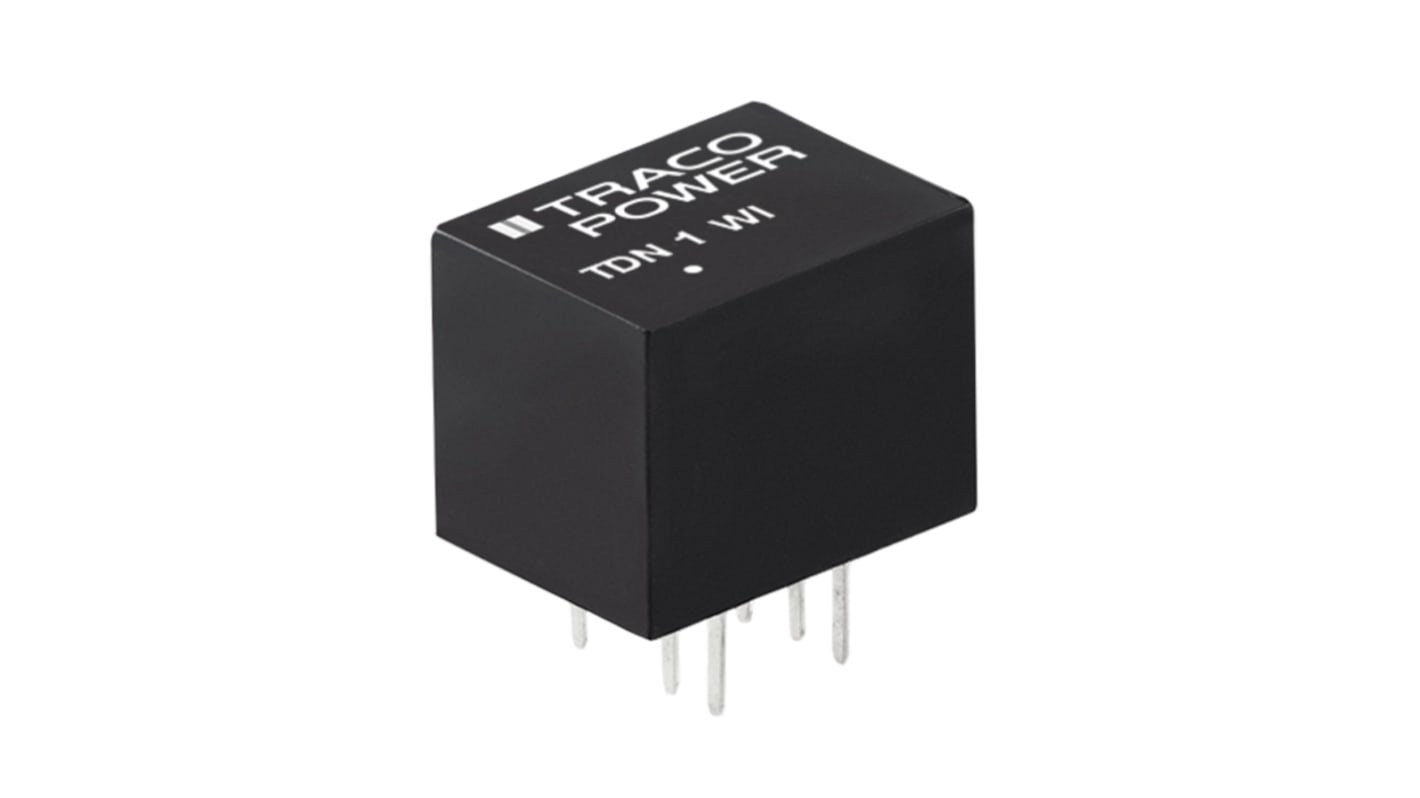

TRACOPOWER TDN 1WI DC-DC Converter, 3.3V dc/ 300mA Output, 9 → 36 V dc Input, 1W, Through Hole, +90°C Max Temp
- RS Stock No.:
- 141-8327
- Mfr. Part No.:
- TDN 1-2410WI
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£144.87
(exc. VAT)
£173.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £144.87 | £14.487 |
| 5 - 9 | £140.52 | £14.052 |
| 10 - 24 | £136.18 | £13.618 |
| 25 - 49 | £130.38 | £13.038 |
| 50 + | £124.59 | £12.459 |
*price indicative
- RS Stock No.:
- 141-8327
- Mfr. Part No.:
- TDN 1-2410WI
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 3.3V dc | |
| Input Voltage Range | 9 → 36 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 300mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | DIP | |
| Isolation Voltage | 1.6kV dc | |
| Depth | 9.9mm | |
| Length | 13.2mm | |
| Width | 9.1mm | |
| Series | TDN 1WI | |
| Load Regulation | 0.01 | |
| Maximum Temperature | +90°C | |
| Standards Met | EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-STD-810F | |
| Efficiency | 76% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 3.3V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 300mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP | ||
Isolation Voltage 1.6kV dc | ||
Depth 9.9mm | ||
Length 13.2mm | ||
Width 9.1mm | ||
Series TDN 1WI | ||
Load Regulation 0.01 | ||
Maximum Temperature +90°C | ||
Standards Met EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-STD-810F | ||
Efficiency 76% | ||
Minimum Temperature -40°C | ||
