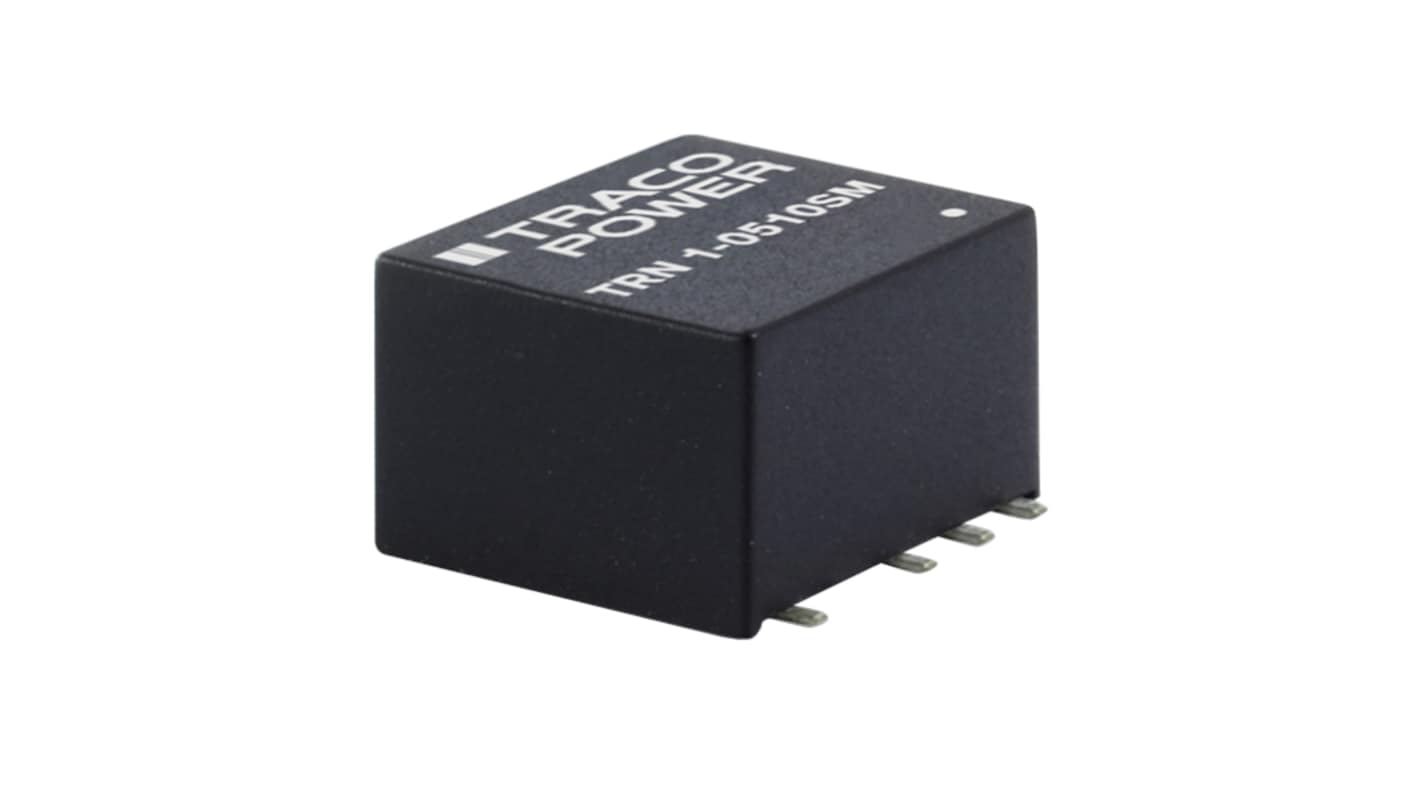

TRACOPOWER TRN 1SM Isolated DC-DC Converter, 15V dc/ 70mA Output, 4.5 → 13.2 V dc Input, 1W, Surface Mount, 90°C

View all DC-DC Converters
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
137-3031
Mfr. Part No.:
TRN 1-0513SM
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage

15V dc

Input Voltage Range

4.5 → 13.2 V dc

Power Rating

1W

Input Voltage Nominal

9 V dc

Output Current

70mA

Mounting Type

Surface Mount

Number of Outputs

1

Package

SMD

Isolation Voltage

1.6kV dc

Width

11.3mm

Length

11.9mm

Depth

7.6mm

Series

TRN 1SM

Load Regulation

1%

Minimum Temperature

-40°C

Maximum Temperature

90°C

Efficiency

82%

COO (Country of Origin):
TW
The TRN 1 Series comprises 1 Watt fully regulated, high performance DC/DC converters. They come in a compact cubical package of only 1.00 cm3. Full load operation is reliable up tp 90°C environment temperature. With 1’600 VDC I/O isolation voltage, and short current protection they cover a wide range of application when space is limited. The input of the converters is designed for a wide voltage range (2:1) and minimum load is not required. The functional I/O-isolation system is designed to meet IEC/EN 62368-1 with a test voltage (60 s) of 1600 VDC.
