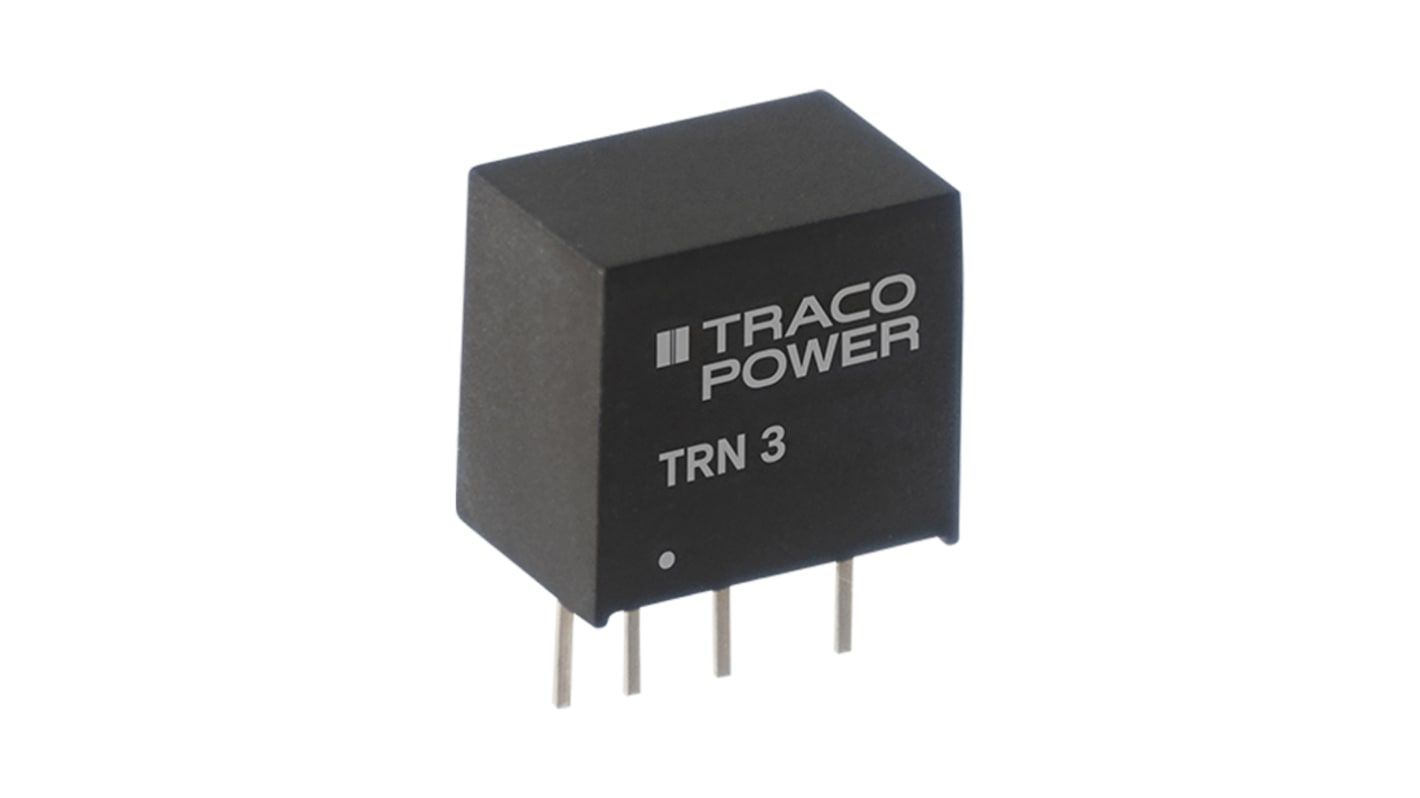

TRACOPOWER TRN 3 DC/DC Converter, 15V dc/ 200 mA, 13.2V dc Input, 4.5V Input 3 W, PCB, 85 °C Max Temp -40 °C Min Temp

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£174.73

(exc. VAT)

£209.68

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 28 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£174.73£17.473
5 - 9£169.49£16.949
10 - 24£164.25£16.425
25 - 49£157.27£15.727
50 +£150.27£15.027

*price indicative

RS Stock No.:
137-2871
Mfr. Part No.:
TRN 3-0513
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

15V dc

Product Type

DC/DC Converter

Maximum Input Voltage

13.2V dc

Minimum Input Voltage

4.5V

Output Current 1

200mA

Mount Type

PCB

Input Ratio

2:1

Number of Outputs

1

MTBF

4400000h

Isolation Voltage

1.6kV dc

Package Type

SIP

Maximum Output Power

3W

Depth

7.7mm

Length

11.9mm

Standards/Approvals

No

Series

TRN 3

Width

11mm

Maximum Operating Temperature

85°C

Efficiency

80%

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW
The TRN 3 Series comprises 3 Watt fully regulated, high performance DC/DC converters. They come in a compact cubical package of only 1.00 cm3. Full load operation is reliable up tp 85°C environment temperature. With 1’600 VDCI/Oisolation. voltage, and short current protection they cover a wide range of application when space is limited. The input of the converters is designed for a wide voltage range (2:1) and minimum load is not required. The functional I/O-isolation system is designed to meet IEC/EN 62368-1 with a test voltage (60 s) of 1600 VDC.
