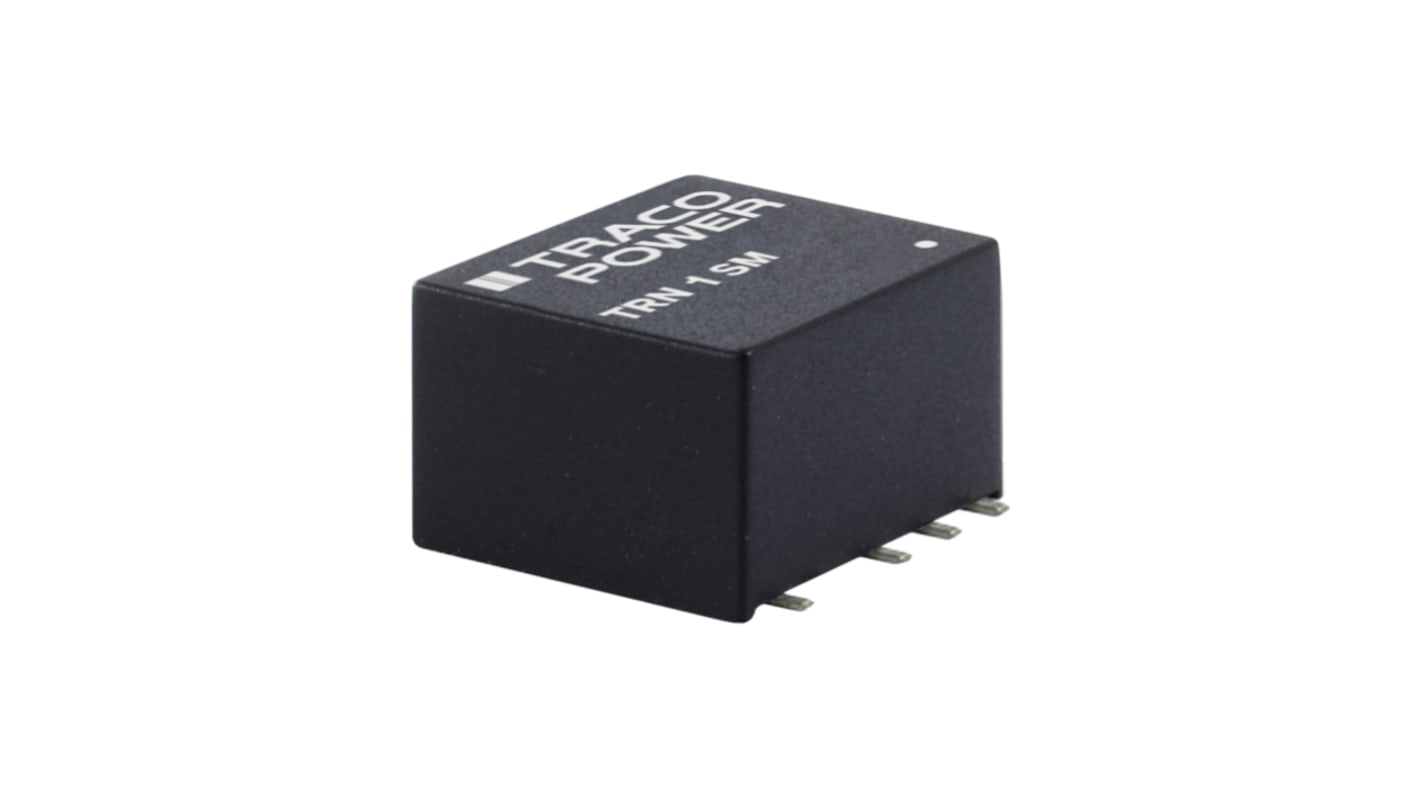

TRACOPOWER TRN 1SM DC-DC Converter, 15V dc/ 70mA Output, 9 → 18 V dc Input, 1W, Surface Mount, +90°C Max Temp
- RS Stock No.:
- 137-2844
- Mfr. Part No.:
- TRN 1-1213SM
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£108.57
(exc. VAT)
£130.28
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £108.57 | £10.857 |
| 5 - 9 | £105.32 | £10.532 |
| 10 - 24 | £102.06 | £10.206 |
| 25 - 49 | £97.72 | £9.772 |
| 50 + | £93.38 | £9.338 |
*price indicative
- RS Stock No.:
- 137-2844
- Mfr. Part No.:
- TRN 1-1213SM
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 15V dc | |
| Input Voltage Range | 9 → 18 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 70mA | |
| Mounting Type | Surface Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SMD | |
| Isolation Voltage | 1.6kV dc | |
| Depth | 7.6mm | |
| Length | 11.9mm | |
| Width | 11.3mm | |
| Series | TRN 1SM | |
| Load Regulation | 0.01 | |
| Maximum Temperature | +90°C | |
| Minimum Temperature | -40°C | |
| Efficiency | 83% | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 15V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 70mA | ||
Mounting Type Surface Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SMD | ||
Isolation Voltage 1.6kV dc | ||
Depth 7.6mm | ||
Length 11.9mm | ||
Width 11.3mm | ||
Series TRN 1SM | ||
Load Regulation 0.01 | ||
Maximum Temperature +90°C | ||
Minimum Temperature -40°C | ||
Efficiency 83% | ||
