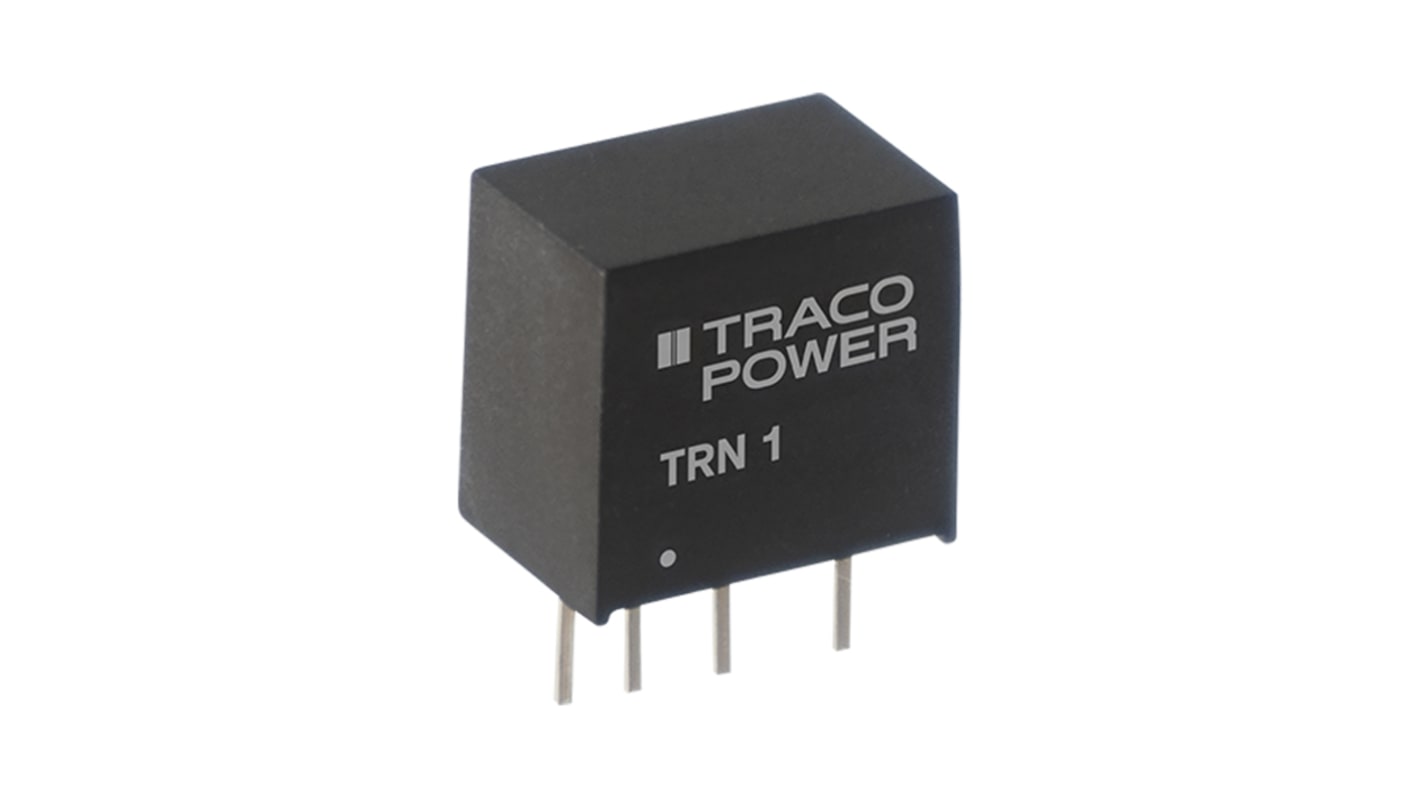

TRACOPOWER TRN 1 DC-DC Converter, ±15V dc/ ±35mA Output, 9 → 18 V dc Input, 1W, Through Hole, +90°C Max Temp
- RS Stock No.:
- 137-2814
- Mfr. Part No.:
- TRN 1-1223
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£97.57
(exc. VAT)
£117.08
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 14 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £97.57 | £9.757 |
| 5 - 9 | £94.65 | £9.465 |
| 10 - 24 | £91.71 | £9.171 |
| 25 - 49 | £87.81 | £8.781 |
| 50 + | £83.91 | £8.391 |
*price indicative
- RS Stock No.:
- 137-2814
- Mfr. Part No.:
- TRN 1-1223
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±15V dc | |
| Input Voltage Range | 9 → 18 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | ±35mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | SIP | |
| Isolation Voltage | 1.6kV dc | |
| Length | 11.9mm | |
| Depth | 7.7mm | |
| Width | 11mm | |
| Series | TRN 1 | |
| Load Regulation | 0.01 | |
| Efficiency | 80% | |
| Maximum Temperature | +90°C | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±15V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 12 V dc | ||
Output Current ±35mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP | ||
Isolation Voltage 1.6kV dc | ||
Length 11.9mm | ||
Depth 7.7mm | ||
Width 11mm | ||
Series TRN 1 | ||
Load Regulation 0.01 | ||
Efficiency 80% | ||
Maximum Temperature +90°C | ||
Minimum Temperature -40°C | ||
