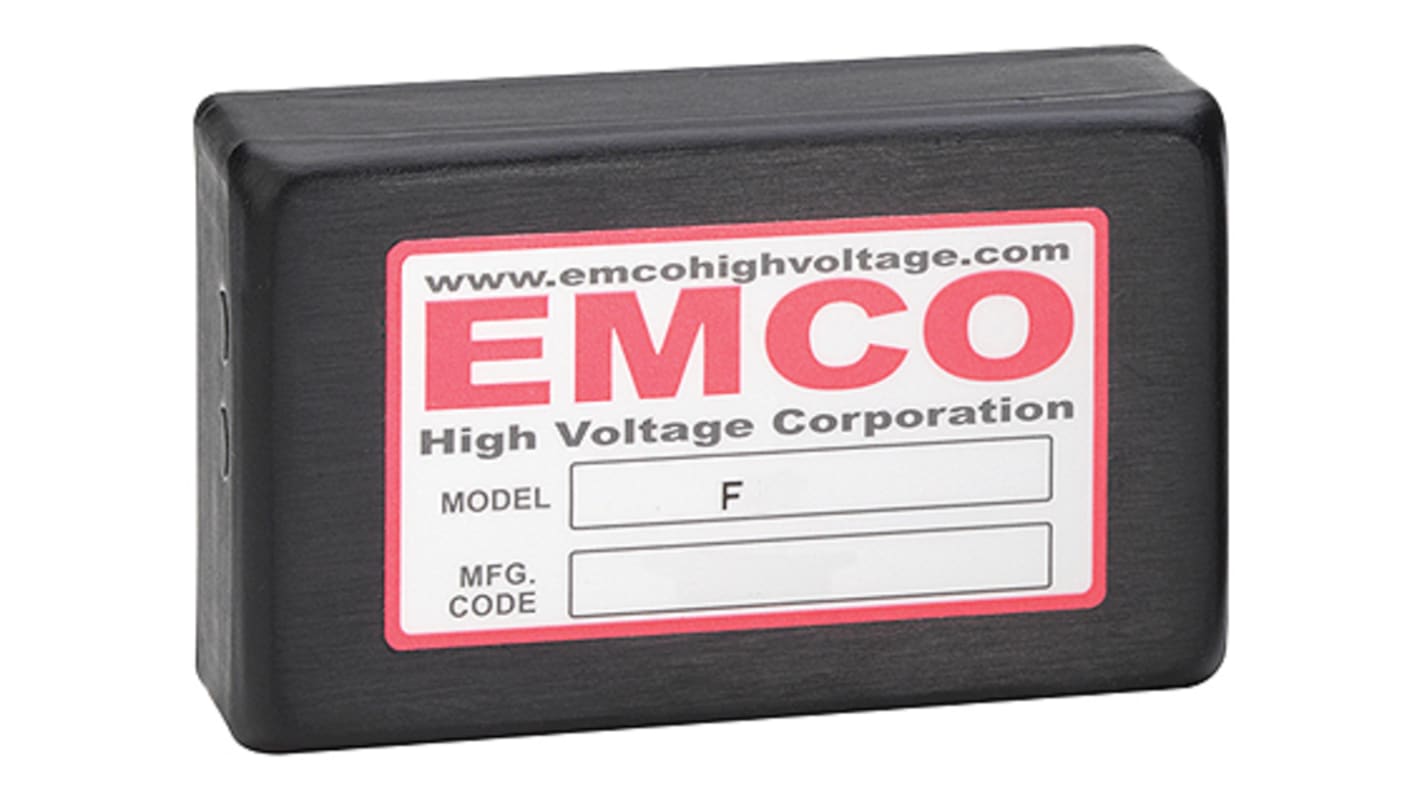

XP Power F DC/DC Converter, 1kV/ 10 mA, 12V dc Input, 12V dc Input, Through Hole, 10 W, 70 °C Max Temp -10 °C Min Temp
- RS Stock No.:
- 136-0469
- Distrelec Article No.:
- 301-83-513
- Mfr. Part No.:
- F10
- Brand:
- XP Power
Bulk discount available
Subtotal (1 unit)*
£168.29
(exc. VAT)
£201.95
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 36 unit(s) shipping from 13 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £168.29 |
| 5 - 9 | £163.24 |
| 10 - 24 | £158.19 |
| 25 - 49 | £153.14 |
| 50 + | £148.09 |
*price indicative
- RS Stock No.:
- 136-0469
- Distrelec Article No.:
- 301-83-513
- Mfr. Part No.:
- F10
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage 1 | 1kV | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 12V dc | |
| Maximum Input Voltage | 12V dc | |
| Output Current 1 | 10mA | |
| Mount Type | Through Hole | |
| MTBF | 810000h | |
| Number of Outputs | 1 | |
| Ripple and Noise | 0.1% | |
| Isolation Voltage | 3.5kV | |
| Package Type | ComPacT | |
| Maximum Output Power | 10W | |
| Length | 71.1mm | |
| Series | F | |
| Standards/Approvals | No | |
| Weight | 142g | |
| Width | 43.2mm | |
| Depth | 21.6mm | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Temperature | -10°C | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 1 1kV | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 12V dc | ||
Maximum Input Voltage 12V dc | ||
Output Current 1 10mA | ||
Mount Type Through Hole | ||
MTBF 810000h | ||
Number of Outputs 1 | ||
Ripple and Noise 0.1% | ||
Isolation Voltage 3.5kV | ||
Package Type ComPacT | ||
Maximum Output Power 10W | ||
Length 71.1mm | ||
Series F | ||
Standards/Approvals No | ||
Weight 142g | ||
Width 43.2mm | ||
Depth 21.6mm | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Temperature -10°C | ||
XP Power Isolated DC to High Voltage DC Converters F Series
From XP Power, a range of 10 W isolated DC to HV DC converters. The F series are robust in construction making them ideal for applications in harsher environments. These versatile power supplies are available with various output voltages to accommodate a wide range of applications.
Features and Benefits
• Low ripple, low EMI/RFI
• Low leakage current
• Compact size
• Short circuit protection
• Proven reliability
• Proportional input/output
• No minimum load
• No external components
Applications
• Capacitor charging
• Igniter / spark module
• Piezo devices
• Field generation
