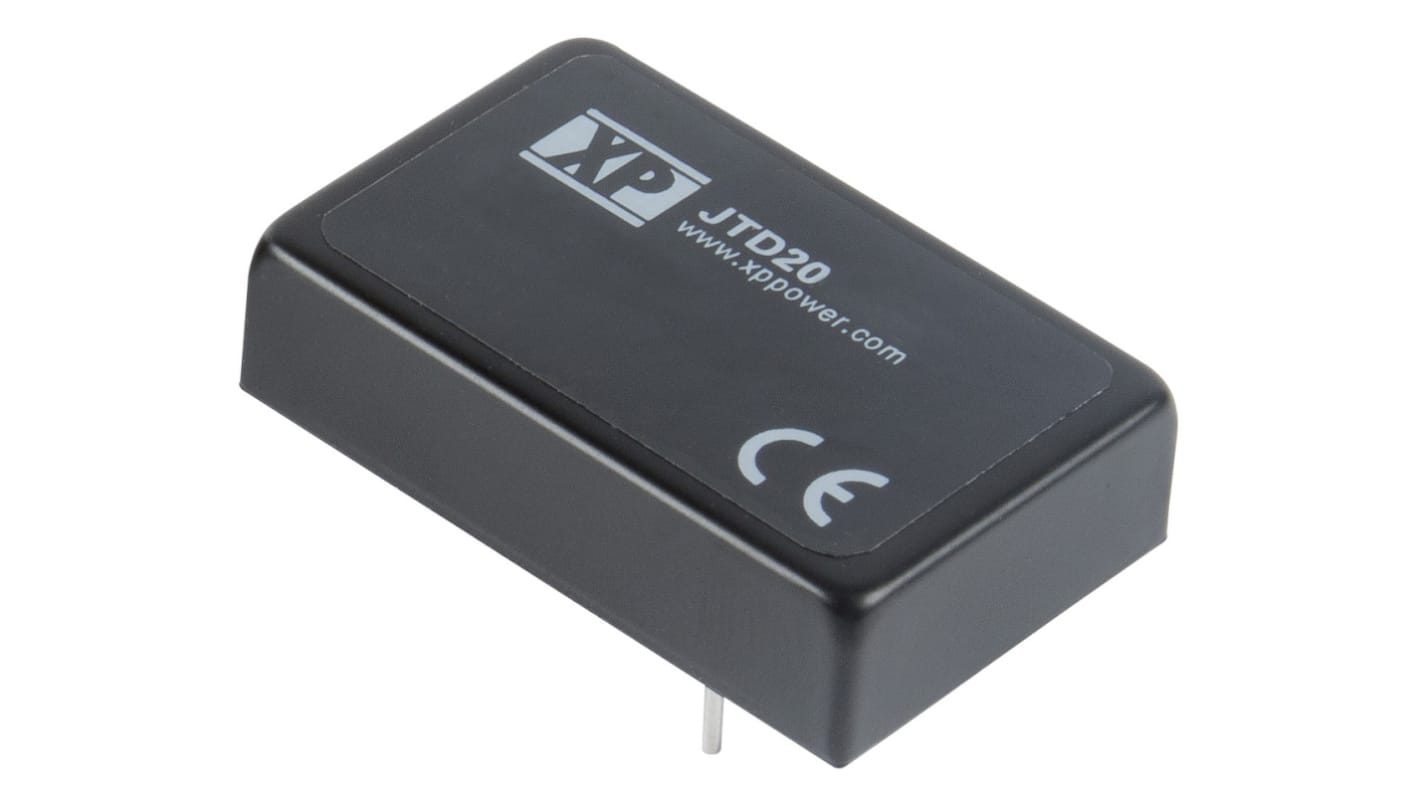

XP Power JTD20 DC-DC Converter, ±5V dc/ ±2A Output, 9 → 36 V dc Input, 20W, Through Hole, +100°C Max Temp -40°C

View all DC-DC Converters
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
135-7960
Mfr. Part No.:
JTD2024D05
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

±5V dc

Input Voltage Range

9 → 36 V dc

Power Rating

20W

Input Voltage Nominal

24 V dc

Output Current

±2A

Mounting Type

Through Hole

Isolated

Yes

Number of Outputs

2

Package

1.6 x 1 in

Isolation Voltage

1.6kV dc

Length

40.64mm

Depth

10.4mm

Width

25.4mm

Series

JTD20

Load Regulation

0.01

Minimum Temperature

-40°C

Maximum Temperature

+100°C

Standards Met

EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F

COO (Country of Origin):
TW

XP Power - JTD20 Series of Isolated DC-DC Converters


The JTD20 Series from XP Power offers a highly reliable range of regulated single and dual output, 20 W, isolated DC-DC converters. The series features a wide 4:1 input range, 1.6" x 1" footprint with full load at 65°C Ambient. These compact DC-DC converters also attribute 1600 VDC in isolation, a wide -40°C to +100°C operating temperature range and remote On/Off. All JTD20 converters come with a 3-Year Warranty.

Features and Benefits


• Regulated single and dual outputs
• Wide 4:1 input range
• 1.6" x 1" Footprint
• Remote On/Off
• Full load at 65°C ambient
• -40°C to +100°C operation
• 3-Year Warranty
