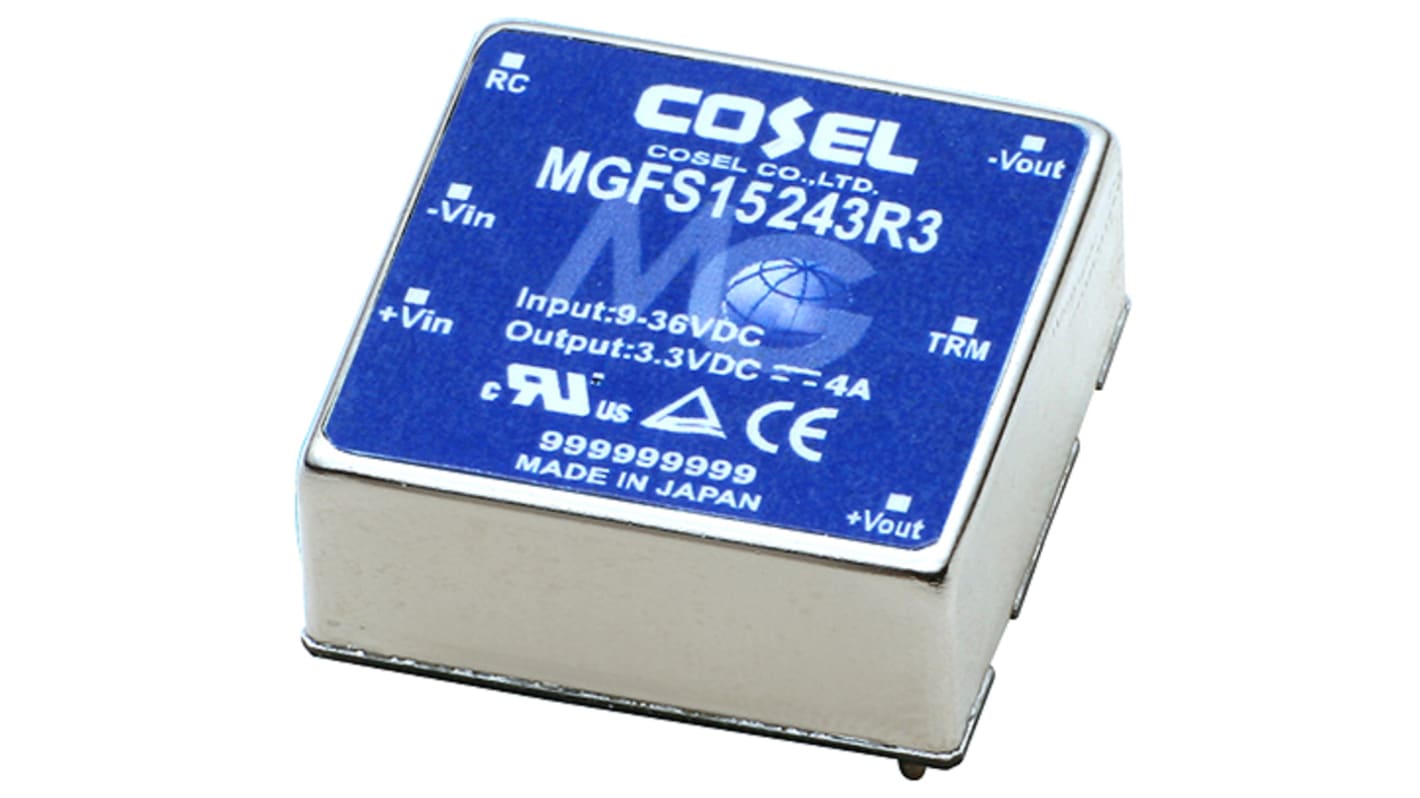

Cosel MGS DC-DC Converter, 3.3V dc/ 4A Output, 18 → 36 V dc Input, 13.2W, PCB Mount, +85°C Max Temp -40°C Min
- RS Stock No.:
- 130-9365
- Mfr. Part No.:
- MGS15243R3-R
- Brand:
- Cosel
Subtotal (1 unit)*
£17.86
(exc. VAT)
£21.43
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 8 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 + | £17.86 |
*price indicative
- RS Stock No.:
- 130-9365
- Mfr. Part No.:
- MGS15243R3-R
- Brand:
- Cosel
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Output Voltage | 3.3V dc | |
| Input Voltage Range | 18 → 36 V dc | |
| Power Rating | 13.2W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 4A | |
| Mounting Type | PCB Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | ±10% | |
| Isolation Voltage | 1.5 kV ac, 500V dc | |
| Depth | 9.9mm | |
| Length | 25.4mm | |
| Width | 25.4mm | |
| Series | MGS | |
| Load Regulation | 13.2mV | |
| Minimum Temperature | -40°C | |
| Efficiency | 87% | |
| Maximum Temperature | +85°C | |
| Standards Met | CE, cUL, cULus Recognised, EN 60950-1, TUV, UL 60950-1 | |
Select all | ||
|---|---|---|
Brand Cosel | ||
Output Voltage 3.3V dc | ||
Input Voltage Range 18 → 36 V dc | ||
Power Rating 13.2W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 4A | ||
Mounting Type PCB Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range ±10% | ||
Isolation Voltage 1.5 kV ac, 500V dc | ||
Depth 9.9mm | ||
Length 25.4mm | ||
Width 25.4mm | ||
Series MGS | ||
Load Regulation 13.2mV | ||
Minimum Temperature -40°C | ||
Efficiency 87% | ||
Maximum Temperature +85°C | ||
Standards Met CE, cUL, cULus Recognised, EN 60950-1, TUV, UL 60950-1 | ||
