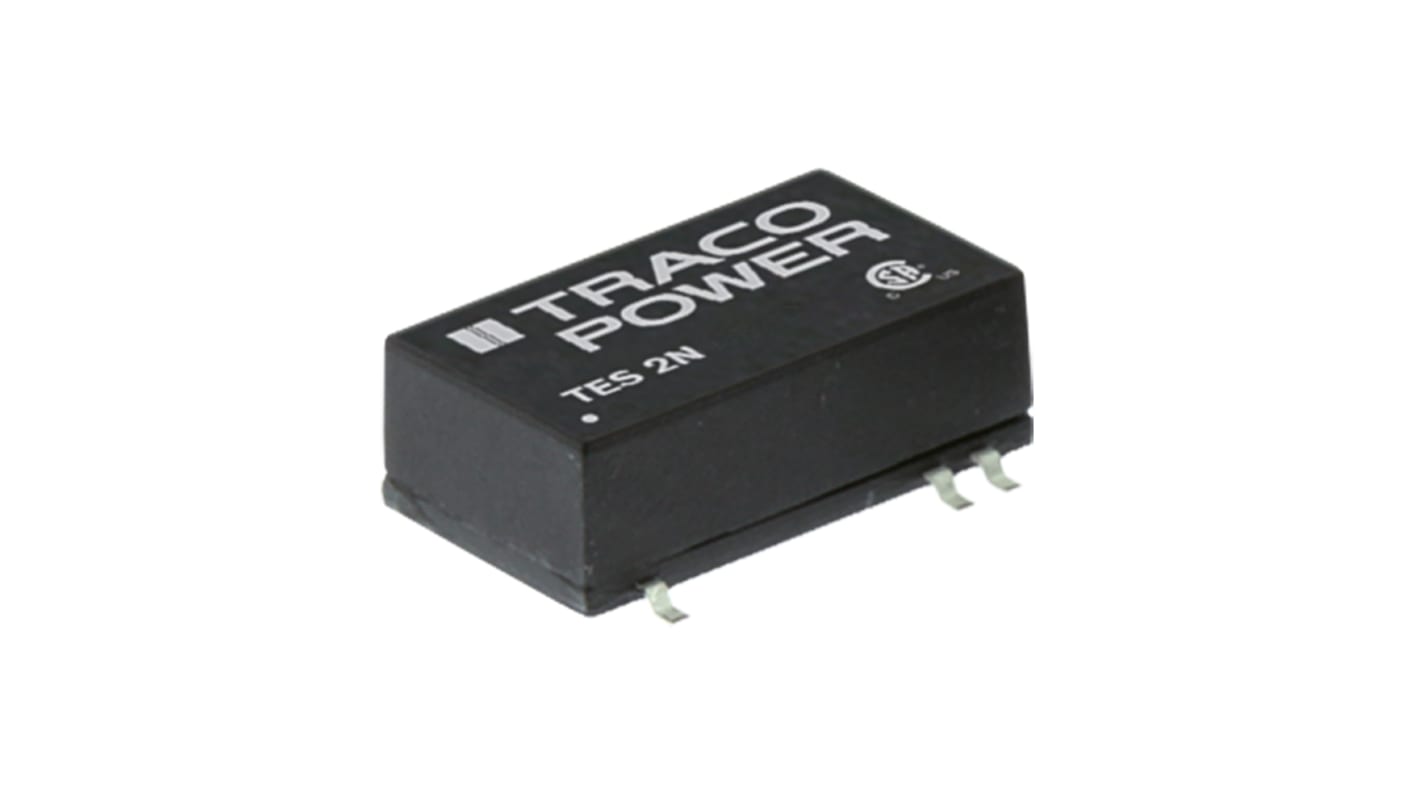

TRACOPOWER TES 2N DC-DC Converter, ±12V dc/ 85mA Output, 18 → 36 V dc Input, 2W, Surface Mount, +85°C Max Temp
- RS Stock No.:
- 124-7639
- Mfr. Part No.:
- TES 2N-2422
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£200.03
(exc. VAT)
£240.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £200.03 | £20.003 |
| 5 - 9 | £194.03 | £19.403 |
| 10 - 24 | £188.03 | £18.803 |
| 25 - 49 | £180.02 | £18.002 |
| 50 + | £172.02 | £17.202 |
*price indicative
- RS Stock No.:
- 124-7639
- Mfr. Part No.:
- TES 2N-2422
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±12V dc | |
| Input Voltage Range | 18 → 36 V dc | |
| Power Rating | 2W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 85mA | |
| Mounting Type | Surface Mount | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | DIP 16 | |
| Isolation Voltage | 1.5kV dc | |
| Length | 24mm | |
| Depth | 8mm | |
| Series | TES 2N | |
| Load Regulation | ±2% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±12V dc | ||
Input Voltage Range 18 → 36 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 85mA | ||
Mounting Type Surface Mount | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package DIP 16 | ||
Isolation Voltage 1.5kV dc | ||
Length 24mm | ||
Depth 8mm | ||
Series TES 2N | ||
Load Regulation ±2% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- TW
Traco Power DC-DC Converter, 18 to 36V DC Input Range, 78% Efficiency - TES 2N Series - TES 2N-2422
Need a solution that changes an input to a steady 12V DC supply? Go for this DC-DC converter from Traco Power to transform different voltages to the supply your application needs. Integrated 1500V DC isolation keeps your incoming and outgoing feeds separate to help prevent shocking events and unnecessary downtimes. Plus, the DIP 16 package insulates your live elements for added protection. At only 5.1g, this weight watcher adds minimal strain to your PCBs.
Features & Benefits
• Wide input range between 18 and 36V DC for versatile use
• Surface mount design for secure installation
• Broad operating temperature scope between -40°C and +85°C for use in harsh settings
• Surface mount design for secure installation
• Broad operating temperature scope between -40°C and +85°C for use in harsh settings
Applications
• Consumer electronics
• Industrial equipment
• Medical imaging systems
• Servers
• Smart lighting operations
• Industrial equipment
• Medical imaging systems
• Servers
• Smart lighting operations
How big is this DC-DC converter?
It's a small unit, featuring a length of just 24mm, making it a space-saving option for your PCBs.
What's the efficiency of this DC-DC converter?
It has an efficiency of 78% to curb heat build-ups and power losses for smooth performance.
