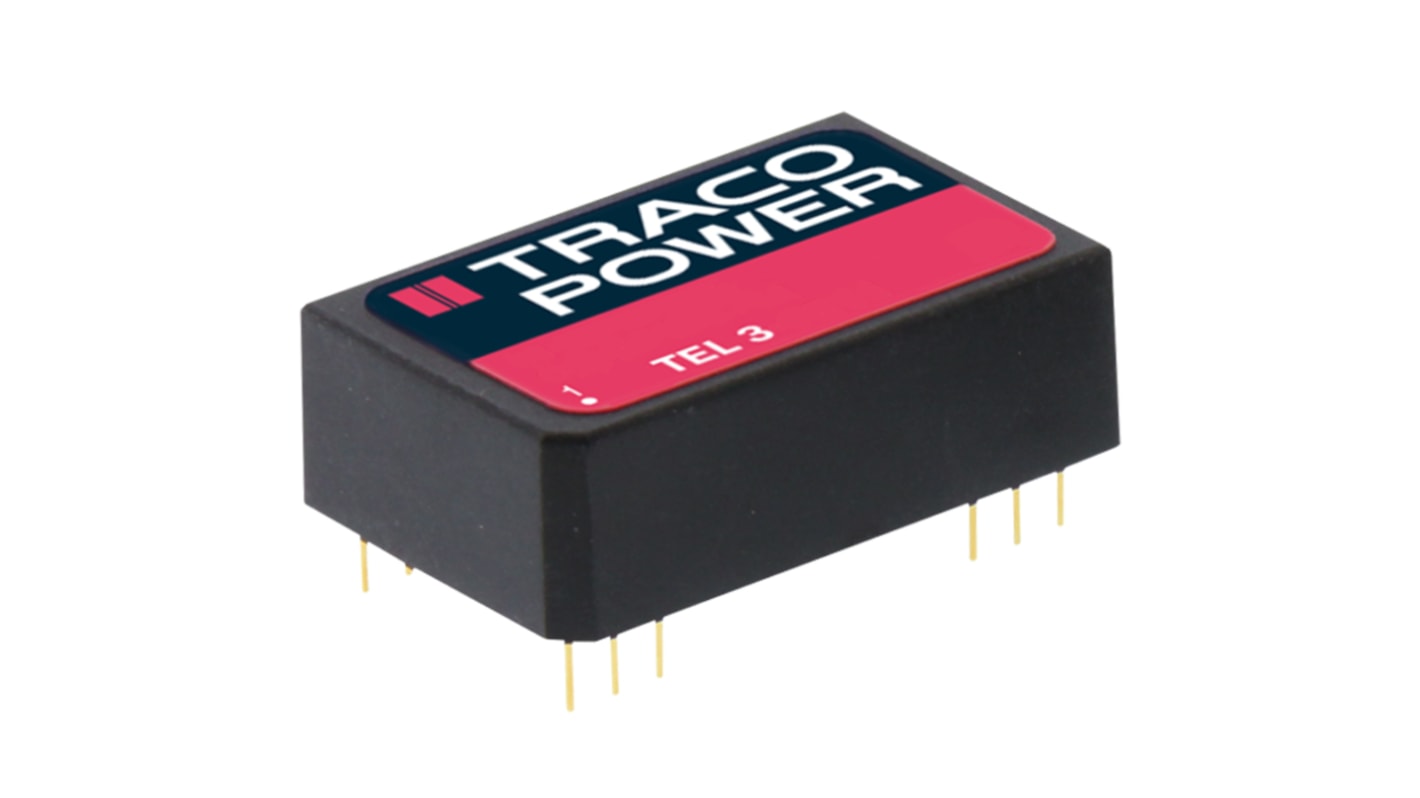

TRACOPOWER TEL 3 DC-DC Converter, 5V dc/ 600mA Output, 10 → 30 V dc Input, 3W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 124-7632
- Mfr. Part No.:
- TEL 3-2011
- Brand:
- TRACOPOWER
4 In stock - FREE next working day delivery available
Price 1 Tube of 10
£197.86
(exc. VAT)
£237.43
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
1 - 4 | £197.86 | £19.786 |
5 - 9 | £191.92 | £19.192 |
10 - 24 | £185.99 | £18.599 |
25 - 49 | £178.07 | £17.807 |
50 + | £170.16 | £17.016 |
*price indicative |
- RS Stock No.:
- 124-7632
- Mfr. Part No.:
- TEL 3-2011
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco 3W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEL-3 Series
The Traco Power TEL-3 series is a range of isolated, 3 Watt, DC-DC converters in a DIP-24 package. With their high efficiency these regulated converters allows operation temperature up to 71°C at full load and low output noise. The TEL-3 series feature wide input range and tightly regulated output voltage, which qualifies these DC-DC converters for many cost critical applications in industrial and consumer electronics.
Wide 2:1 and 3:1 input range
High efficiency up to 81%
DIL-24 plastic package
Indefinite short-circuit protection
I/O isolation 1500 VDC
Available with industry standard pinout (NP)
Operating temperature range –40°C to +85°C
High efficiency up to 81%
DIL-24 plastic package
Indefinite short-circuit protection
I/O isolation 1500 VDC
Available with industry standard pinout (NP)
Operating temperature range –40°C to +85°C
Standards
UL 60950-1, IEC/EN 60950-1
Approvals
UL, cUL, EN, IEC, CSA File No. 226037
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 10 → 30 V dc |
Power Rating | 3W |
Input Voltage Nominal | 20 V dc |
Output Current | 600mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Package | DIP 24 |
Isolation Voltage | 1.5kV dc |
Depth | 10.2mm |
Width | 20mm |
Length | 32mm |
Series | TEL 3 |
Load Regulation | ±0.5% |
Maximum Temperature | +85°C |
Efficiency | 76% |
Minimum Temperature | -40°C |
