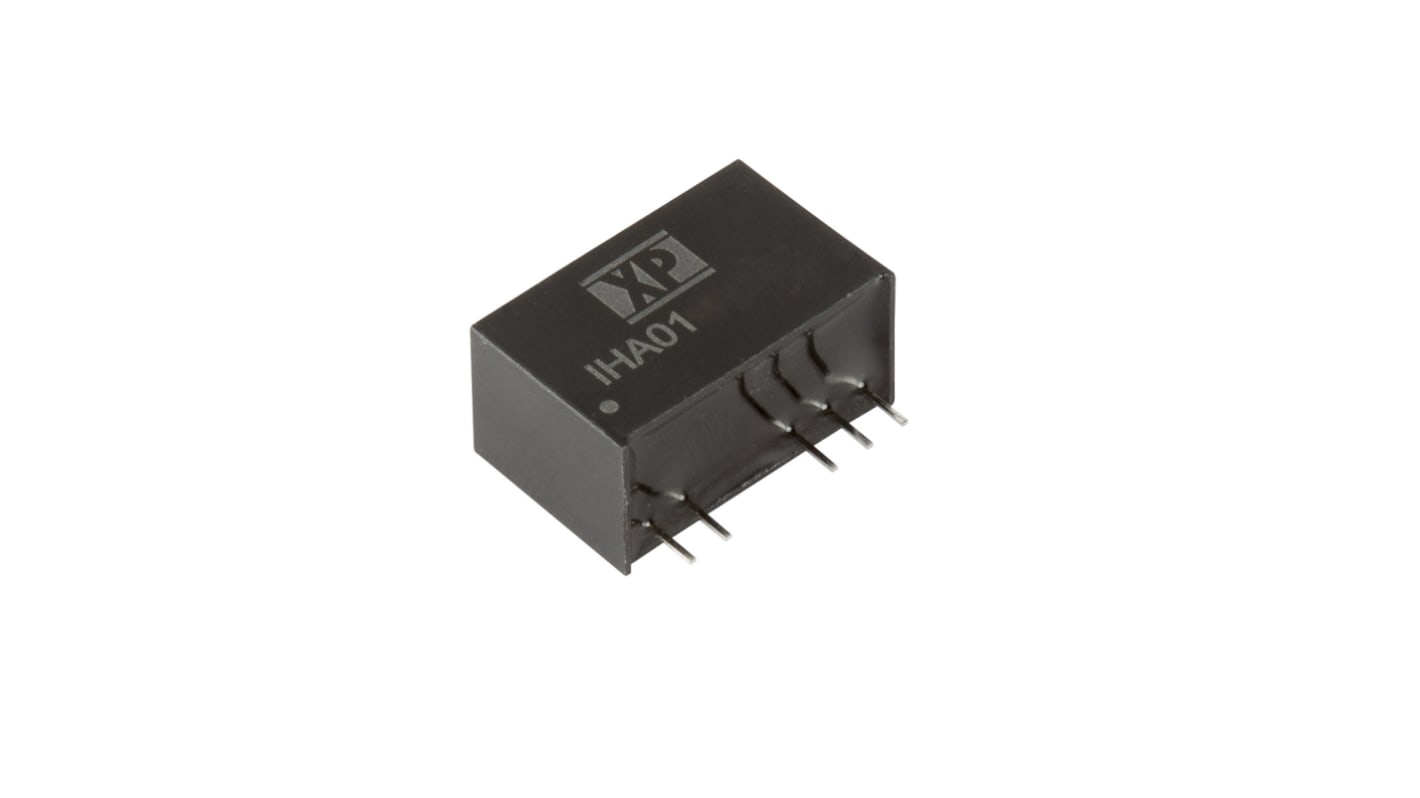

XP Power IHA01 DC-DC Converter, ±5V dc/ ±100mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +85°C Max Temp

RS Stock No.:: 124-4953
Mfr. Part No.:: IHA0124D05
Brand:: XP Power

XP Power IHA01 DC-DC Converter, ±5V dc/ ±100mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +85°C Max Temp

Available to back order for despatch when stock is available

Price Each

£6.24

(exc. VAT)

£7.49

(inc. VAT)

Units	Per unit
1 - 4	£6.24
5 - 9	£6.05
10 - 24	£5.87
25 - 49	£5.68
50 +	£5.49

RS Stock No.:: 124-4953
Mfr. Part No.:: IHA0124D05
Brand:: XP Power

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

XP Power Isolated DC-DC Converter - IHA Series

XP Power IHA01 Series of DC-DC Converters offers a highly isolated solution to a wide range of applications. IHA01 Series provides 250 V ac working voltage, with single and dual output options enabling installations into a wide variety of single phase environments.
The IHA01 Series has been designed with new and existing applications in mind. XP Power has been designed utilising the industry standard SIP7 Package, making the IHA01 Series suitable for new or existing upgrades.

Features and Benefits
High Isolation of 6000 V, with working voltage of 250V.
Offers single and dual output options.
Suitable for new and existing applications.
Utilises industry standard SIP 7 Package.
Wide operating range, with a full load of 85°C.
Suitable for use with MOSFET and IGBT Drives, thanks to bipolar outputs.
MTBF rating of 2.5 MHrs.

XP Power Isolated DC-DC Converters

Specifications

Attribute	Value
Output Voltage	±5V dc
Input Voltage Range	21.6 → 26.4 V dc
Power Rating	1W
Input Voltage Nominal	24 V dc
Output Current	±100mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	SIP 7
Isolation Voltage	6kV dc
Width	9.8mm
Length	19.5mm
Depth	12.5mm
Series	IHA01
Load Regulation	0.1
Minimum Temperature	-40°C
Standards Met	EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F
Maximum Temperature	+85°C
