Recom RPA30-AW DC/DC Converter, 5V dc/ 6 A, 36V dc Input, 9V Input 30 W, Through Hole, 56 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£52.76

(exc. VAT)

£63.31

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 10 unit(s) shipping from 17 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£52.76
5 - 9£51.18
10 - 24£49.60
25 - 49£48.01
50 +£46.43

*price indicative

RS Stock No.:
124-4221
Mfr. Part No.:
RPA30-2405SAW/P
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Product Type

DC/DC Converter

Output Voltage 1

5V dc

Minimum Input Voltage

9V

Maximum Input Voltage

36V dc

Output Current 1

6A

Mount Type

Through Hole

Input Ratio

4:1

Number of Outputs

1

MTBF

5888000h

Output Voltage Adjustment Range

10 %

Number of Pins

6

Isolation Voltage

1.6kV dc

Package Type

DIP

Maximum Output Power

30W

Standards/Approvals

No

Length

25.4mm

Series

RPA30-AW

Width

25.4mm

Depth

10.2mm

Efficiency

89%

Maximum Operating Temperature

56°C

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TH

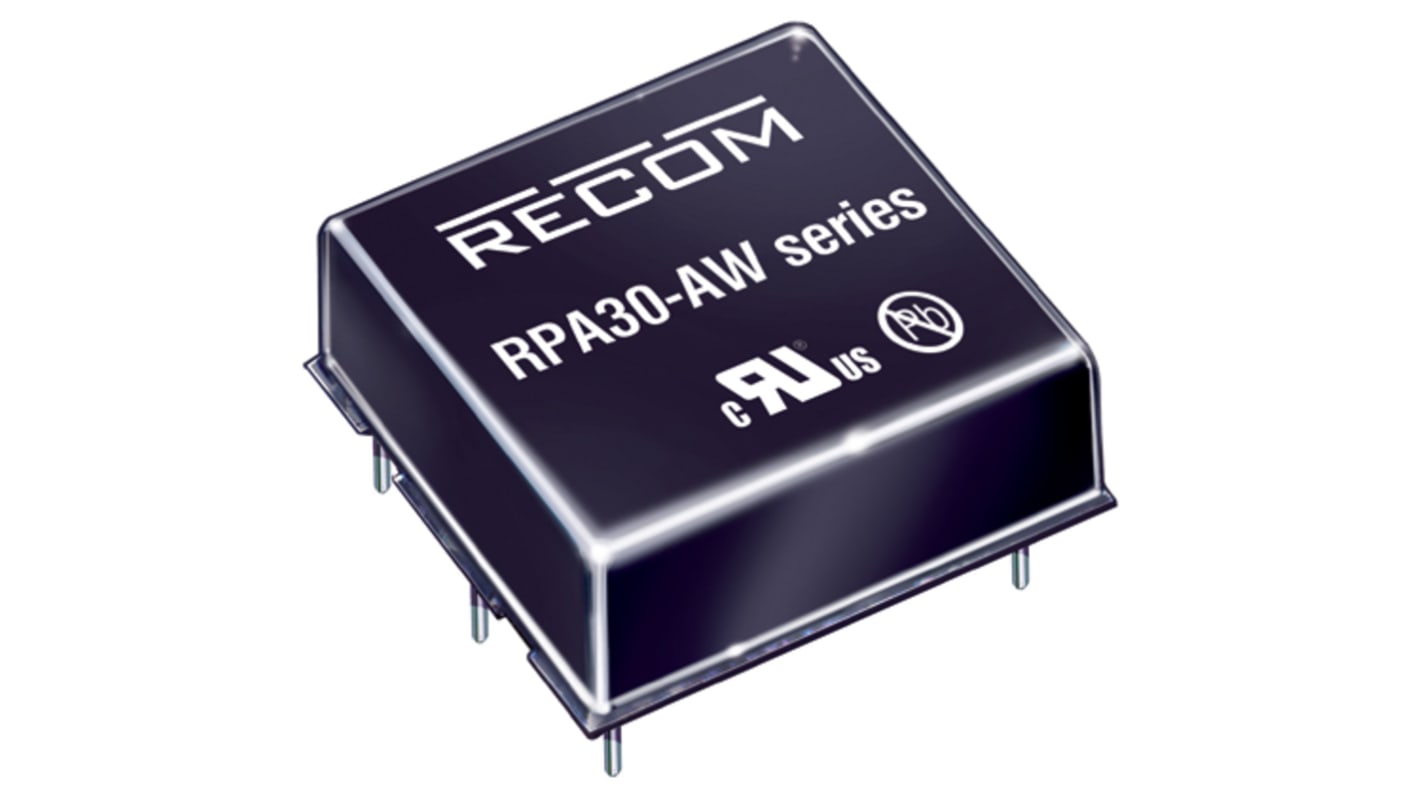

RECOM DC-DC Converter, Pi-Type Internal Input Filter, 89% Efficiency - RPA30-AW Series - RPA30-2405SAW/P


Looking for a Compact power distribution solution for your PCB-linked parts? Go for this small-but-mighty DC-DC converter from RECOM. Thanks to a 30W power rating, it's just the thing for heavy-duty applications. The unit steps down 24V inputs and, through its integrated Pi-type filter, cleans out ripple to deliver a stable and noiseless 5V output. For additional safety, it puts up a 1.6kV isolation voltage barrier, ensuring you don't GET caught unawares by sudden power surges. The package measures just 25.4 (L) x 25.4 (W) x 10.2mm (H) without a heatsink, so it fits right into tight setups.

Features & Benefits


• Efficiency of 89% for increased productivity and minimal energy loss

• Anodized aluminium alloy case for durability and corrosion resistance

• Continuous overvoltage and short-circuit protection to prevent damage and electric shocks

• Safe to use in a wide operating temperature range between -55°C and +125°C

• Through-hole mounting achieves a secure, vibration-proof hold on the circuit board

Applications


• Process and packaging equipment

• Robotics and automation systems

• Transportation industry

How reliable is this converter?


This unit's mean time between failures of 5,888,000 hours shows that you can depend on it for long-term performance.
