Recom RS6 DC/DC Converter, 5V dc/ 1.2 A, 36V dc Input, 18V Input 6 W, Through Hole, 75 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 124-4211
- Distrelec Article No.:
- 301-13-076
- Mfr. Part No.:
- RS6-2405S
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£14.30
(exc. VAT)
£17.16
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 12 unit(s) ready to ship
- Plus 2 unit(s) shipping from 25 August 2026
- Plus 22 unit(s) shipping from 23 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £14.30 |
| 5 - 9 | £13.89 |
| 10 - 24 | £13.46 |
| 25 - 49 | £13.01 |
| 50 + | £12.60 |
*price indicative
- RS Stock No.:
- 124-4211
- Distrelec Article No.:
- 301-13-076
- Mfr. Part No.:
- RS6-2405S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 36V dc | |
| Minimum Input Voltage | 18V | |
| Output Current 1 | 1.2A | |
| Mount Type | Through Hole | |
| MTBF | 1776000h | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 10 % | |
| Isolation Voltage | 1.6kV dc | |
| Number of Pins | 8 | |
| Package Type | SIP | |
| Maximum Output Power | 6W | |
| Width | 9.2mm | |
| Depth | 11.1mm | |
| Standards/Approvals | No | |
| Series | RS6 | |
| Length | 21.8mm | |
| Efficiency | 87% | |
| Maximum Operating Temperature | 75°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 36V dc | ||
Minimum Input Voltage 18V | ||
Output Current 1 1.2A | ||
Mount Type Through Hole | ||
MTBF 1776000h | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 10 % | ||
Isolation Voltage 1.6kV dc | ||
Number of Pins 8 | ||
Package Type SIP | ||
Maximum Output Power 6W | ||
Width 9.2mm | ||
Depth 11.1mm | ||
Standards/Approvals No | ||
Series RS6 | ||
Length 21.8mm | ||
Efficiency 87% | ||
Maximum Operating Temperature 75°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW

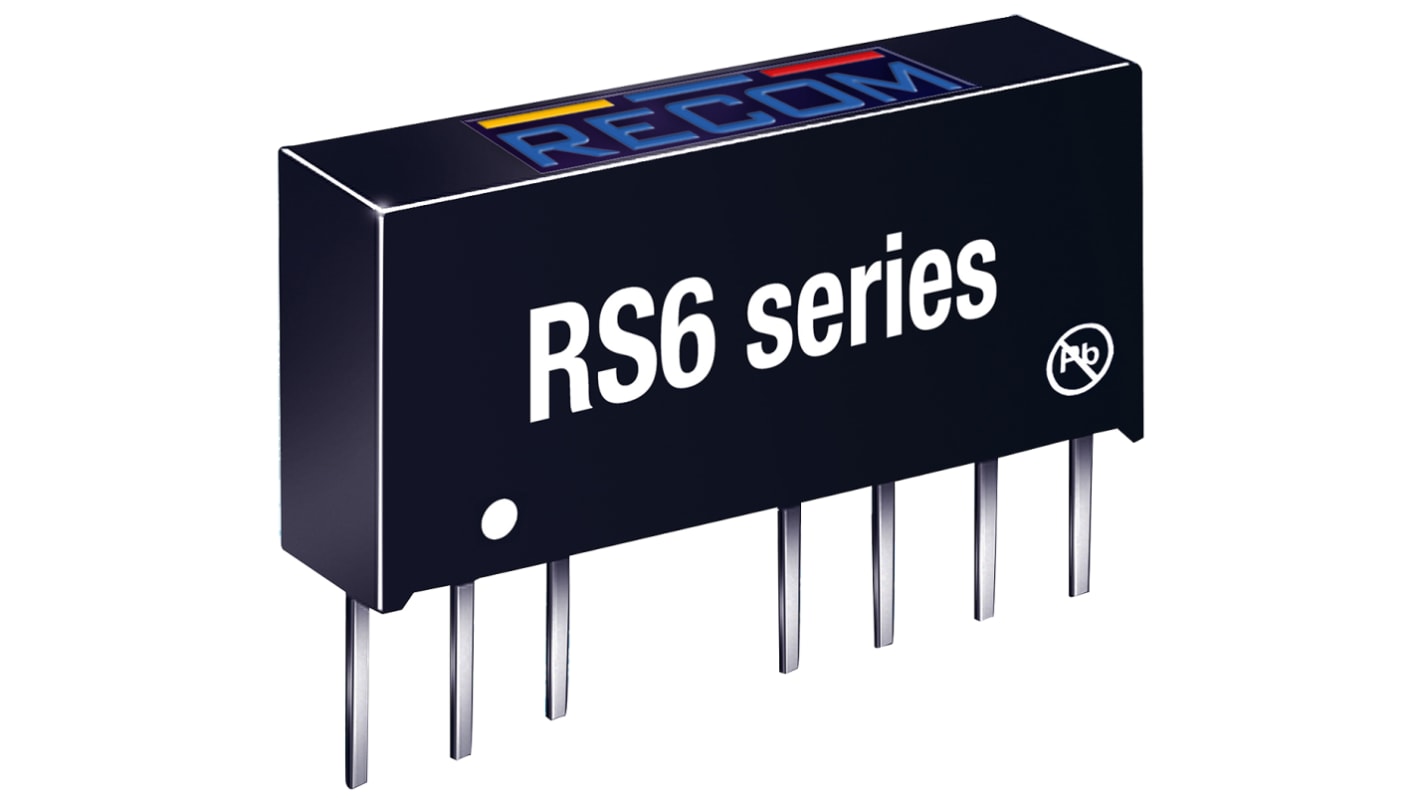

Recom RS6 Series Isolated DC-DC Converter
The RS6 Series offers you high power density wide input voltage range. This converter is Ideal for high density power supply designs in demanding industrial applications, test and metering and battery powered applications.
Features and Benefits
High power density
High efficiency
CB report
Ideal for areas with limited installation space
Recom Isolated DC/DC Converter
Standards
EN 62368-1 CB, IEC/EN 60950-1
