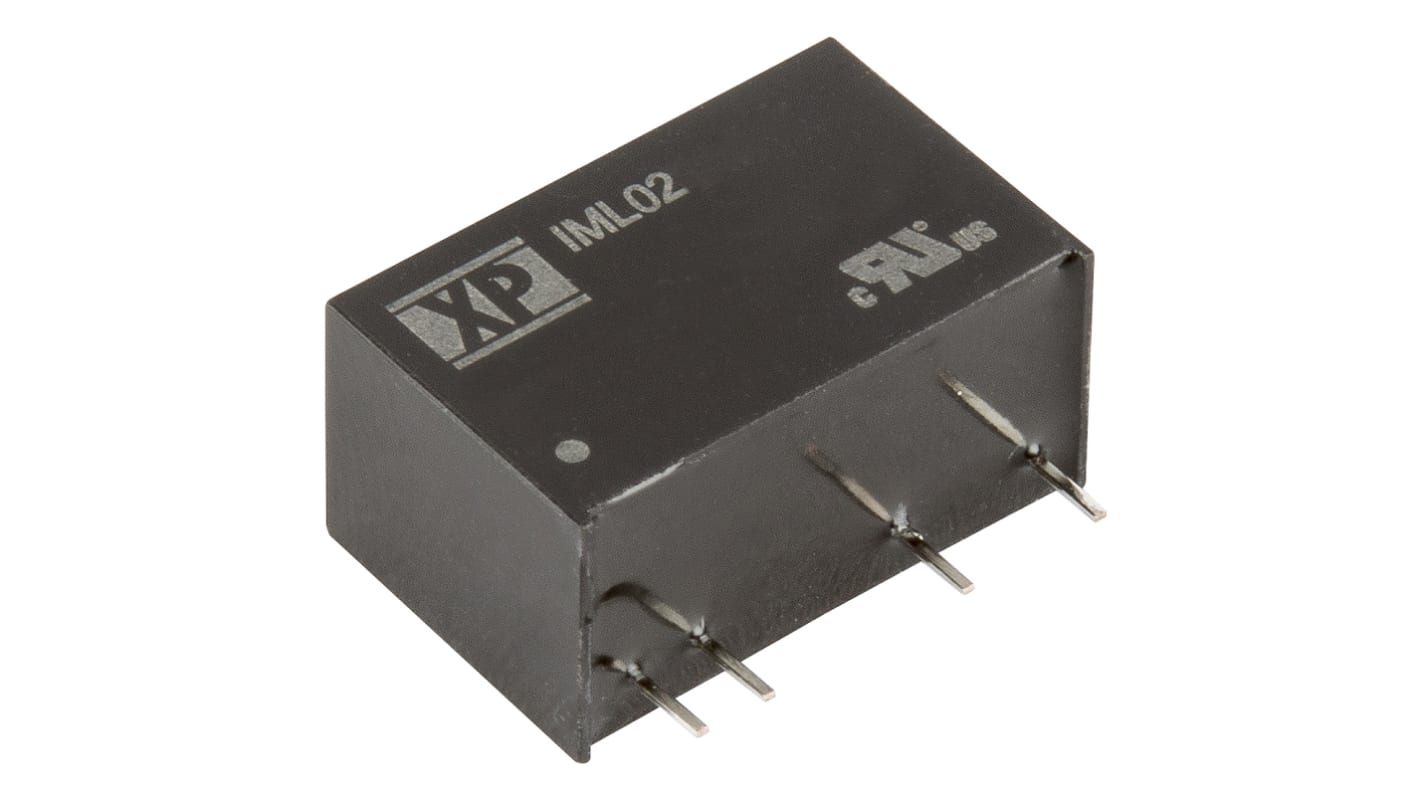

XP Power IML02 DC-DC Converter, ±15V dc/ ±66mA Output, 10.8 → 13.2 V dc Input, 2W, Through Hole, +85°C Max Temp

RS Stock No.:: 124-0968
Mfr. Part No.:: IML0212D15
Brand:: XP Power

XP Power IML02 DC-DC Converter, ±15V dc/ ±66mA Output, 10.8 → 13.2 V dc Input, 2W, Through Hole, +85°C Max Temp

Bulk discount available

Price Each

£7.18

(exc. VAT)

£8.62

(inc. VAT)

Available to back order for despatch 17/03/2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 - 4	£7.18
5 - 9	£6.96
10 - 24	£6.75
25 - 49	£6.53
50 +	£6.32

RS Stock No.:: 124-0968
Mfr. Part No.:: IML0212D15
Brand:: XP Power

IML02 Series Datasheet

Attribute	Value
Output Voltage	±15V dc
Input Voltage Range	10.8 → 13.2 V dc
Power Rating	2W
Input Voltage Nominal	12 V dc
Output Current	±66mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	SIP 7
Isolation Voltage	4kV ac
Depth	12.5mm
Length	19.5mm
Width	9.8mm
Series	IML02
Load Regulation	0.1
Medical Approved	Yes
Standards Met	CB IEC60601-1, CSA C22.2 No. 60601-1, EN 55011, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F, TUV EN 60601-1, UL ANSI/AAMI ES60601-1
Maximum Temperature	+85°C
Minimum Temperature	-40°C

XP Power IML02 DC-DC Converter, ±15V dc/ ±66mA Output, 10.8 → 13.2 V dc Input, 2W, Through Hole, +85°C Max Temp

FREE delivery for orders over £50.00

XP Power - IML02 Series of Isolated DC-DC Converters
