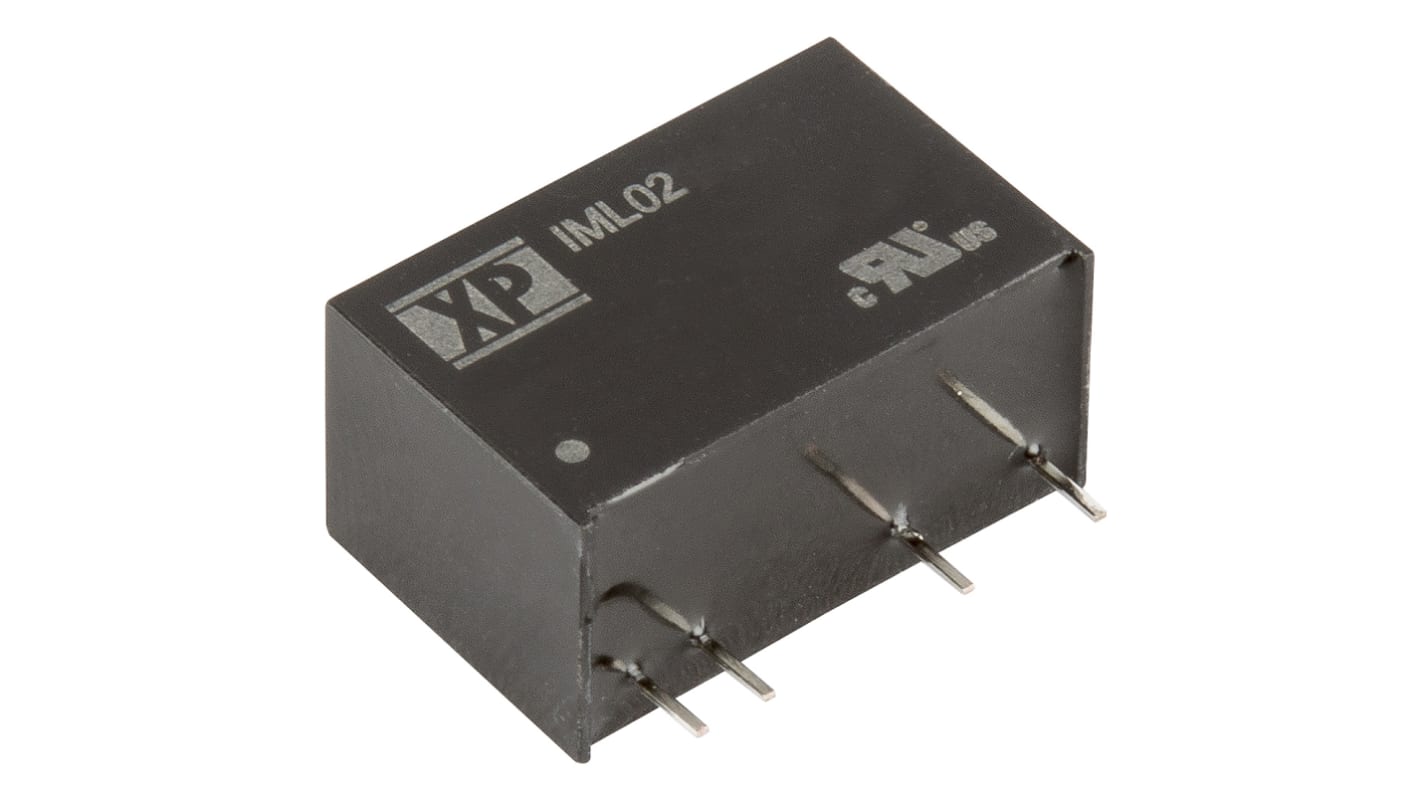

XP Power IML02 DC-DC Converter, 9V dc/ 222mA Output, 10.8 → 13.2 V dc Input, 2W, Through Hole, +85°C Max Temp

View this category
Bulk discount available

Subtotal (1 unit)*

£7.13

(exc. VAT)

£8.56

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 07 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£7.13
5 - 9£6.91
10 - 24£6.70
25 - 49£6.48
50 +£6.27

*price indicative

RS Stock No.:
124-0961
Mfr. Part No.:
IML0212S09
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

9V dc

Input Voltage Range

10.8 → 13.2 V dc

Power Rating

2W

Input Voltage Nominal

12 V dc

Output Current

222mA

Mounting Type

Through Hole

Isolated

Yes

Number of Outputs

1

Package

SIP 7

Isolation Voltage

4kV ac

Length

19.5mm

Width

9.8mm

Depth

12.5mm

Series

IML02

Load Regulation

0.1

Maximum Temperature

+85°C

Medical Approved

Yes

Minimum Temperature

-40°C

Standards Met

CB IEC60601-1, CSA C22.2 No. 60601-1, EN 55011, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F, TUV EN 60601-1, UL ANSI/AAMI ES60601-1
