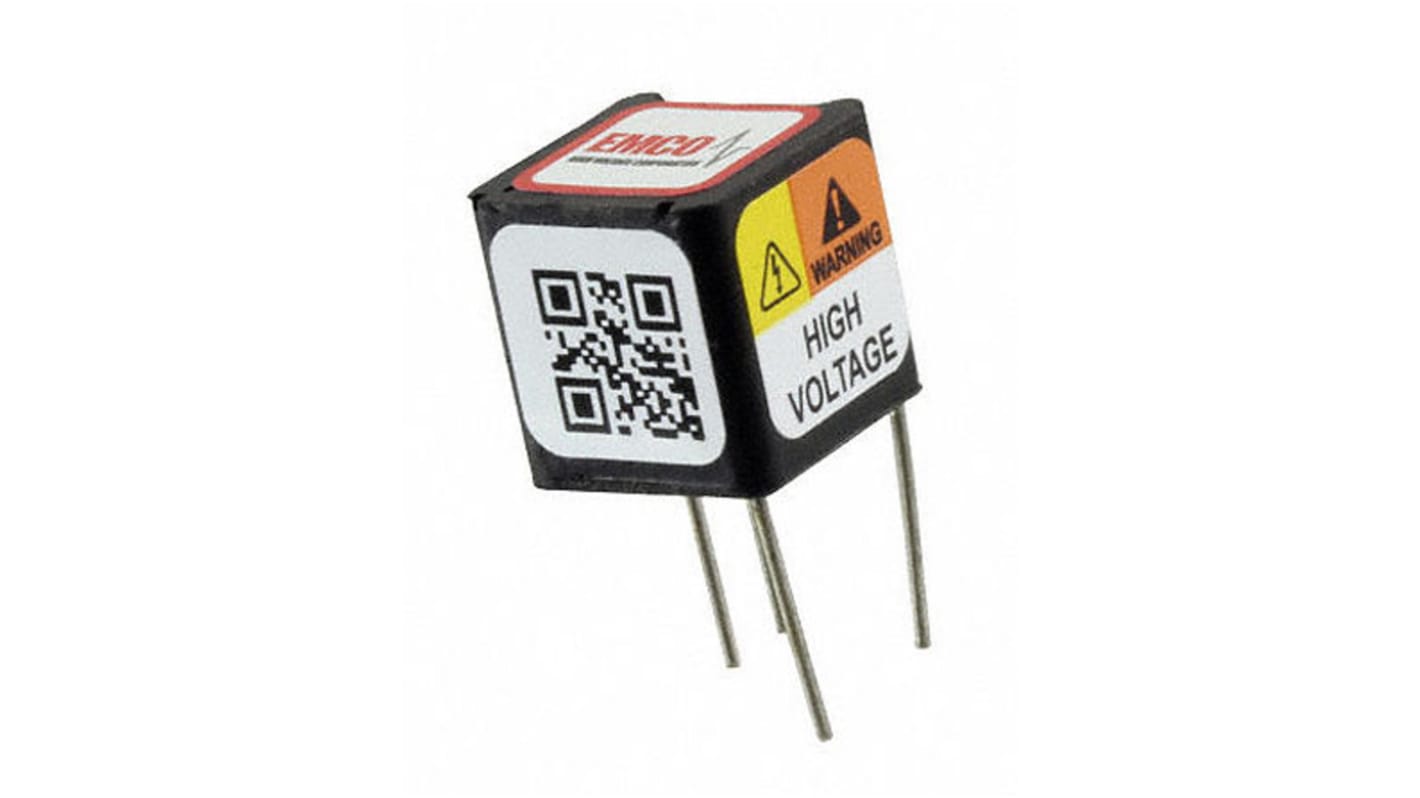

XP Power Q DC/DC Converter, 1kV/ 500 μA, 5V Input, 5V Input, Through Hole, 0.5 W, 70 °C Max Temp -25 °C Min Temp

RS Stock No.:: 123-8436
Mfr. Part No.:: Q10-5
Brand:: XP Power

XP Power Q DC/DC Converter, 1kV/ 500 μA, 5V Input, 5V Input, Through Hole, 0.5 W, 70 °C Max Temp -25 °C Min Temp

Subtotal (1 unit)*

£163.70

(exc. VAT)

£196.44

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

1 unit(s) shipping from 04 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£163.70

*price indicative

RS Stock No.:: 123-8436
Mfr. Part No.:: Q10-5
Brand:: XP Power

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	XP Power
	Output Voltage 1	1kV
	Product Type	DC/DC Converter
	Maximum Input Voltage	5V
	Minimum Input Voltage	5V
	Output Current 1	500μA
	Mount Type	Through Hole
	MTBF	3000000h
	Number of Outputs	5
	Ripple and Noise	0.25% Pk-Pk
	Output Voltage Adjustment Range	±10 %
	Isolation Voltage	500V
	Maximum Output Power	0.5W
	Series	Q
	Width	12.7mm
	Standards/Approvals	No
	Weight	4.3g
	Length	12.7mm
	Depth	12.7mm
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C

	Select all
	Brand XP Power
	Output Voltage 1 1kV
	Product Type DC/DC Converter
	Maximum Input Voltage 5V
	Minimum Input Voltage 5V
	Output Current 1 500μA
	Mount Type Through Hole
	MTBF 3000000h
	Number of Outputs 5
	Ripple and Noise 0.25% Pk-Pk
	Output Voltage Adjustment Range ±10 %
	Isolation Voltage 500V
	Maximum Output Power 0.5W
	Series Q
	Width 12.7mm
	Standards/Approvals No
	Weight 4.3g
	Length 12.7mm
	Depth 12.7mm
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C

Datasheet

COO (Country of Origin):: US

XP Power Isolated DC to High Voltage DC Converters Q Series

The Q Series DC to high voltage DC converters are ultra miniature and highly reliable. The converter is ideal for applications requiring small size and weight.

Features and Benefits

Ultra miniature case size

Reliable

External components not required

Low ripple and EMI/RFI

Input/output proportion

Input/output isolation

Low leakage current

Coupling capacitance low input/output

Short circuit protection

Control pin

Applications:

Avalanche photodiodes

Photomultiplier tubes

Light sources

Piezo devices

Sustaining Ion pumps

Electrophoresis

Printers

Igniters

Capacitor charging

Isolated DC to High Voltage DC Converters

Standards

UL, RoHS
