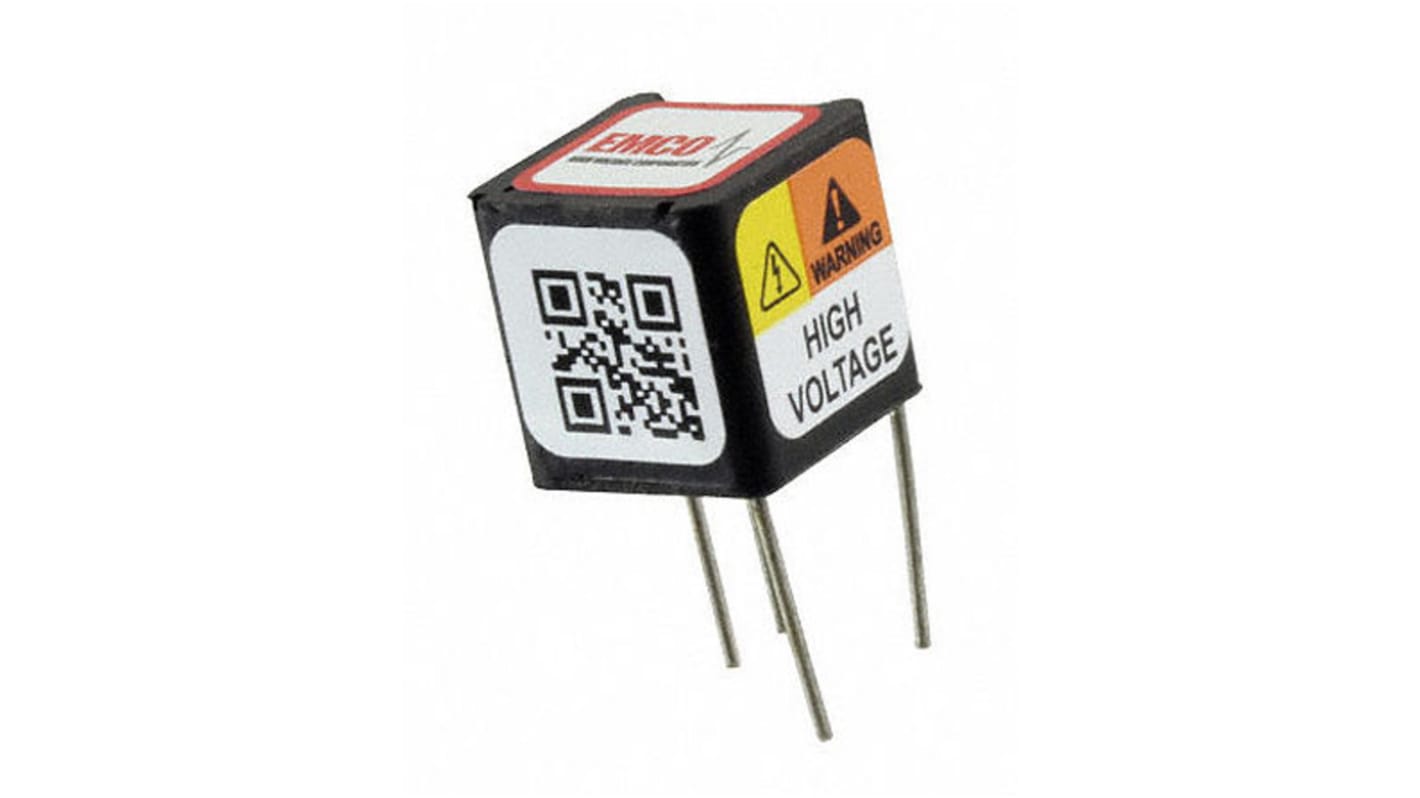

XP Power Q DC/DC Converter, 900V dc/ 556 μA, 12V dc Input, 12V dc Input, Through Hole, 0.5 W, 70 °C Max Temp -25 °C Min

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£162.39

(exc. VAT)

£194.87

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
1 - 4£162.39
5 - 9£157.52
10 - 24£152.64
25 - 49£147.77
50 +£142.90

*price indicative

RS Stock No.:
123-8434
Mfr. Part No.:
Q09-12
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage 1

900V dc

Product Type

DC/DC Converter

Minimum Input Voltage

12V dc

Maximum Input Voltage

12V dc

Output Current 1

556μA

Mount Type

Through Hole

MTBF

3000000h

Number of Outputs

1

Output Voltage Adjustment Range

±10 %

Ripple and Noise

0.25% Pk-Pk

Isolation Voltage

500V dc

Maximum Output Power

0.5W

Series

Q

Width

12.7mm

Depth

12.7mm

Standards/Approvals

No

Weight

4.3g

Length

12.7mm

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

70°C

COO (Country of Origin):
US

XP Power Isolated DC to High Voltage DC Converters Q Series


The Q Series DC to high voltage DC converters are ultra miniature and highly reliable. The converter is ideal for applications requiring small size and weight.

Features and Benefits


Ultra miniature case size

Reliable

External components not required

Low ripple and EMI/RFI

Input/output proportion

Input/output isolation

Low leakage current

Coupling capacitance low input/output

Short circuit protection

Control pin

Applications:


Avalanche photodiodes

Photomultiplier tubes

Light sources

Piezo devices

Sustaining Ion pumps

Electrophoresis

Printers

Igniters

Capacitor charging

Isolated DC to High Voltage DC Converters


Standards

UL, RoHS
