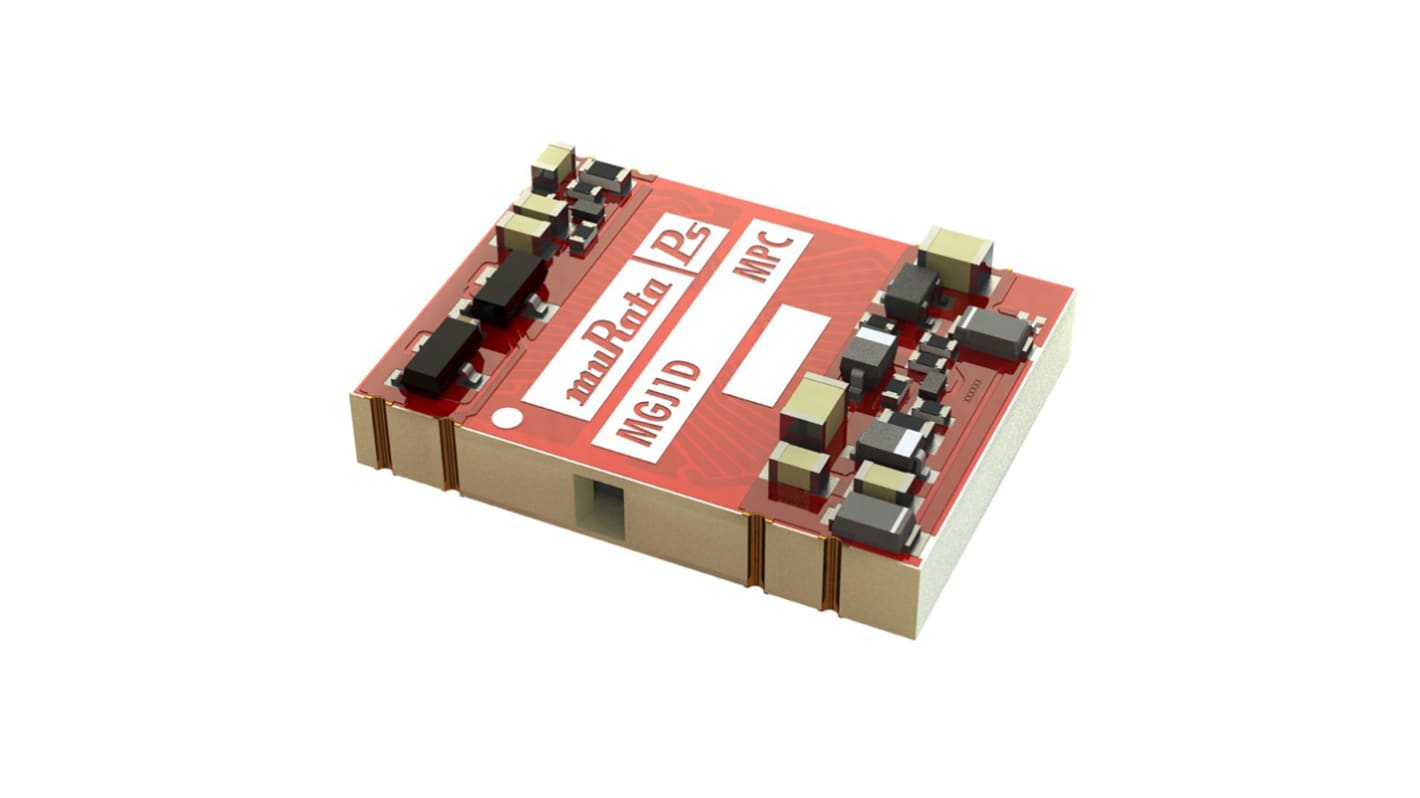

Murata Power Solutions MGJ1 DC-DC Converter, ±15V dc/ 50mA Output, 4.5 → 5.5 V dc Input, 1W, Surface Mount,

View all DC-DC Converters
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
123-4633
Mfr. Part No.:
MGJ1D051505MPC-R7
Brand:
Murata Power Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Murata Power Solutions

Output Voltage

±15V dc

Input Voltage Range

4.5 → 5.5 V dc

Power Rating

1W

Input Voltage Nominal

5 V dc

Output Current

50mA

Mounting Type

Surface Mount

Isolated

Yes

Number of Outputs

2

Isolation Voltage

5.7kV dc

Depth

4.41mm

Length

19.94mm

Width

14.99mm

Series

MGJ1

Load Regulation

Maximum of 0.5 (Output 2) %, Maximum of 8.1(Output 1) %

Minimum Temperature

-40°C

Maximum Temperature

+105°C

COO (Country of Origin):
GB

Murata MGJ Series Isolated DC-DC Converter


Murata MGJ Series of isolated DC-DC converters offer an ideal solution for "high side" & "low side" gate drive circuits for IGBTs & MOSFETS in bridge circuits. The MGJ Series offers a choice of asymmetric output voltages and enables your application to optimise drive levels for the best system efficiency.
The MGJ Series has been designed with high isolation requirements, so can be used within motor drives & inverters and offers long service & reliability.

Features and Benefits


Optimised bipolar output voltages for IGBT / MOSFET gate drives
Continuous barrier withstand voltage 3kVDC
Surface mount package
Ultra low coupling capacitance 15pF
5.7k V dc isolation test voltage


Murata Power Solutions - 0.75W to 15W
