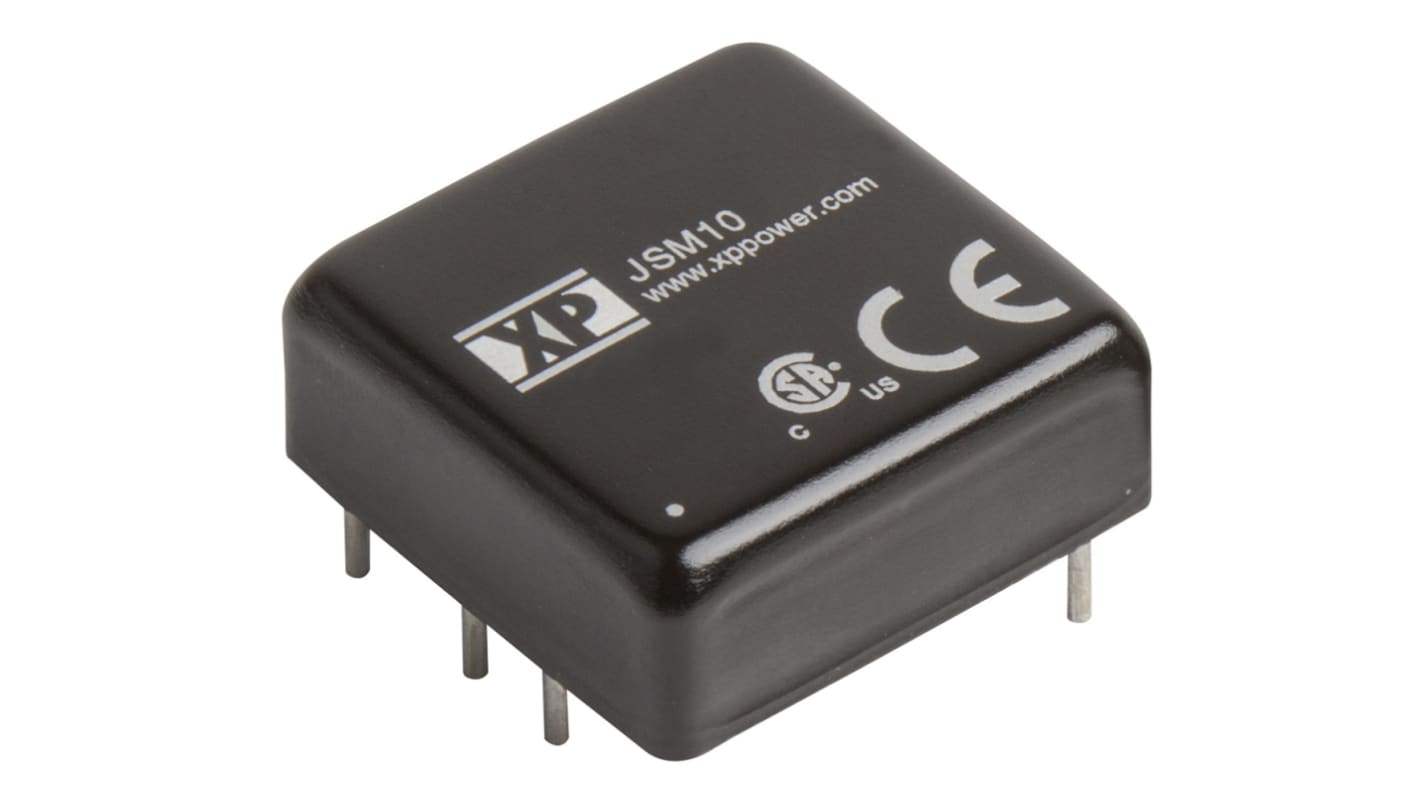

XP Power JSM10 DC-DC Converter, 12V dc/ 830mA Output, 9 → 18 V dc Input, 10W, Through Hole, +100°C Max Temp
- RS Stock No.:
- 123-1184
- Mfr. Part No.:
- JSM1012S12
- Brand:
- XP Power
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£16.70
(exc. VAT)
£20.04
(inc. VAT)
| Units | Per unit |
| 1 + | £16.70 |
- RS Stock No.:
- 123-1184
- Mfr. Part No.:
- JSM1012S12
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
XP Power - JSM10 Series of Isolated DC-DC Converters
The JSM10 series from XP Power offers a highly reliable range of regulated single and dual output, 10 W, isolated DC-DC converters. The series has been designed in a small 1” x 1” package, features 1500 VDC in isolation and meets all ITE safety approvals. These compact DC-DC converters also attribute a 2:1 input range and a wide -40 °C to +100 °C operating temperature range.
10 W, isolated DC-DC converters
2:1 input range
Regulated single and dual outputs
Small 1” x 1” package
1500 VDC in isolation
ITE safety approved
Wide -40 °C to +100 °C operating temperature range
2:1 input range
Regulated single and dual outputs
Small 1” x 1” package
1500 VDC in isolation
ITE safety approved
Wide -40 °C to +100 °C operating temperature range
XP Power - Isolated DC-DC Converters
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 9 → 18 V dc |
| Power Rating | 10W |
| Input Voltage Nominal | 12 V dc |
| Output Current | 830mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | 1 x 1 in |
| Isolation Voltage | 1.5kV dc |
| Width | 25.4mm |
| Depth | 10.16mm |
| Length | 25.4mm |
| Series | JSM10 |
| Load Regulation | ±0.5% |
| Standards Met | EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC60950-1, ITE Safety Approvals, MIL-HDBK-217F, UL/cUL60950-1 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +100°C |
