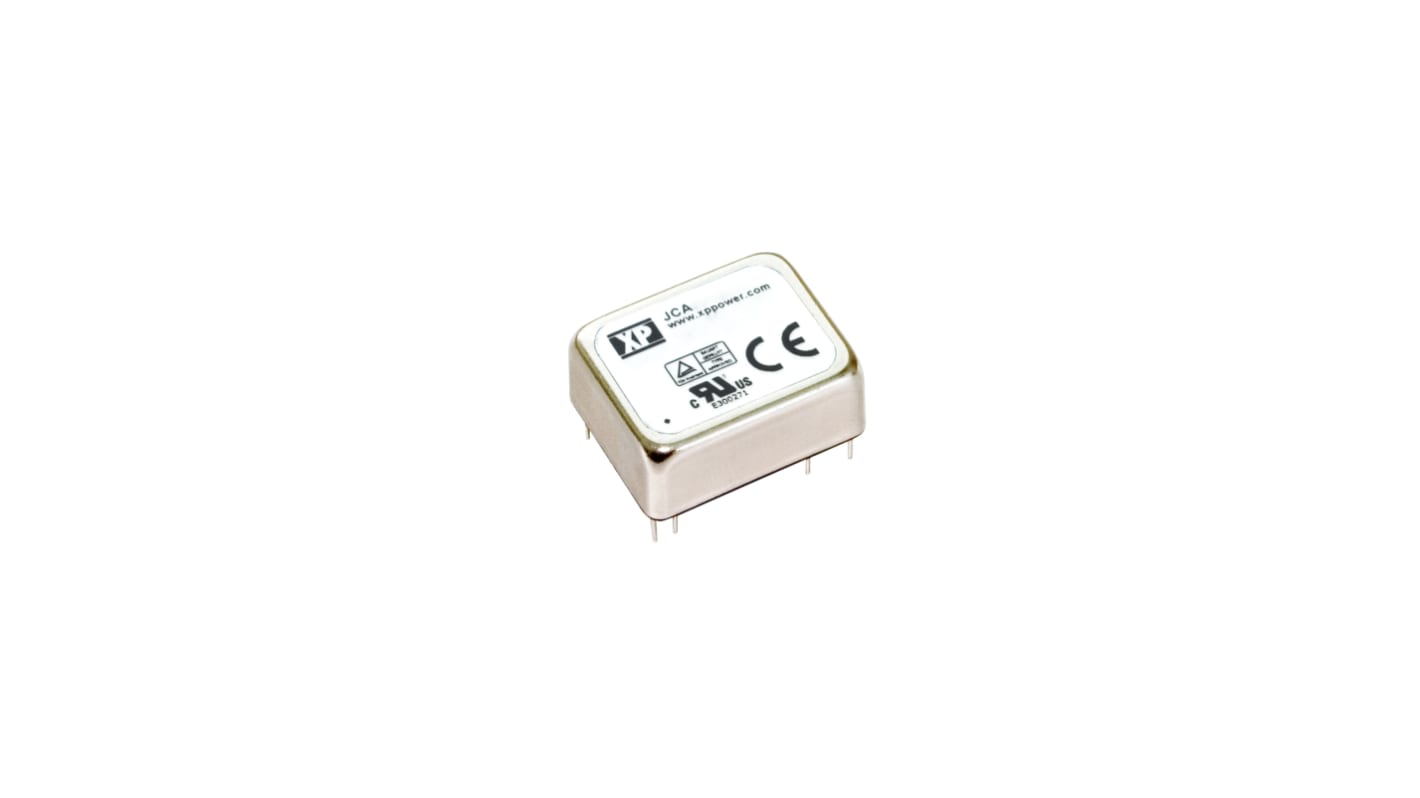

XP Power JCA DC/DC Converter, 3.3V dc/ 1.22 A, 36V dc Input, 18V Input 4 W, Through Hole, 100 °C Max Temp -40 °C Min

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£25.64

(exc. VAT)

£30.77

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
1 - 4£25.64
5 - 9£24.86
10 - 24£24.11
25 - 49£23.34
50 +£22.56

*price indicative

RS Stock No.:
122-8718
Mfr. Part No.:
JCA0424S03
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage 1

3.3V dc

Product Type

DC/DC Converter

Maximum Input Voltage

36V dc

Minimum Input Voltage

18V

Output Current 1

1.22A

Mount Type

Through Hole

Input Ratio

2:1

Number of Outputs

1

MTBF

1000000h

Isolation Voltage

1.5kV dc

Number of Pins

24

Package Type

DIP

Maximum Output Power

4W

Depth

10mm

Width

20.3mm

Standards/Approvals

No

Series

JCA

Length

25.4mm

Maximum Operating Temperature

100°C

Minimum Operating Temperature

-40°C

Efficiency

82%

XP Power - JCA 4/6 Series of DC-DC Converters


The JCA 4/6 series from XP Power offers a highly reliable range of single and dual output, 4/6 W, isolated DC-DC converters. The series has been designed in a 1.0” x 0.8” metal package, with an industry standard pin out and features a 2:1 input range. These Compact DC-DC converters also attribute a wide -40 °C to +100 °C operating temperature range and has been completely UL and TUV approved.

4/6 W, Isolated DC-DC converters

Single and dual output

2:1 input range

Compact 1.0” x 0.8” metal package

Wide -40 °C to +100 °C operating temperature range

Completely UL and TUV approved

XP Power Isolated DC-DC Converters
