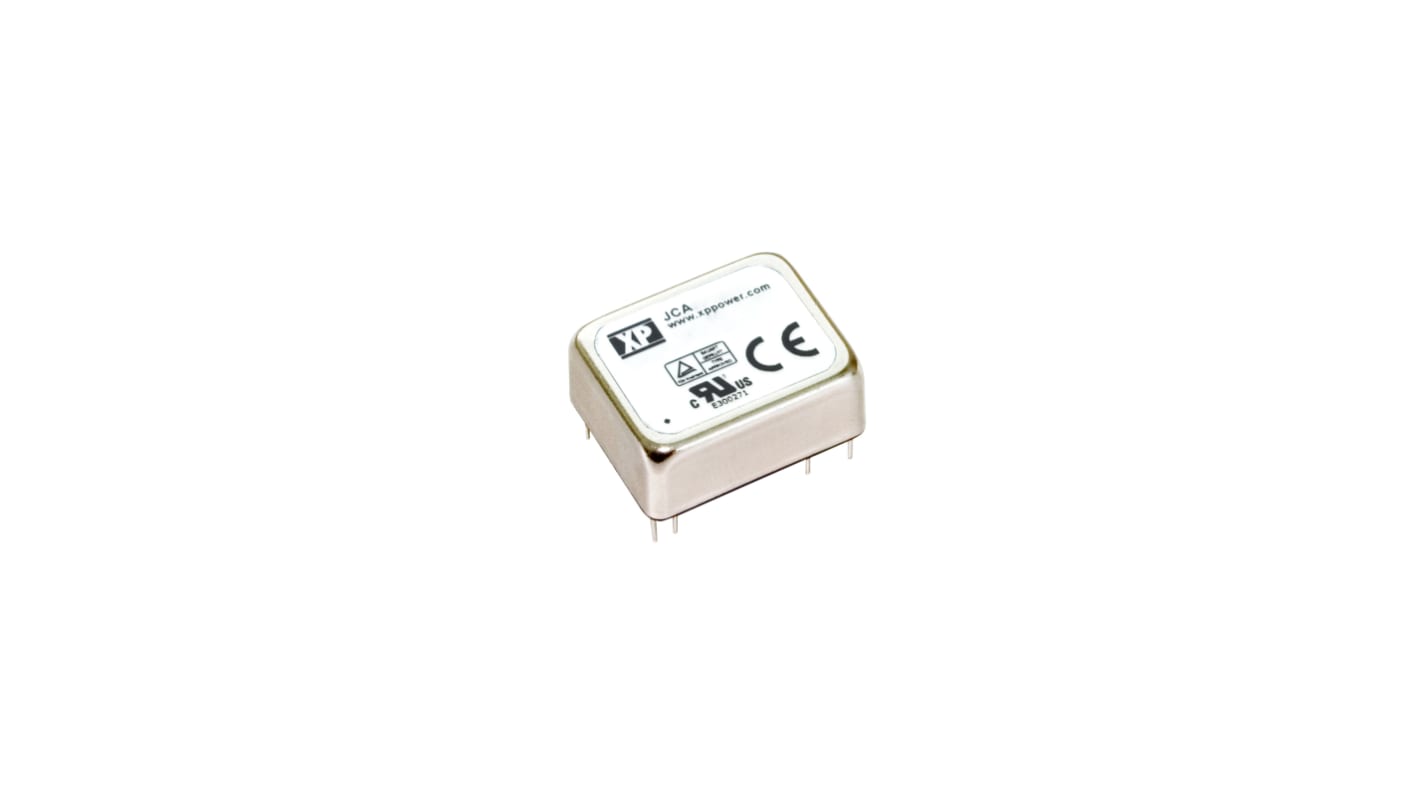

XP Power JCA DC-DC Converter, ±15V dc/ ±70mA Output, 18 → 36 V dc Input, 2W, Through Hole, +100°C Max Temp -40°C

RS Stock No.:: 122-8678
Mfr. Part No.:: JCA0224D03
Brand:: XP Power

XP Power JCA DC-DC Converter, ±15V dc/ ±70mA Output, 18 → 36 V dc Input, 2W, Through Hole, +100°C Max Temp -40°C

Bulk discount available

Price Each**

£16.35

(exc. VAT)

£19.62

(inc. VAT)

167 In stock - FREE next working day delivery available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 - 4	£16.35
5 - 9	£15.86
10 - 24	£15.36
25 - 49	£14.88
50 +	£14.39

**price indicative

RS Stock No.:: 122-8678
Mfr. Part No.:: JCA0224D03
Brand:: XP Power

Datasheet

Attribute	Value
Output Voltage	±15V dc
Input Voltage Range	18 → 36 V dc
Power Rating	2W
Input Voltage Nominal	24 V dc
Output Current	±70mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	DIP 24
Isolation Voltage	1.5kV dc
Length	25.4mm
Width	20.3mm
Depth	10mm
Series	JCA
Load Regulation	±1%
Standards Met	CE LVD, CSA C22.2 No. 60950-1-03, EN 55022, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F, TUV, UL, UL 60950-1
Maximum Temperature	+100°C
Efficiency	73%
Minimum Temperature	-40°C

XP Power JCA DC-DC Converter, ±15V dc/ ±70mA Output, 18 → 36 V dc Input, 2W, Through Hole, +100°C Max Temp -40°C

FREE delivery for orders over £50.00

XP Power - JCA 2/3 Series of DC-DC Converters
