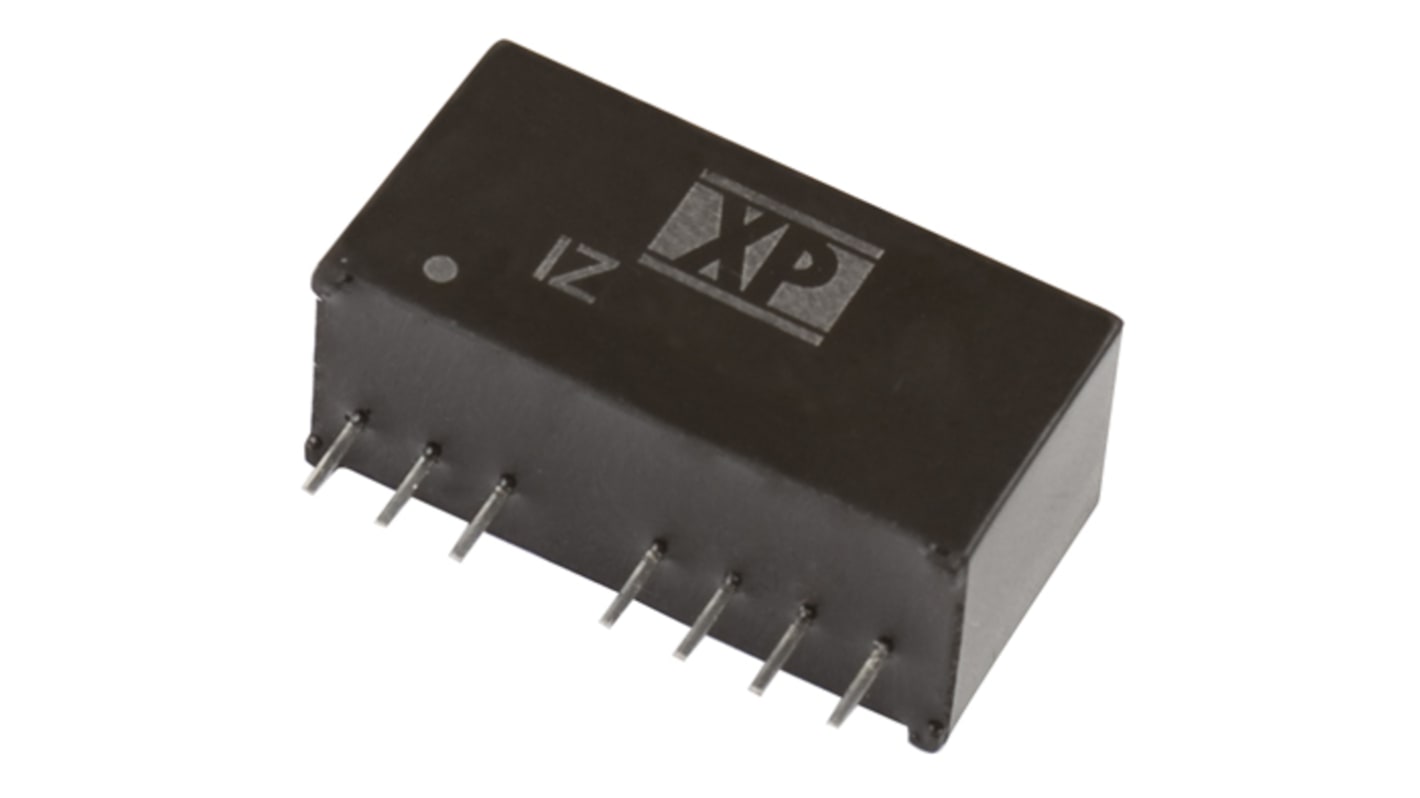

XP Power IZ DC-DC Converter, ±12V dc/ ±125mA Output, 8 → 36 V dc Input, 3W, Through Hole, +100°C Max Temp -40°C

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£12.65

(exc. VAT)

£15.18

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 14 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£12.65
5 - 9£12.28
10 - 24£11.89
25 - 49£11.52
50 +£11.13

*price indicative

RS Stock No.:
122-8655
Distrelec Article No.:
302-24-581
Mfr. Part No.:
IZ2412S
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

±12V dc

Input Voltage Range

8 → 36 V dc

Power Rating

3W

Input Voltage Nominal

24 V dc

Output Current

±125mA

Mounting Type

Through Hole

Isolated

Yes

Number of Outputs

2

Package

SIP

Isolation Voltage

1.6kV dc

Depth

11.1mm

Width

9.2mm

Length

21.85mm

Series

IZ

Load Regulation

±1%

Minimum Temperature

-40°C

Maximum Temperature

+100°C

COO (Country of Origin):
TW

XP Power - IZ Series of Isolated DC-DC Converters


The IZ series from XP Power offers a highly reliable range of regulated single and dual output, 3 W, isolated DC-DC converters. The series features 1600 VDC in isolation and has been designed in an industry standard SIP package. These compact DC-DC converters also attribute a 2:1 input range, continuous short circuit protection and a wide -40 °C to +100 °C operating temperature range, making them the perfect choice for a host of commercial and industrial applications.

3 W, Isolated DC-DC converters
1600 VDC in isolation
Regulated single and dual output
2:1 Input range
SIP package
Remote on/off
Wide -40 °C to +100 °C operating temperature range
Continuous short circuit protection
