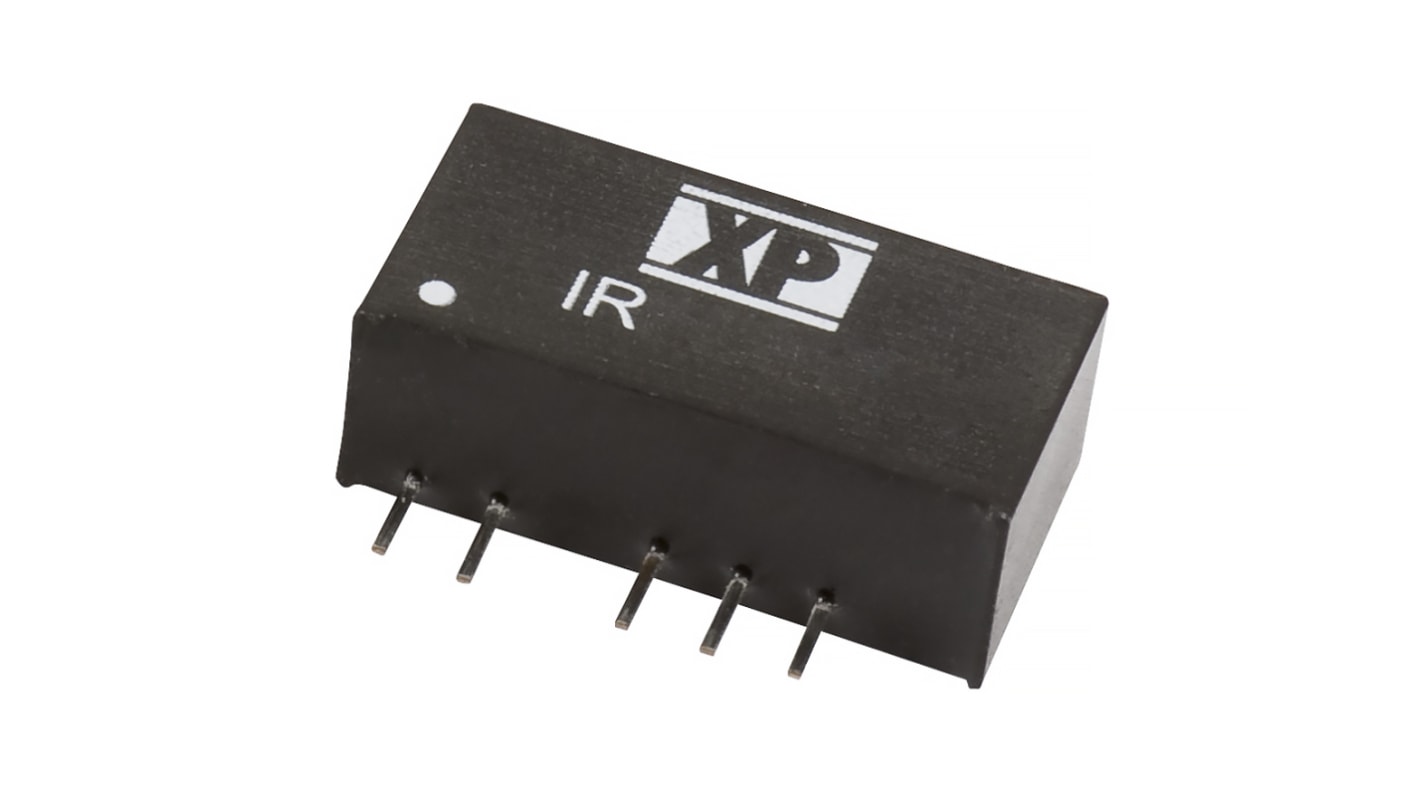

XP Power IR DC-DC Converter, ±12V dc/ ±125mA Output, 10.8 → 13.2 V dc Input, 3W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 122-8569
- Mfr. Part No.:
- IR1212S
- Brand:
- XP Power
Subtotal (1 unit)*
£8.89
(exc. VAT)
£10.67
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 48 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.89 |
*price indicative
- RS Stock No.:
- 122-8569
- Mfr. Part No.:
- IR1212S
- Brand:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | ±12V dc | |
| Input Voltage Range | 10.8 → 13.2 V dc | |
| Power Rating | 3W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | ±125mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | SIP | |
| Isolation Voltage | 1kV dc | |
| Width | 7.2mm | |
| Depth | 10mm | |
| Length | 19.5mm | |
| Series | IR | |
| Load Regulation | Maximum of 3% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage ±12V dc | ||
Input Voltage Range 10.8 → 13.2 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 12 V dc | ||
Output Current ±125mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP | ||
Isolation Voltage 1kV dc | ||
Width 7.2mm | ||
Depth 10mm | ||
Length 19.5mm | ||
Series IR | ||
Load Regulation Maximum of 3% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
