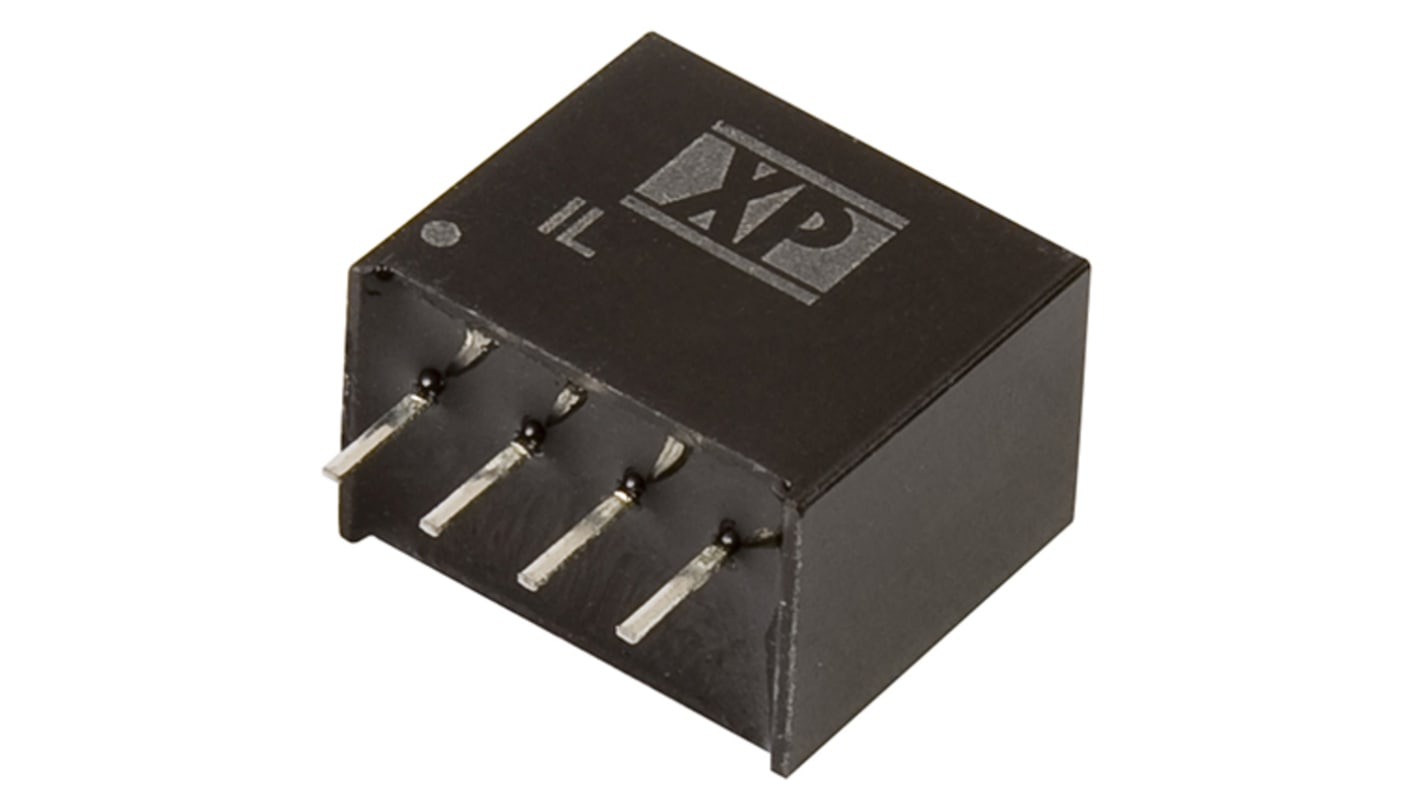

XP Power IL DC/DC Converter, 12V dc/ 0.17 A, 26.4V dc Input, 21.6V Input 2 W, Through Hole, 100 °C Max Temp -20 °C Min

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£7.29

(exc. VAT)

£8.75

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 30 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£7.29
5 - 9£7.07
10 - 24£6.85
25 - 49£6.62
50 +£6.41

*price indicative

Packaging Options:
RS Stock No.:
122-6969
Distrelec Article No.:
301-83-596
Mfr. Part No.:
IL2412S
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage 1

12V dc

Product Type

DC/DC Converter

Maximum Input Voltage

26.4V dc

Minimum Input Voltage

21.6V

Output Current 1

0.17A

Mount Type

Through Hole

Number of Outputs

1

MTBF

1210000h

Number of Pins

4

Isolation Voltage

1kV dc

Package Type

SIP

Maximum Output Power

2W

Series

IL

Standards/Approvals

No

Width

7.5mm

Length

11.68mm

Depth

10.16mm

Maximum Operating Temperature

100°C

Minimum Operating Temperature

-20°C

Efficiency

84%

XP Power - IL Series of Isolated DC-DC Converters


The IL series from XP Power offers a highly reliable range of single output, 2 W, isolated DC-DC converters. The series attributes 1000 VDC in isolation and is available in an industry standard SIP package. These Compact DC-DC converters also feature a wide -40 °C to +85 °C operating temperature range and an efficiency of up to 84%.

2 W, isolated DC-DC converters

1000 VDC in isolation, 3000 VDC in isolation option available

Single output

-40 °C to +85 °C Operating temperature

Industry standard SIP packaging

Up to 84% efficiency

XP Power - Isolated DC-DC Converters
