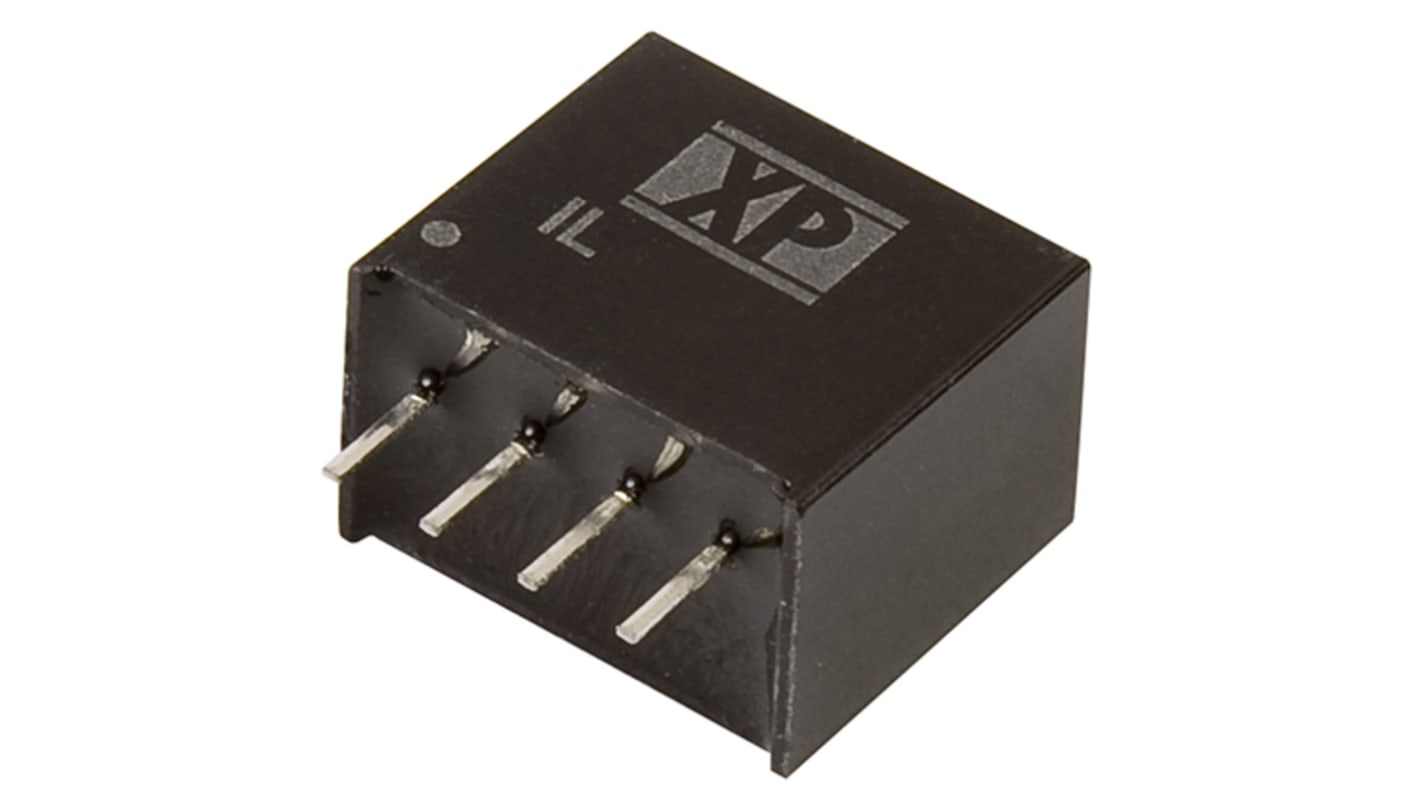

XP Power IL DC-DC Converter, 3.3V dc/ 400mA Output, 10.8 → 13.2 V dc Input, 2W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 122-6960
- Distrelec Article No.:
- 302-24-527
- Mfr. Part No.:
- IL1203S
- Brand:
- XP Power
Subtotal (1 unit)*
£7.00
(exc. VAT)
£8.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 68 unit(s) shipping from 08 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7.00 |
*price indicative
- RS Stock No.:
- 122-6960
- Distrelec Article No.:
- 302-24-527
- Mfr. Part No.:
- IL1203S
- Brand:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 3.3V dc | |
| Input Voltage Range | 10.8 → 13.2 V dc | |
| Power Rating | 2W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 400mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP | |
| Isolation Voltage | 1kV dc | |
| Width | 7.5mm | |
| Depth | 10.16mm | |
| Length | 11.68mm | |
| Series | IL | |
| Load Regulation | ±20% | |
| Efficiency | 72% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 3.3V dc | ||
Input Voltage Range 10.8 → 13.2 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 400mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP | ||
Isolation Voltage 1kV dc | ||
Width 7.5mm | ||
Depth 10.16mm | ||
Length 11.68mm | ||
Series IL | ||
Load Regulation ±20% | ||
Efficiency 72% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
