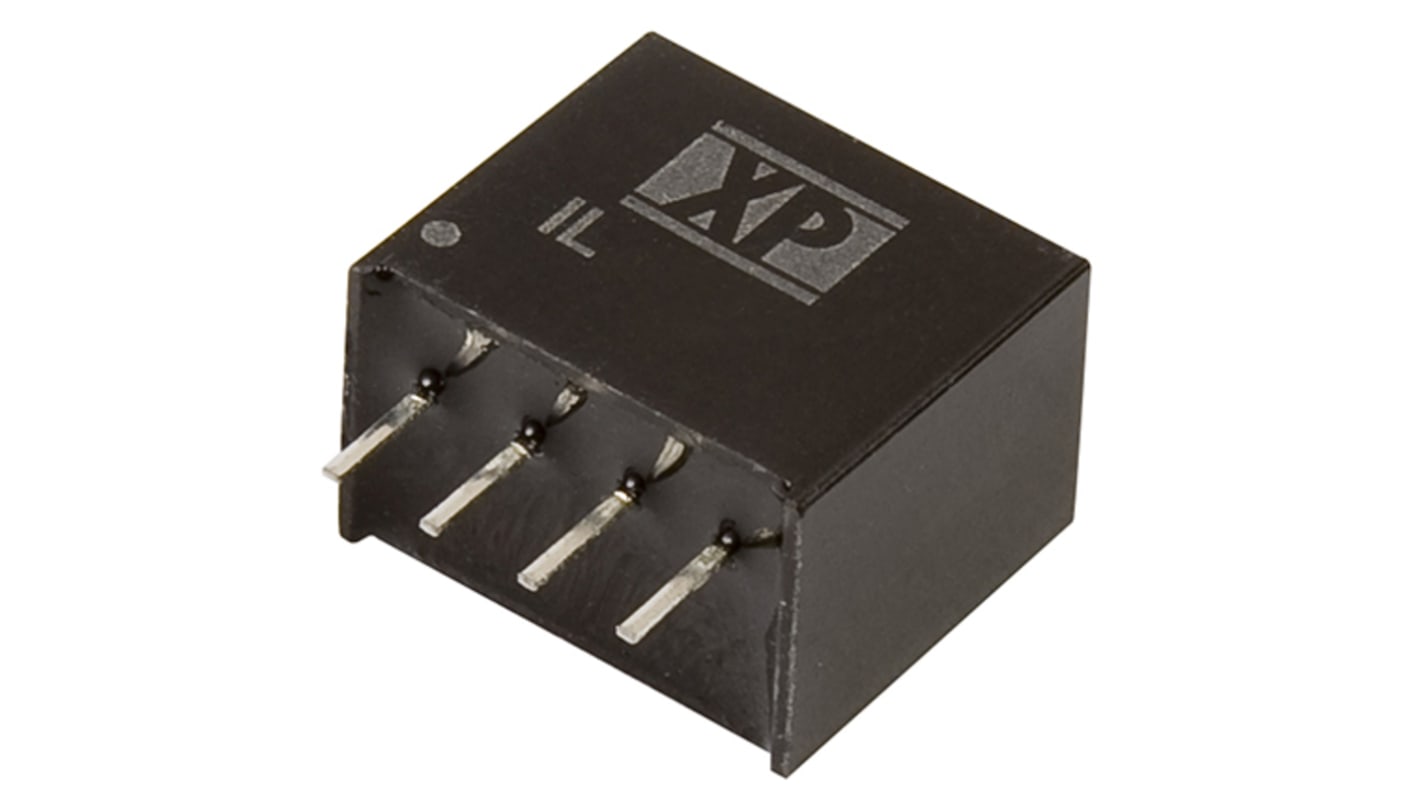

XP Power IL DC/DC Converter, 5 V dc/ 0.4 A, 5.5V dc Input, 4.5V Input 2 W, Through Hole, 100 °C Max Temp -20 °C Min

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£7.22

(exc. VAT)

£8.66

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 36 unit(s) shipping from 20 March 2026
  • Plus 80 unit(s) shipping from 27 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£7.22
5 - 9£7.00
10 - 24£6.78
25 - 49£6.57
50 +£6.34

*price indicative

Packaging Options:
RS Stock No.:
122-6955
Distrelec Article No.:
301-83-584
Mfr. Part No.:
IL0505S
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Product Type

DC/DC Converter

Output Voltage 1

5 V dc

Maximum Input Voltage

5.5V dc

Minimum Input Voltage

4.5V

Output Current 1

0.4A

Mount Type

Through Hole

Number of Outputs

1

MTBF

1210000h

Isolation Voltage

1kV dc

Number of Pins

4

Maximum Output Power

2W

Package Type

SIP

Series

IL

Length

11.68mm

Depth

10.16mm

Width

7.5 mm

Standards/Approvals

No

Maximum Operating Temperature

100°C

Efficiency

77%

Minimum Operating Temperature

-20°C

COO (Country of Origin):
TW

XP Power - IL Series of Isolated DC-DC Converters


The IL series from XP Power offers a highly reliable range of single output, 2 W, isolated DC-DC converters. The series attributes 1000 VDC in isolation and is available in an industry standard SIP package. These Compact DC-DC converters also feature a wide -40 °C to +85 °C operating temperature range and an efficiency of up to 84%.

2 W, isolated DC-DC converters

1000 VDC in isolation, 3000 VDC in isolation option available

Single output

-40 °C to +85 °C Operating temperature

Industry standard SIP packaging

Up to 84% efficiency

XP Power - Isolated DC-DC Converters
