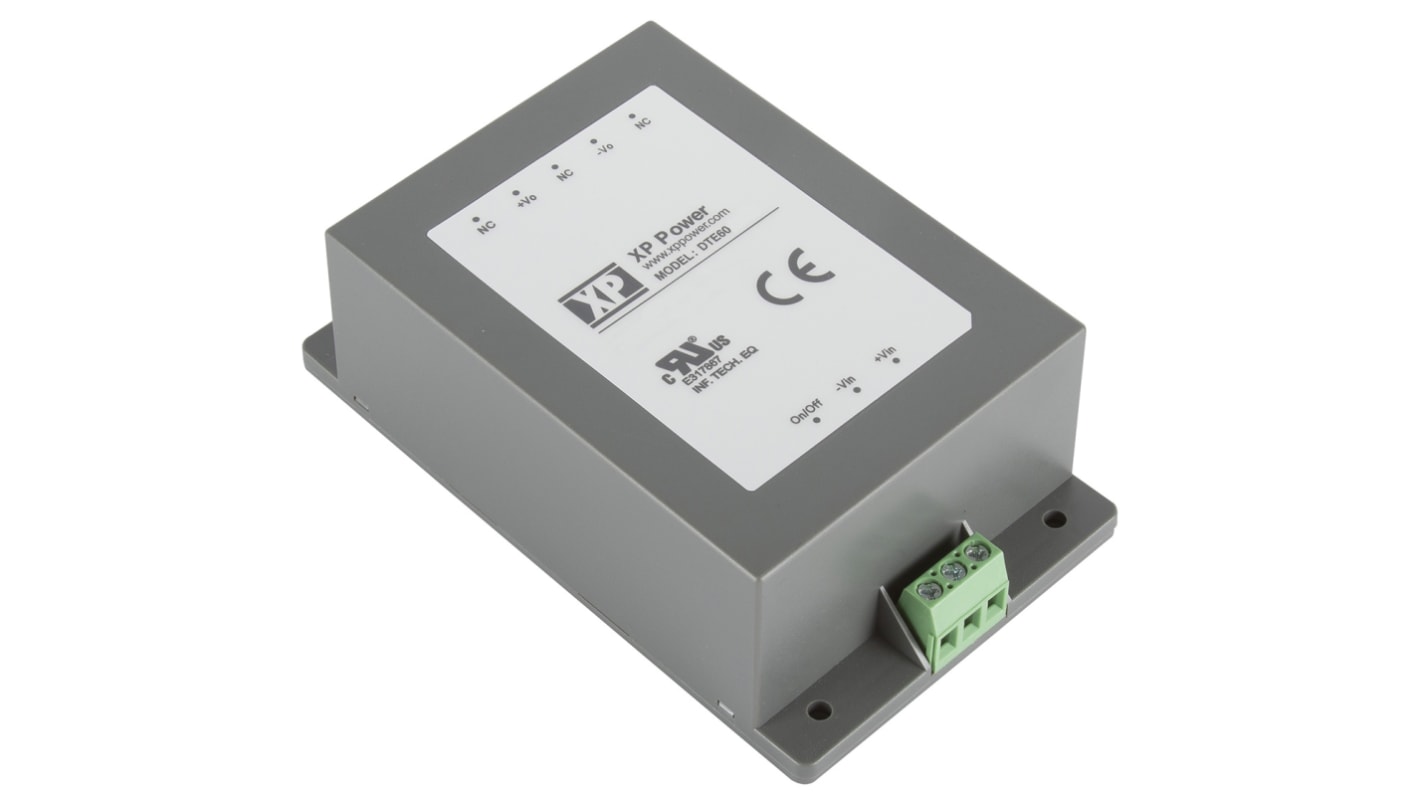

XP Power DTE60 DC-DC Converter, 5V dc/ 12A Output, 18 → 75 V dc Input, 60W, Chassis Mount, +85°C Max Temp -40°C
- RS Stock No.:
- 122-6639
- Mfr. Part No.:
- DTE6048S5V1
- Brand:
- XP Power
Available to back order for despatch 24/12/2024
Added
Price Each
£70.60
(exc. VAT)
£84.72
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £70.60 |
| 5 - 9 | £68.48 |
| 10 - 24 | £66.36 |
| 25 - 49 | £64.25 |
| 50 + | £62.13 |
- RS Stock No.:
- 122-6639
- Mfr. Part No.:
- DTE6048S5V1
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
Product Details
XP Power - DTE60 Series of DC-DC Converters
The DTE60 series from XP Power offers a highly reliable range of 60 W, fully encapsulated DC-DC converters. Designed in both chassis mount and DIN Rail options, which have a wide 4:1 input range and an operating temperature from -40 °C to +85 °C.
60 W
Fully encapsulated Chassis mount and DIN Rail options
-40°C to +85°C Operating temperature
Wide 4:1 input range
High efficiency of up to 92%
Fully encapsulated Chassis mount and DIN Rail options
-40°C to +85°C Operating temperature
Wide 4:1 input range
High efficiency of up to 92%
XP Power - DC-DC Converters
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 18 → 75 V dc |
| Power Rating | 60W |
| Input Voltage Nominal | 48 V dc |
| Output Current | 12A |
| Mounting Type | Chassis Mount |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | Encapsulated |
| Isolation Voltage | 2.5kV dc |
| Depth | 38mm |
| Width | 67.8mm |
| Length | 112mm |
| Series | DTE60 |
| Load Regulation | ±1% |
| Maximum Temperature | +85°C |
| Standards Met | CE Certified, cULus Recognized, EN55022, EN55024, EN60068-2-27, EN60068-2-47, EN60068-2-6, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC 60950-1, MIL-HDBK-217F, UL 60950-1 |
| Minimum Temperature | -40°C |
