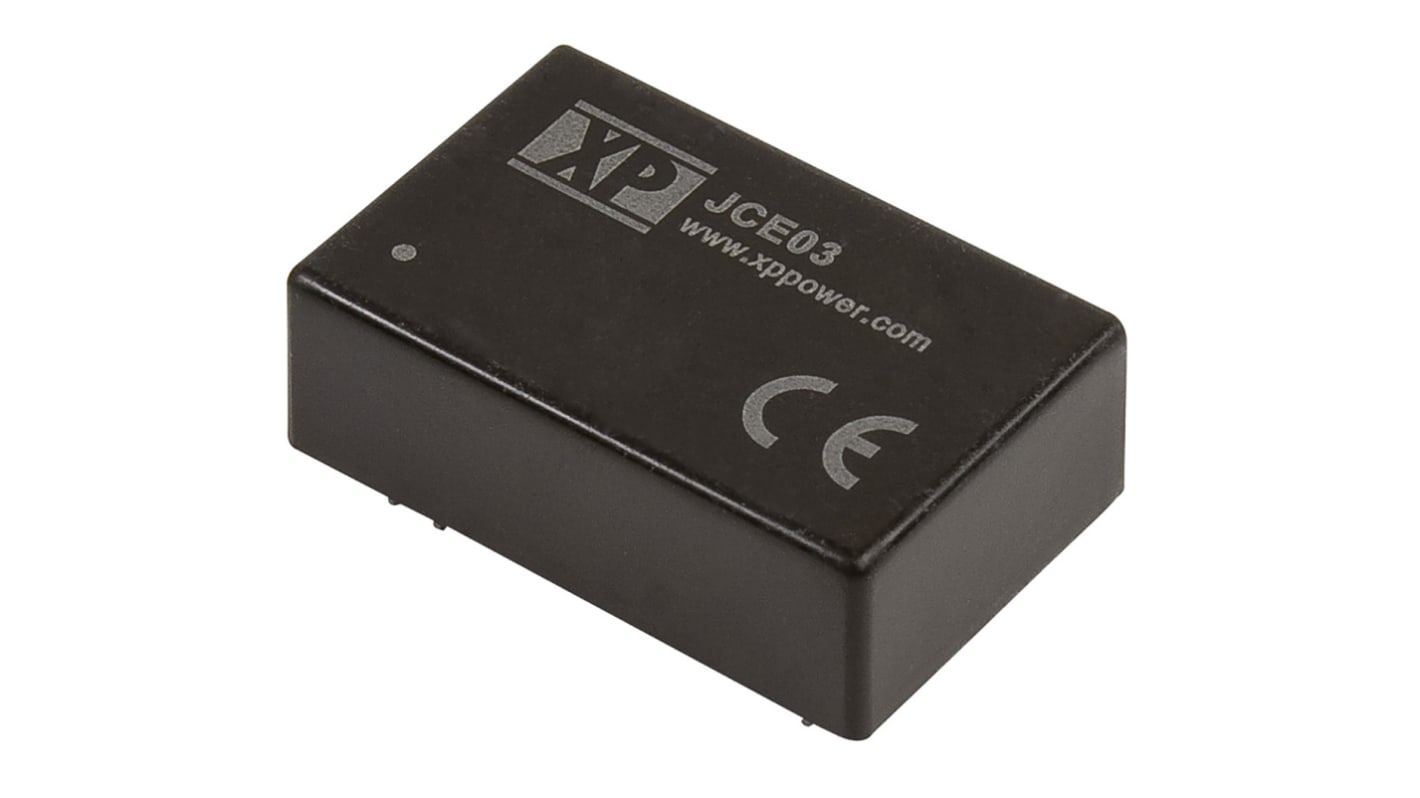

XP Power JCE03 DC-DC Converter, 5V dc/ 600mA Output, 9 → 18 V dc Input, 3W, Through Hole, +100°C Max Temp -40°C
- RS Stock No.:
- 122-6166
- Mfr. Part No.:
- JCE0312S05
- Brand:
- XP Power
View all DC-DC Converters
24 In stock - FREE next working day delivery available
Price Each
£11.47
(exc. VAT)
£13.76
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £11.47 |
| 5 - 9 | £11.13 |
| 10 - 24 | £10.78 |
| 25 - 49 | £10.44 |
| 50 + | £10.09 |
- RS Stock No.:
- 122-6166
- Mfr. Part No.:
- JCE0312S05
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
XP Power - JCE03 Series of Isolated DC-DC Converters
The JCE03 series from XP Power offers a highly reliable range of fully regulated single and dual output, 3 W, isolated DC-DC converters. The series features 1500 VDC in isolation (3000 VDC option available) and is available in an industry standard DIP24 package. These compact DC-DC converters feature a 2:1 input range, no minimum load requirements and a wide -40 °C to +90 °C operating temperature range, making them the perfect choice for a host of commercial and industrial applications.
3 W, Isolated DC-DC converters
1500 VDC in isolation, 3000 VDC option available
Regulated single and dual output
Industry standard DIP24 package
No minimum load requirement
Wide -40 °C to +90 °C operating temperature range
1500 VDC in isolation, 3000 VDC option available
Regulated single and dual output
Industry standard DIP24 package
No minimum load requirement
Wide -40 °C to +90 °C operating temperature range
XP Power Isolated DC-DC Converters
Specifications
| Attribute | Value |
| Output Voltage | 5V dc |
| Input Voltage Range | 9 → 18 V dc |
| Power Rating | 3W |
| Input Voltage Nominal | 12 V dc |
| Output Current | 600mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | DIP 24 |
| Isolation Voltage | 1.5kV dc |
| Width | 20.32mm |
| Depth | 10.16mm |
| Length | 31.75mm |
| Series | JCE03 |
| Load Regulation | ±1.2% |
| Standards Met | EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F |
| Maximum Temperature | +100°C |
| Minimum Temperature | -40°C |
| Efficiency | 78% |
