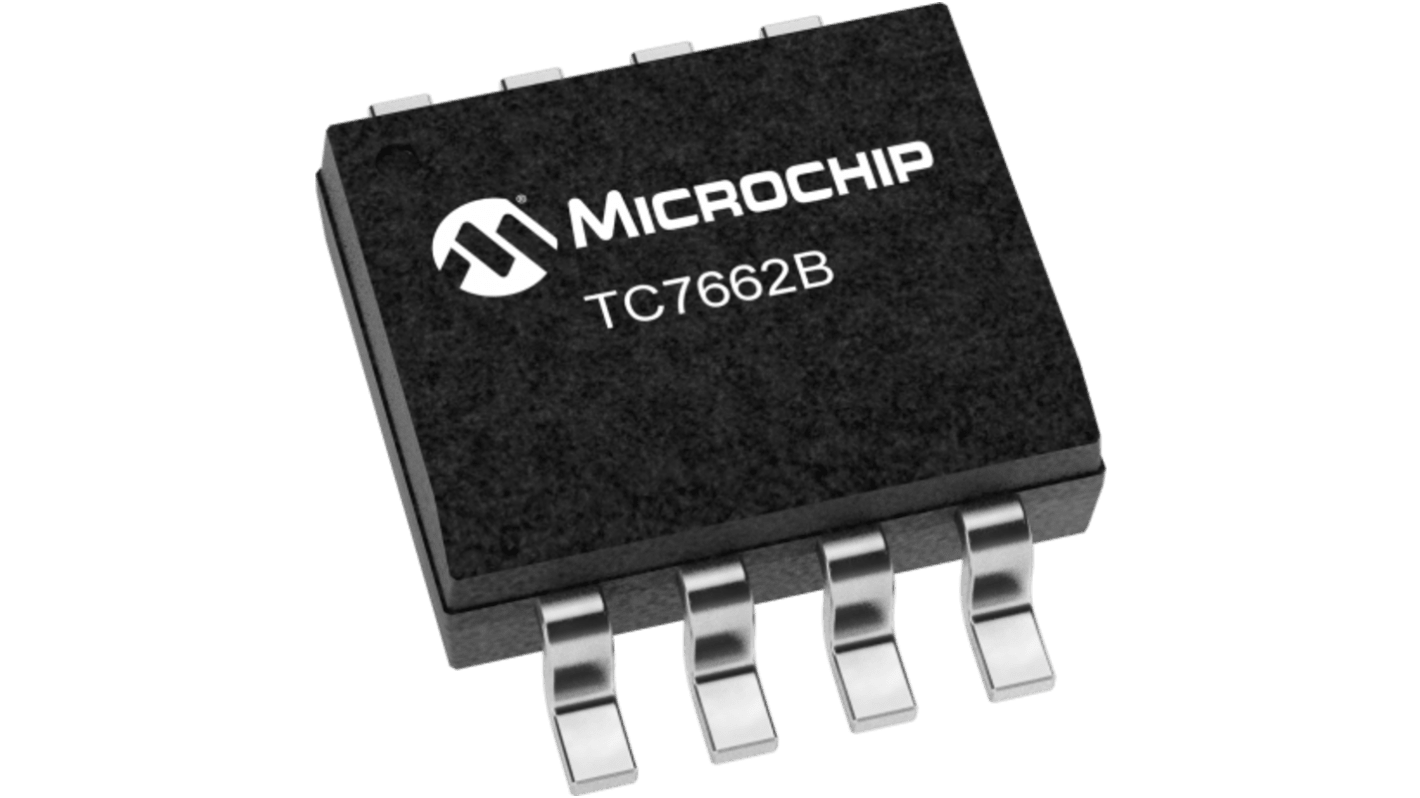

Microchip TC766 DC-DC Converter, 2.75V dc/ 20mA Output, 1.5 → 15 V dc Input, 730mW, Surface, +85°C Max Temp
- RS Stock No.:
- 598-716
- Mfr. Part No.:
- TC7662BEOA713
- Brand:
- Microchip
Subtotal (1 reel of 3300 units)*
£4,570.50
(exc. VAT)
£5,484.60
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3300 + | £1.385 | £4,570.50 |
*price indicative
- RS Stock No.:
- 598-716
- Mfr. Part No.:
- TC7662BEOA713
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Output Voltage | 2.75V dc | |
| Input Voltage Range | 1.5 → 15 V dc | |
| Power Rating | 730mW | |
| Output Current | 20mA | |
| Mounting Type | Surface | |
| Series | TC766 | |
| Minimum Temperature | -45°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Microchip | ||
Output Voltage 2.75V dc | ||
Input Voltage Range 1.5 → 15 V dc | ||
Power Rating 730mW | ||
Output Current 20mA | ||
Mounting Type Surface | ||
Series TC766 | ||
Minimum Temperature -45°C | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- TH
The Microchip Charge pump DC-to-DC voltage converter that generates negative voltage from a positive input without using inductors. It’s a pin-compatible upgrade to the TC7660, offering improved efficiency and reduced electromagnetic interference. With an internal oscillator and minimal external components, it’s ideal for compact, battery-powered systems like RS-232 power supplies and data acquisition devices.
Boost pin for higher switching frequency
High power efficiency of 96%
High power efficiency of 96%
