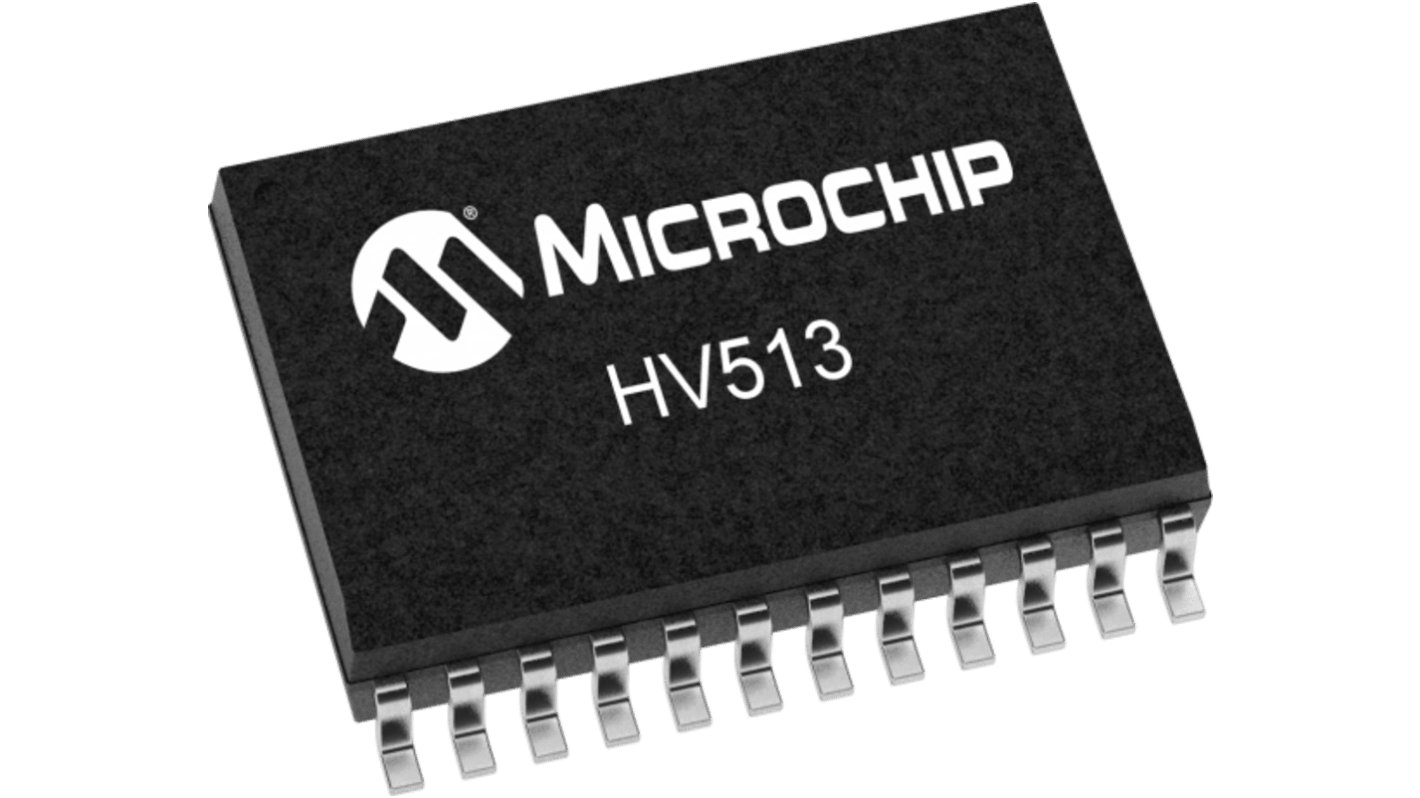

Microchip HV513 DC/DC Converter, 250V dc/ 20 mA Output, 0.9V dc Input, 0V dc Input, 85 °C Max Temp -40 °C Min Temp
- RS Stock No.:
- 598-610
- Mfr. Part No.:
- HV513WG-G
- Brand:
- Microchip
Subtotal (1 reel of 1000 units)*
£3,140.00
(exc. VAT)
£3,770.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 14 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £3.14 | £3,140.00 |
*price indicative
- RS Stock No.:
- 598-610
- Mfr. Part No.:
- HV513WG-G
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Output Voltage | 250V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 0V dc | |
| Maximum Input Voltage | 0.9V dc | |
| Output Current | 20mA | |
| Depth | 2.65mm | |
| Series | HV513 | |
| Standards/Approvals | RoHS | |
| Width | 7.6mm | |
| Length | 15.6mm | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Output Voltage 250V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 0V dc | ||
Maximum Input Voltage 0.9V dc | ||
Output Current 20mA | ||
Depth 2.65mm | ||
Series HV513 | ||
Standards/Approvals RoHS | ||
Width 7.6mm | ||
Length 15.6mm | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- MY
The Microchip Low voltage to high voltage serial to parallel converter with eight high voltage push pull outputs. This device is designed to drive small capacitive loads such as piezoelectric transducers. It can also be used in any application requiring multiple high voltage outputs with medium current source and sink capabilities.
Latched Data Outputs
Output Polarity and Blanking
Output Short Circuit Detect
Output High Z (Hi Z) Control
CMOS Compatible Inputs
