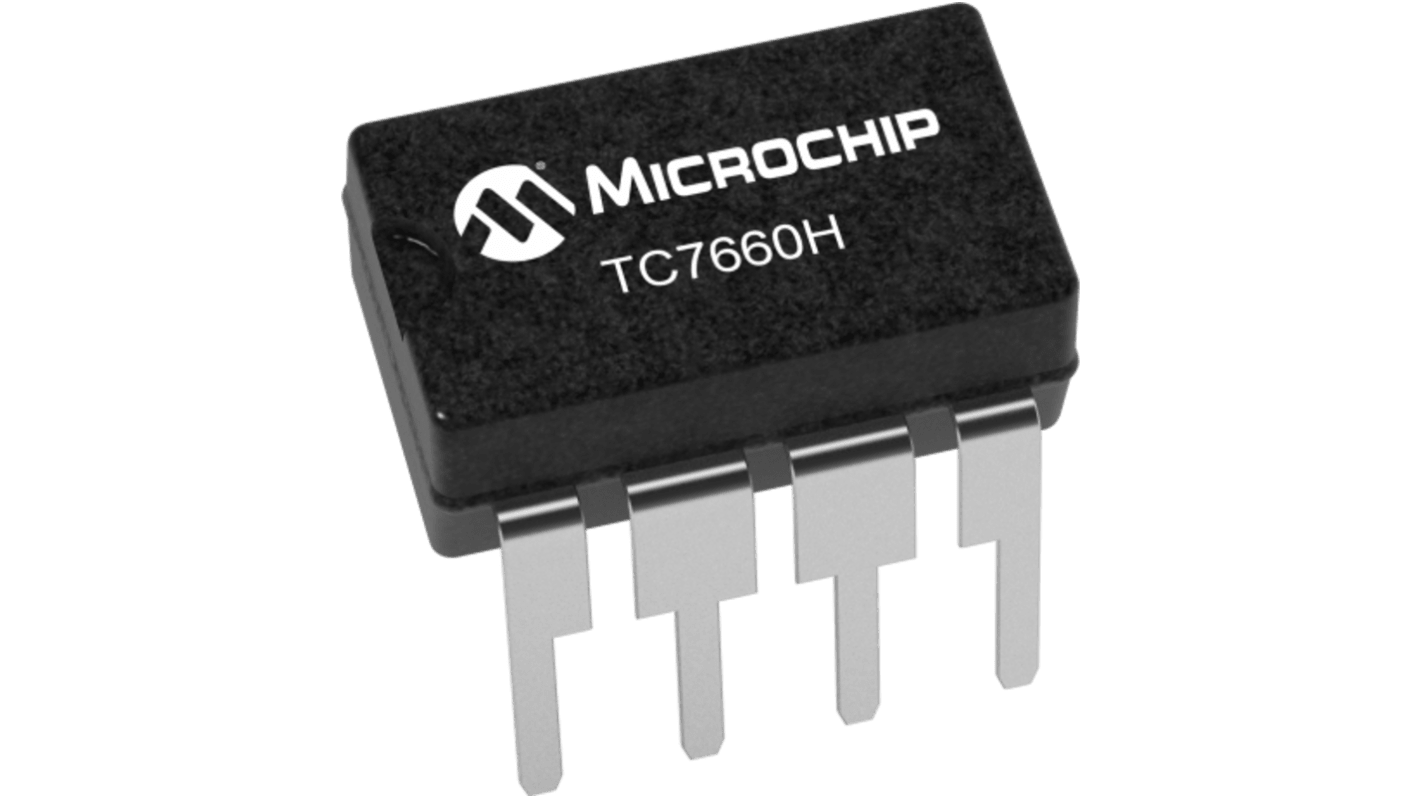

Microchip TC766 DC-DC Converter, -4.3V dc/ 20mA Output, 1.5 → 10 V dc Input, 730W, Surface, +85°C Max Temp -40°C
- RS Stock No.:
- 598-407
- Mfr. Part No.:
- TC7660HEPA
- Brand:
- Microchip
Subtotal (1 box of 540 units)*
£362.88
(exc. VAT)
£435.24
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 540 + | £0.672 | £362.88 |
*price indicative
- RS Stock No.:
- 598-407
- Mfr. Part No.:
- TC7660HEPA
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Output Voltage | -4.3V dc | |
| Input Voltage Range | 1.5 → 10 V dc | |
| Power Rating | 730W | |
| Output Current | 20mA | |
| Mounting Type | Surface | |
| Series | TC766 | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Microchip | ||
Output Voltage -4.3V dc | ||
Input Voltage Range 1.5 → 10 V dc | ||
Power Rating 730W | ||
Output Current 20mA | ||
Mounting Type Surface | ||
Series TC766 | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- TH
The Microchip Charge pump DC-to-DC voltage converter designed to generate negative voltage from a positive input without using inductors. It’s a high-frequency upgrade to the classic TC7660, offering improved efficiency and reduced electromagnetic interference. With minimal external components and pin compatibility with the original, it’s ideal for compact, battery-powered systems like RS-232 power supplies and data acquisition devices.
Pin compatible with 7660, high-frequency performance DC-to-DC converter
Low cost, only two low-value external capacitors required
Low cost, only two low-value external capacitors required
