TRACOPOWER TEN 40UIR DC/DC Converter, 24V dc/ 8000 mA, 160V Input, 9V Input 40 W, PCB, 90 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters

Subtotal (1 unit)*

£69.51

(exc. VAT)

£83.41

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 100 unit(s) shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£69.51

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
589-925
Mfr. Part No.:
TEN 40-3612UIR
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

24V dc

Product Type

DC/DC Converter

Maximum Input Voltage

160V

Minimum Input Voltage

9V

Output Current 1

8000mA

Output Current 2

1670mA

Mount Type

PCB

Output Voltage 2

-15V

Input Ratio

12:1

MTBF

843400h

Number of Outputs

2

Output Voltage Adjustment Range

-10 to 20 %

Ripple and Noise

200mV Pk-Pk

Number of Pins

9

Isolation Voltage

3000V

Maximum Output Power

40W

Package Type

Metal case

Width

25.4mm

Standards/Approvals

UL 62368-1, EN 62368-1, EN 61373, EN 50155, EN 45545-2

Length

50.8mm

Series

TEN 40UIR

Depth

10.2mm

Weight

34.5g

Better World Product

Yes

Better World Claim

Concentrated or Compact Solution

Maximum Operating Temperature

90°C

Minimum Operating Temperature

-40°C

Efficiency

90%

COO (Country of Origin):
TW

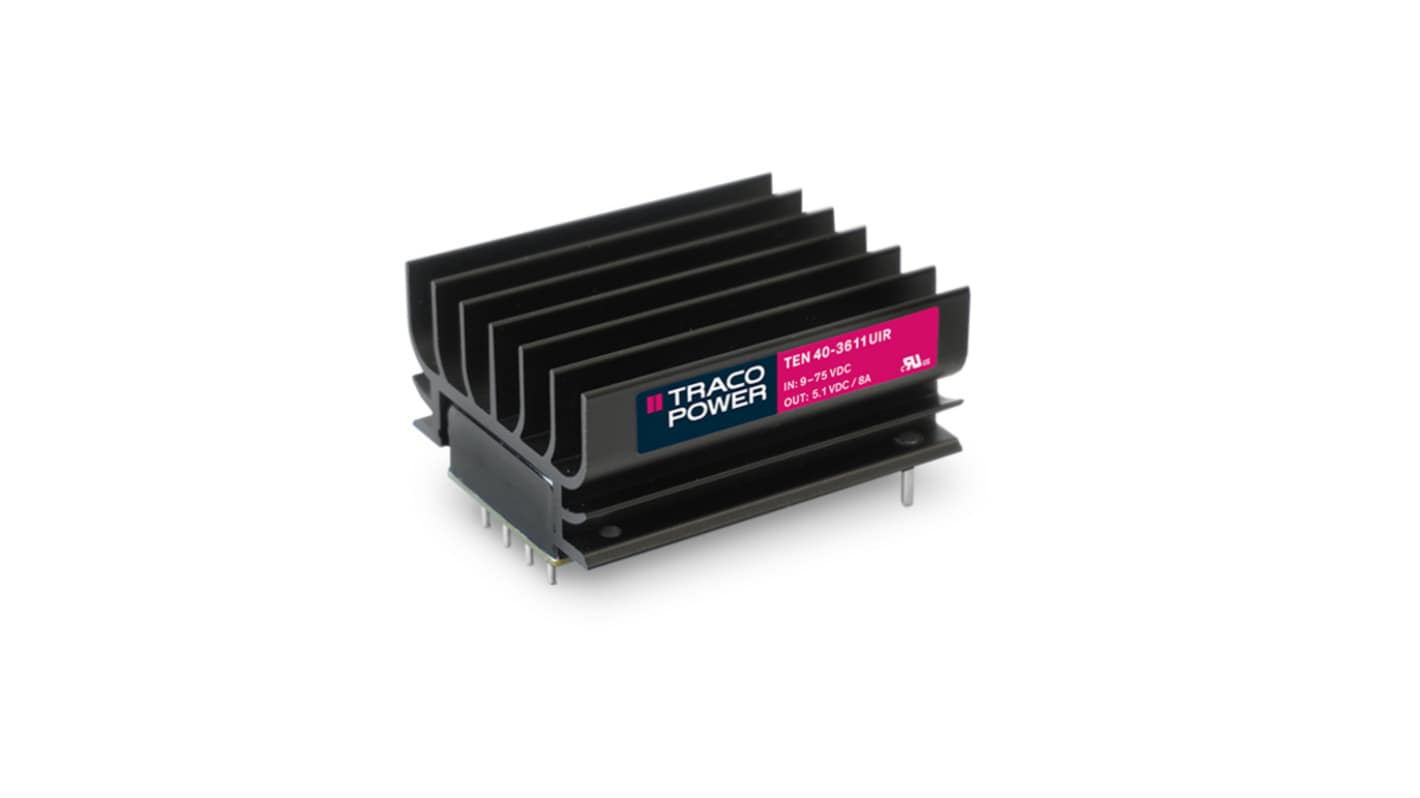

The TRACOPOWER High-performance DC to DC converter with an ultra-wide 12:1 input voltage range and a power output of 40 watt. It comes in a compact, fully encapsulated 2 x 1 inch housing for maximum reliability and efficient cooling. With a dedicated holdup capacitor connection, it meets extended holdup-time requirements without the need for bulky input capacitors. It is EN 50155 certified for rolling stock applications, EN 61373 certified for resistance to mechanical shock and vibration, and EN 45545-2 certified for fire behaviour. It also holds IEC EN UL 62368-1 safety approvals, making it suitable for a broad range of demanding industrial applications.

Dedicated holdup capacitor connection

Fully encapsulated construction

3000 VDC input to output isolation

Remote on/off and trim function

Protection against short-circuit (SCP), overvoltage (OVP), and over temperature (OTP)

3-year product warranty
