TRACOPOWER TEN 40UIR DC/DC Converter, 24V dc/ 8000 mA, 160V Input, 9V Input 40 W, PCB, 90 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters

Subtotal (1 tube of 10 units)*

£661.97

(exc. VAT)

£794.36

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Tube(s)
Per Tube
Per unit*
1 +£661.97£66.197

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
589-900
Mfr. Part No.:
TEN 40-3613UIR
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

24V dc

Product Type

DC/DC Converter

Maximum Input Voltage

160V

Minimum Input Voltage

9V

Output Current 1

8000mA

Output Current 2

1670mA

Output Voltage 2

-15V dc

Mount Type

PCB

Input Ratio

12:1

Number of Outputs

2

MTBF

843400h

Output Voltage Adjustment Range

-10 to 20 %

Ripple and Noise

200mV Pk-Pk

Isolation Voltage

3000V

Number of Pins

9

Package Type

Metal case

Maximum Output Power

40W

Standards/Approvals

EN 45545-2, EN 50155, EN 61373, IEC 62368-1, UL 62368-1

Depth

10.2mm

Length

50.8mm

Weight

34.5g

Width

25.4mm

Series

TEN 40UIR

Better World Claim

Concentrated or Compact Solution

Better World Product

Yes

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

90°C

Efficiency

90%

COO (Country of Origin):
TW

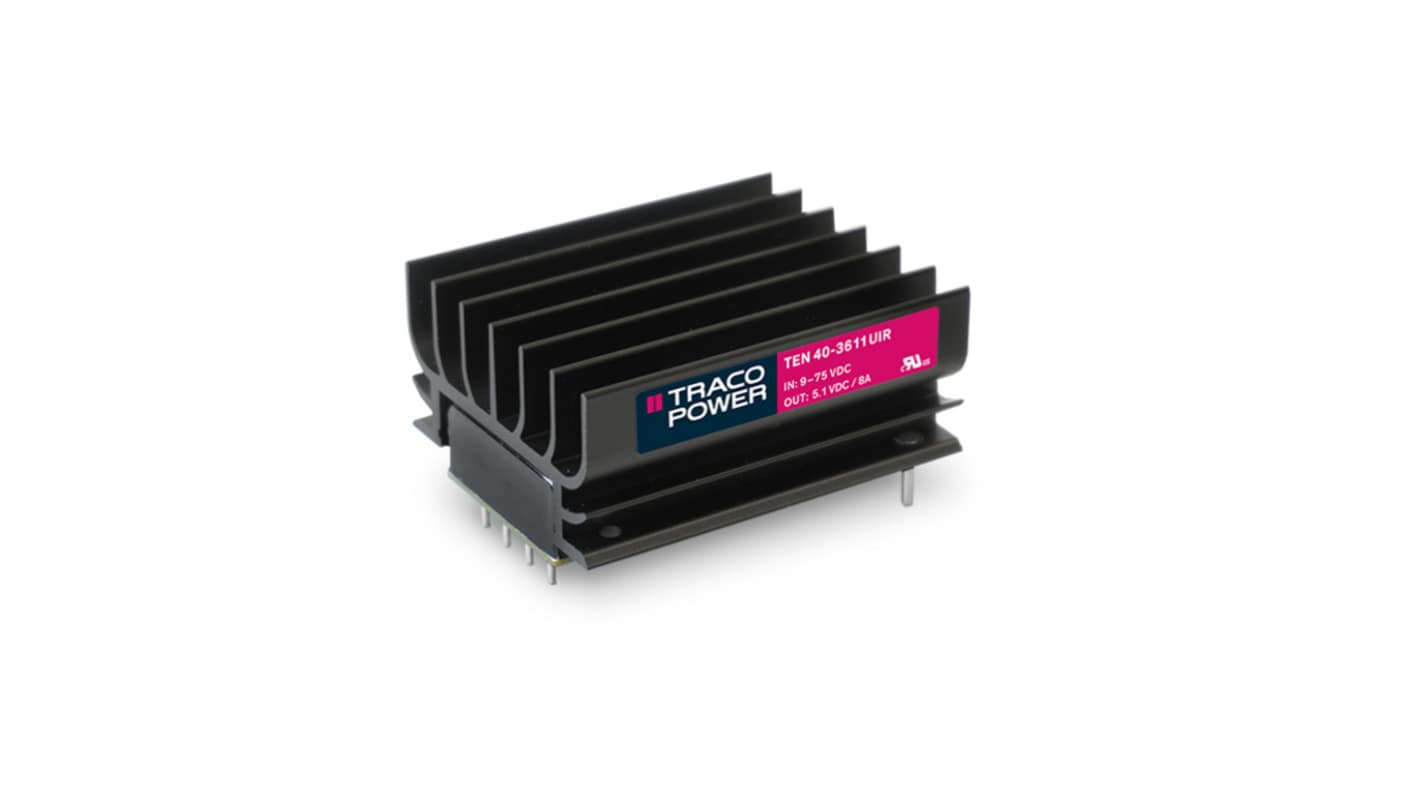

The TRACOPOWER High-performance DC to DC converter with an ultra-wide 12:1 input voltage range and a power output of 40 watt. It comes in a compact, fully encapsulated 2 x 1 inch housing for maximum reliability and efficient cooling. With a dedicated holdup capacitor connection, it meets extended holdup-time requirements without the need for bulky input capacitors. It is EN 50155 certified for rolling stock applications, EN 61373 certified for resistance to mechanical shock and vibration, and EN 45545-2 certified for fire behaviour. It also holds IEC EN UL 62368-1 safety approvals, making it suitable for a broad range of demanding industrial applications.

Dedicated holdup capacitor connection

Fully encapsulated construction

3000 VDC input to output isolation

Remote on/off and trim function

Protection against short-circuit (SCP), overvoltage (OVP), and over temperature (OTP)

3-year product warranty
