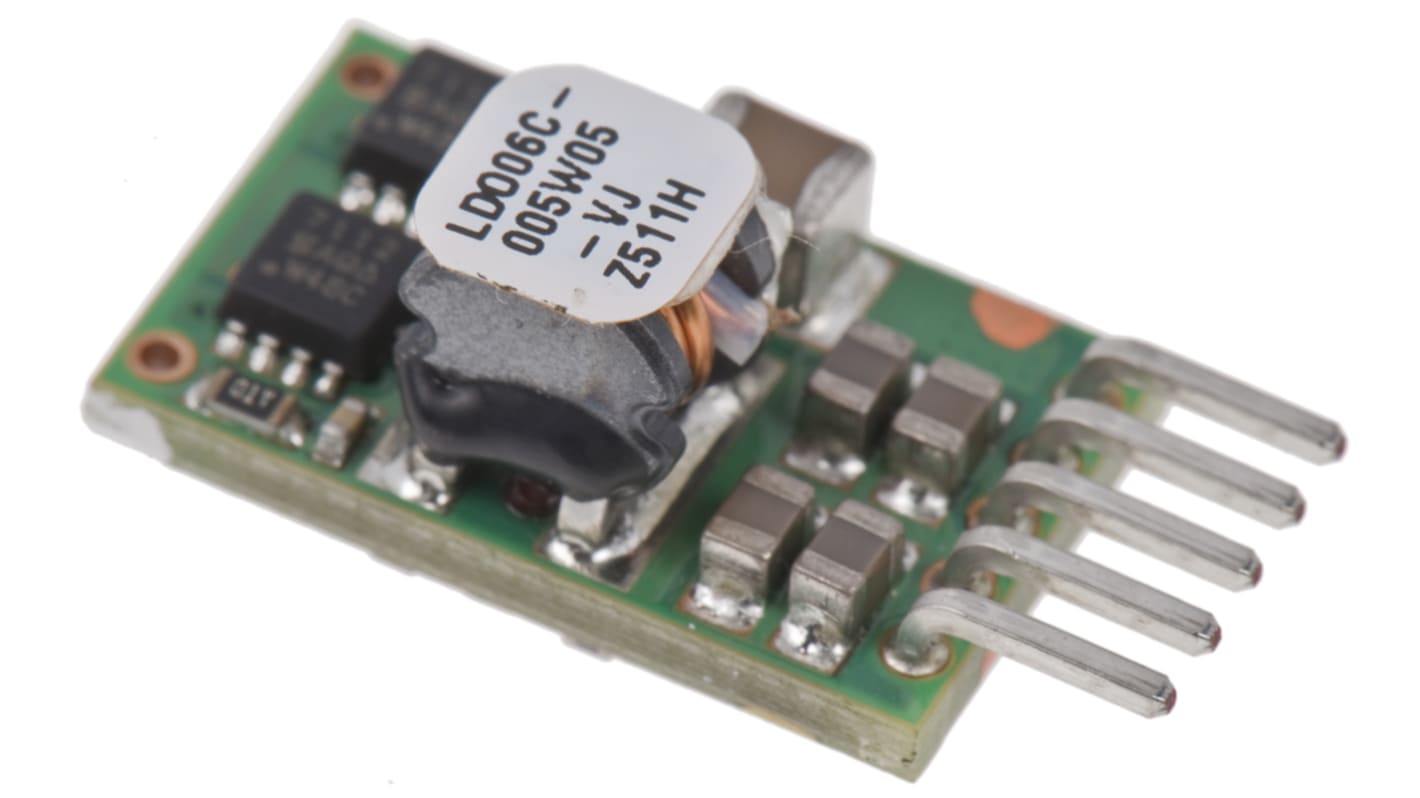

The Artesyn LDO06C series is a new high density, open frame, non-isolated converter for space sensitive applications. This DC-DC converter has a wide input range of 3-13.8 V and offers a 0.59-5.1V adjustable output with 6A capability. Typical efficiency for this model is 92% (5Vin, 2.5Vout, 6A load). The 5 pin version of this voltage device offers the standard features of enable, and with a default wide adjustable output voltage range or option of power good.

Non-isolated
C-Class, high density
Wide input voltage range
Up to 6A output current
Adjustable output voltage via external resistors
Power enable
Over-voltage and short current protection
Vertical through-hole mounting package

MTBF to Bellcore 332.

UL 60950, EN 60950, IEC 60950, CSA C22.2 Certified

UL/cUL recognized, CSA, TUV, CB
