Murata Power Solutions MPS0117V2NBC DC/DC Converter, 12V dc/ 17 A, 75V dc Input, 36V Input 204 W, PCB, 85 °C Max Temp
- RS Stock No.:
- 303-934
- Mfr. Part No.:
- MPS0117V2NBC
- Brand:
- Murata Power Solutions
Subtotal (1 unit)*
£58.18
(exc. VAT)
£69.82
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 189 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £58.18 |
*price indicative
- RS Stock No.:
- 303-934
- Mfr. Part No.:
- MPS0117V2NBC
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 12V dc | |
| Minimum Input Voltage | 36V | |
| Maximum Input Voltage | 75V dc | |
| Output Current 1 | 17A | |
| Mount Type | PCB | |
| MTBF | 2600kH | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 9.60 to 13.20 V dc | |
| Ripple and Noise | 140mV | |
| Isolation Voltage | 2250V | |
| Maximum Output Power | 204W | |
| Package Type | Sixteenth Brick | |
| Width | 0.9in | |
| Standards/Approvals | UL 62368-1, UKCA, IEC 62368-1:2018, CSA-C22.2 No. 62368-1-19, CE | |
| Series | MPS0117V2NBC | |
| Weight | 0.85oz | |
| Length | 1.3in | |
| Efficiency | 95% | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Product Type DC/DC Converter | ||
Output Voltage 1 12V dc | ||
Minimum Input Voltage 36V | ||
Maximum Input Voltage 75V dc | ||
Output Current 1 17A | ||
Mount Type PCB | ||
MTBF 2600kH | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 9.60 to 13.20 V dc | ||
Ripple and Noise 140mV | ||
Isolation Voltage 2250V | ||
Maximum Output Power 204W | ||
Package Type Sixteenth Brick | ||
Width 0.9in | ||
Standards/Approvals UL 62368-1, UKCA, IEC 62368-1:2018, CSA-C22.2 No. 62368-1-19, CE | ||
Series MPS0117V2NBC | ||
Weight 0.85oz | ||
Length 1.3in | ||
Efficiency 95% | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN

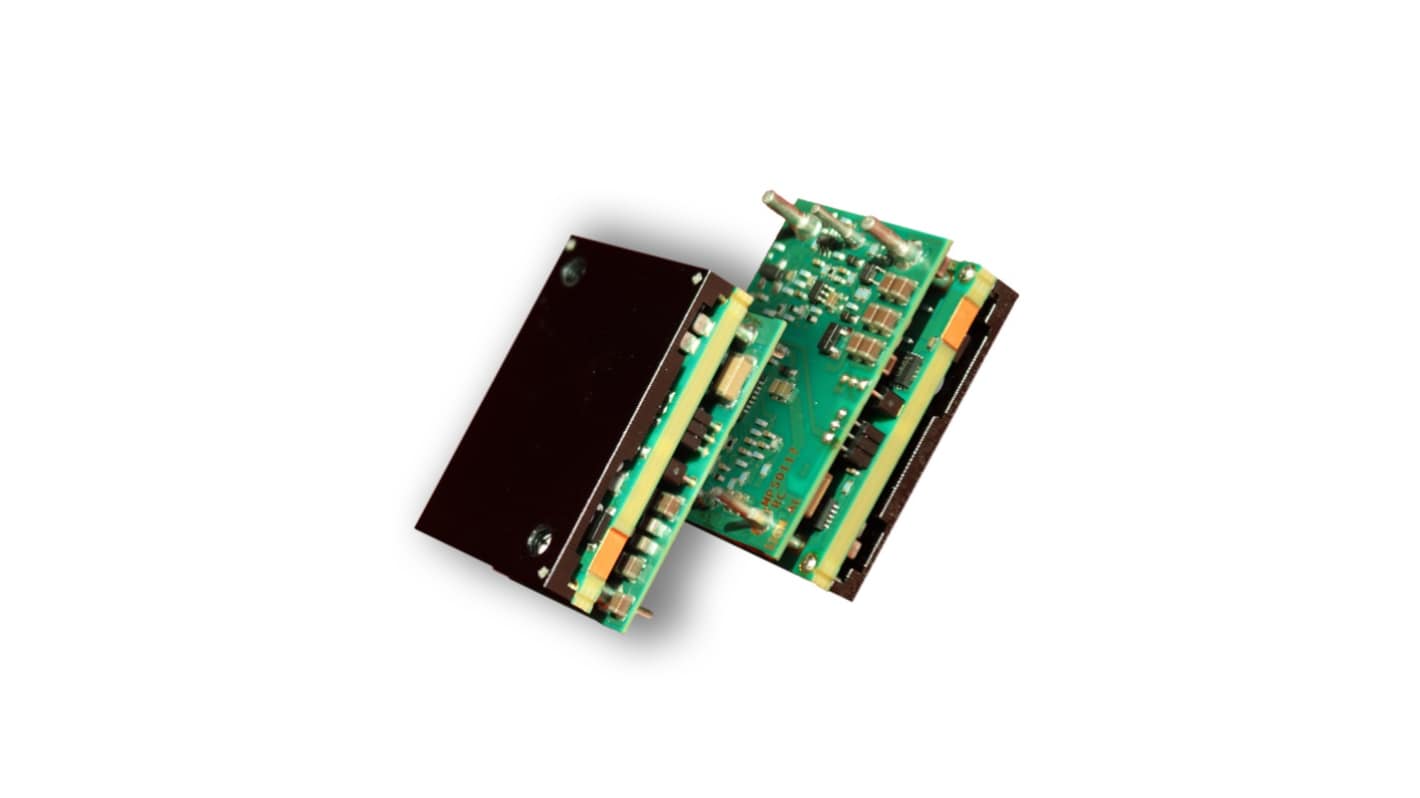

The Murata Power Solutions Sixteenth-Brick is a highly efficient 200W isolated DC/DC converter that converts a 36-75Vdc input into an isolated, regulated 12Vdc/17Amp output. The MPS0117V2NBC is fully protected from overcurrent, over temperature, and overvoltage faults and comes in the industry-standard sixteenth-brick format with a baseplate. It offers cooling options for all applications and includes safety features such as 2,250Vdc I/O isolation with basic insulation, making it suitable for POE applications.
Regulated 12V/17A output
Optimized thermal performance
High efficiency up to 95%
Over-current, over-temperature, and over-voltage protection
