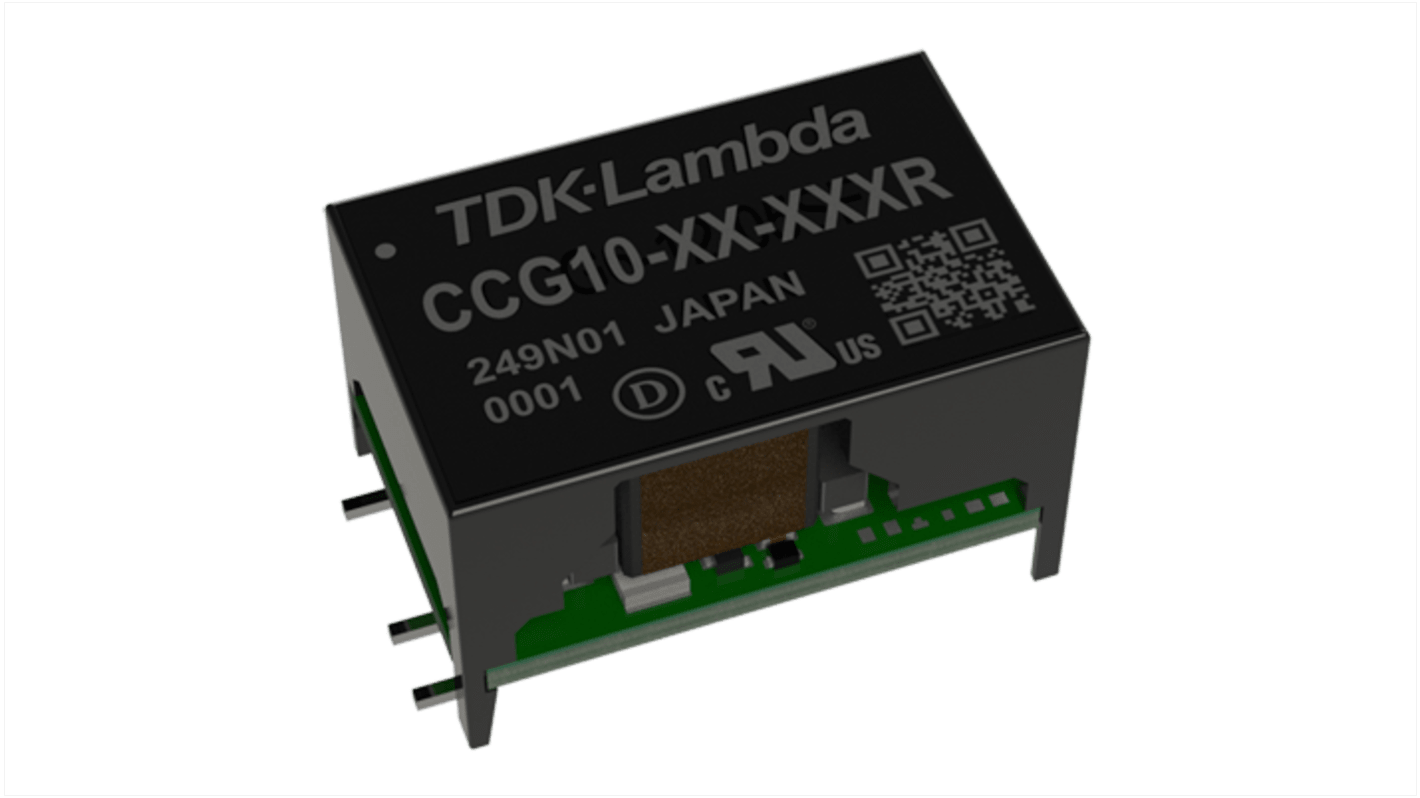

TDK-Lambda CCG DC/DC Converter, 15V dc/ 700 mA, 12V dc Input, 5V dc Input 10.5 W, Surface, 100 °C Max Temp -40 °C Min
- RS Stock No.:
- 242-727
- Mfr. Part No.:
- CCG10-12-15SR
- Brand:
- TDK-Lambda
Subtotal (1 unit)*
£26.78
(exc. VAT)
£32.14
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 20 unit(s) shipping from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £26.78 |
*price indicative
- RS Stock No.:
- 242-727
- Mfr. Part No.:
- CCG10-12-15SR
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 15V dc | |
| Minimum Input Voltage | 5V dc | |
| Maximum Input Voltage | 12V dc | |
| Output Current 1 | 700mA | |
| Output Current 2 | 0.42A | |
| Mount Type | Surface | |
| Output Voltage 2 | 15V dc | |
| Number of Outputs | 2 | |
| Output Voltage Adjustment Range | -5 to 10 % | |
| Ripple and Noise | 200mV | |
| Isolation Voltage | 1500V | |
| Maximum Output Power | 10.5W | |
| Package Type | Through Hole | |
| Series | CCG | |
| Length | 19mm | |
| Weight | 4g | |
| Standards/Approvals | UKCA, CE, IEC62368-1 | |
| Depth | 11.5mm | |
| Width | 12.4mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Efficiency | 90% | |
| Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Product Type DC/DC Converter | ||
Output Voltage 1 15V dc | ||
Minimum Input Voltage 5V dc | ||
Maximum Input Voltage 12V dc | ||
Output Current 1 700mA | ||
Output Current 2 0.42A | ||
Mount Type Surface | ||
Output Voltage 2 15V dc | ||
Number of Outputs 2 | ||
Output Voltage Adjustment Range -5 to 10 % | ||
Ripple and Noise 200mV | ||
Isolation Voltage 1500V | ||
Maximum Output Power 10.5W | ||
Package Type Through Hole | ||
Series CCG | ||
Length 19mm | ||
Weight 4g | ||
Standards/Approvals UKCA, CE, IEC62368-1 | ||
Depth 11.5mm | ||
Width 12.4mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Efficiency 90% | ||
- COO (Country of Origin):
- JP
The TDK Lambda DC To DC Converter offers reliable performance with a wide 4:1 input range and operates in ambient temperatures from 40°C to +100°C. It provides 1,500Vdc input to output isolation and comes in space saving package sizes. Additionally, it is certified to IEC62368 1, making it suitable for applications requiring high efficiency, safety, and compact design.
Reduced derating at high ambient temperatures
No silicone potting
Less board area needed
Easier system compliance
More useable power
Reduced quality risk during surface mount reflow process
