TDK-Lambda RGA DC/DC Converter, 24V dc, 3.3 V dc/ 14 A, 36V dc Input, 24V dc, PCB, -40 °C Max Temp 110 °C Min Temp, 1/16

View all DC-DC Converters

Subtotal (1 unit)*

£46.05

(exc. VAT)

£55.26

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 30 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£46.05

*price indicative

RS Stock No.:
242-646
Distrelec Article No.:
304-11-138
Mfr. Part No.:
RGA24250W014A-001
Brand:
TDK-Lambda
Find similar products by selecting one or more attributes.
Select all

Brand

TDK-Lambda

Output Voltage 1

24, 3.3V dc

Product Type

DC/DC Converter

Minimum Input Voltage

24V dc

Maximum Input Voltage

36V dc

Mount Type

PCB

MTBF

12h

Number of Outputs

1

Output Voltage Adjustment Range

3.3 to 40 V

Ripple and Noise

50mV Pk-Pk

Output Current 1

14A

Maximum Output Power

250W

Package Type

1/16 Brick

Length

35.6mm

Series

RGA

Depth

13.0mm

Weight

42.5g

Width

25.6mm

Standards/Approvals

UKCA Mark, CE

Minimum Operating Temperature

110°C

Maximum Operating Temperature

-40°C

Efficiency

98%

COO (Country of Origin):
JP

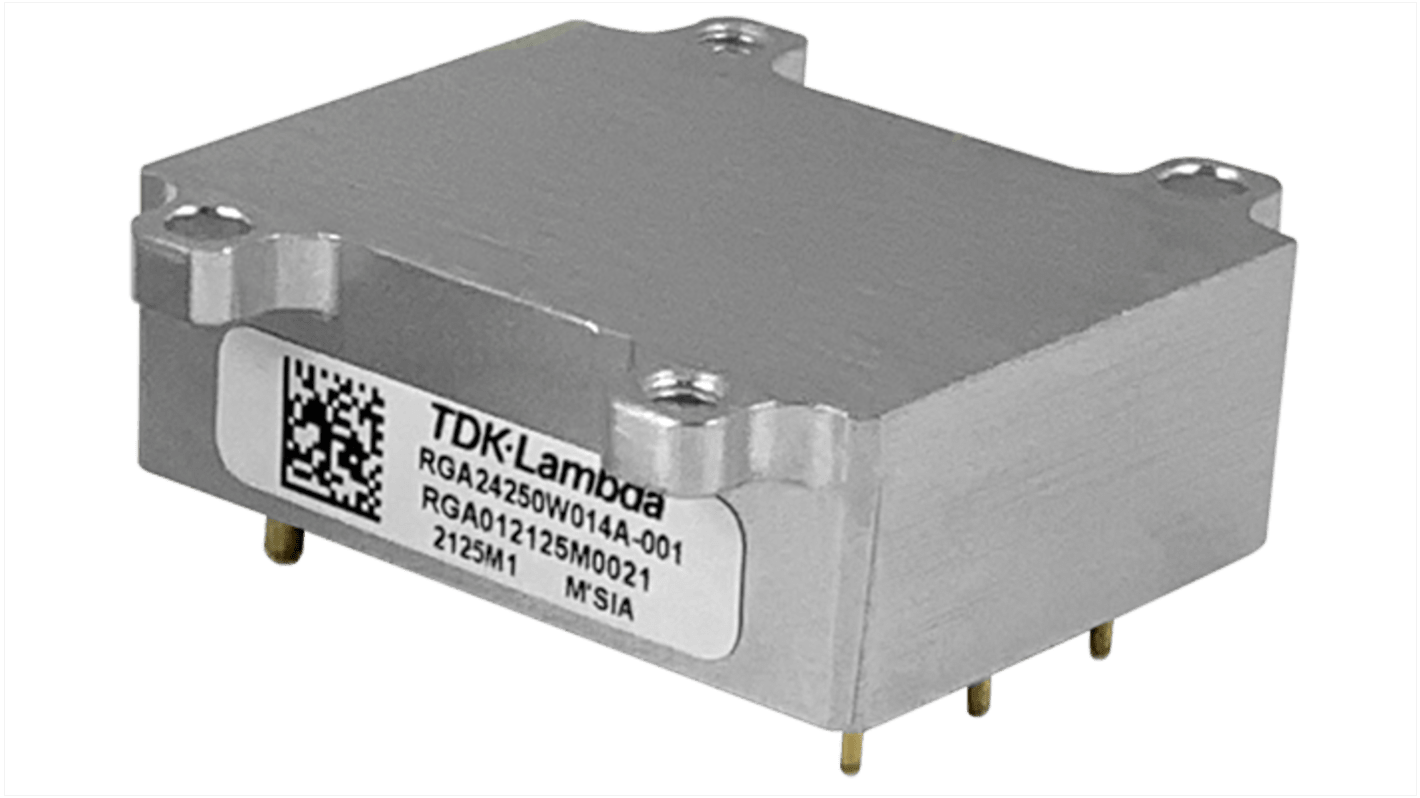

The TDK Lambda DC To DC Step Down Converters are encapsulated in a five sided aluminum case and are rated for operation in temperatures up to 110°C. These modules feature the industry standard 1/16th brick pin out and are qualified to MIL STD 810G for shock and vibration, making them ideal for fan less, conduction cooled applications. They support a wide input range for compatibility with various DC bus and battery voltages. Standard and optional features include remote on/off, remote sense, power good, frequency synchronization, and output sequencing, offering a flexible and reliable power solution for demanding applications.

Low component count with minimal external components

High power density

Less board area needed

Improves EMI
