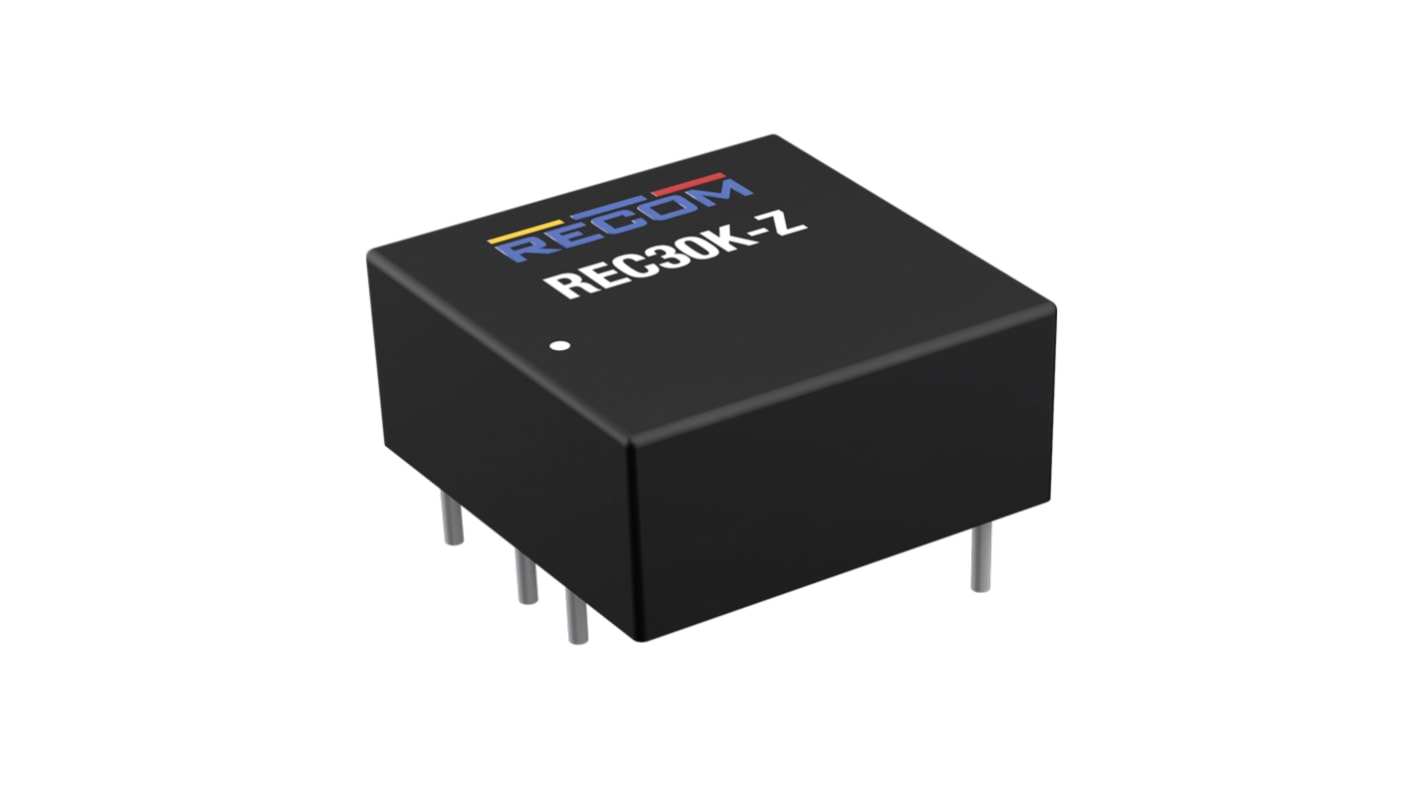

Recom REC30K DC/DC Converter, 15V dc/ 2 A, 75V dc Input, 48V dc Input 30 W, Through Hole, 105 °C Max Temp -40 °C Min

View all DC-DC Converters

Subtotal (1 tube of 18 units)*

£236.08

(exc. VAT)

£283.30

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 +£236.08£13.116

*price indicative

RS Stock No.:
217-529
Mfr. Part No.:
REC30K-4815S
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Product Type

DC/DC Converter

Output Voltage 1

15V dc

Maximum Input Voltage

75V dc

Minimum Input Voltage

48V dc

Output Current 1

2A

Output Current 2

2000mA

Output Voltage 2

15V dc

Mount Type

Through Hole

MTBF

1100000h

Number of Outputs

2

Output Voltage Adjustment Range

±10 %

Ripple and Noise

80mV Pk-Pk

Number of Pins

6

Isolation Voltage

2kV

Maximum Output Power

30W

Package Type

1 x 1 in

Length

25.4mm

Width

25.4mm

Depth

10.2mm

Series

REC30K

Weight

2g

Standards/Approvals

IEC62368-1, RoHS 2011/65/EU+AM2015/863, CAN/CSA-C22.2 No. 62368-1-19, EN IEC 62368-1:2020+A11:2020, UL62368-1

Efficiency

88%

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

COO (Country of Origin):
CN
The Recom Regulated DC to DC Converters are fully specified devices with output currents up to 6 amps, high efficiency, no minimum load, 2000VDC/1min isolation, tight regulation, and low ripple or noise figures. These converters fit well in industrial applications where board space is at a premium.

Small size

High power density

RoHS and Reach compliant

3 year warranty

Short circuits and overcurrent

Overvoltage protection
