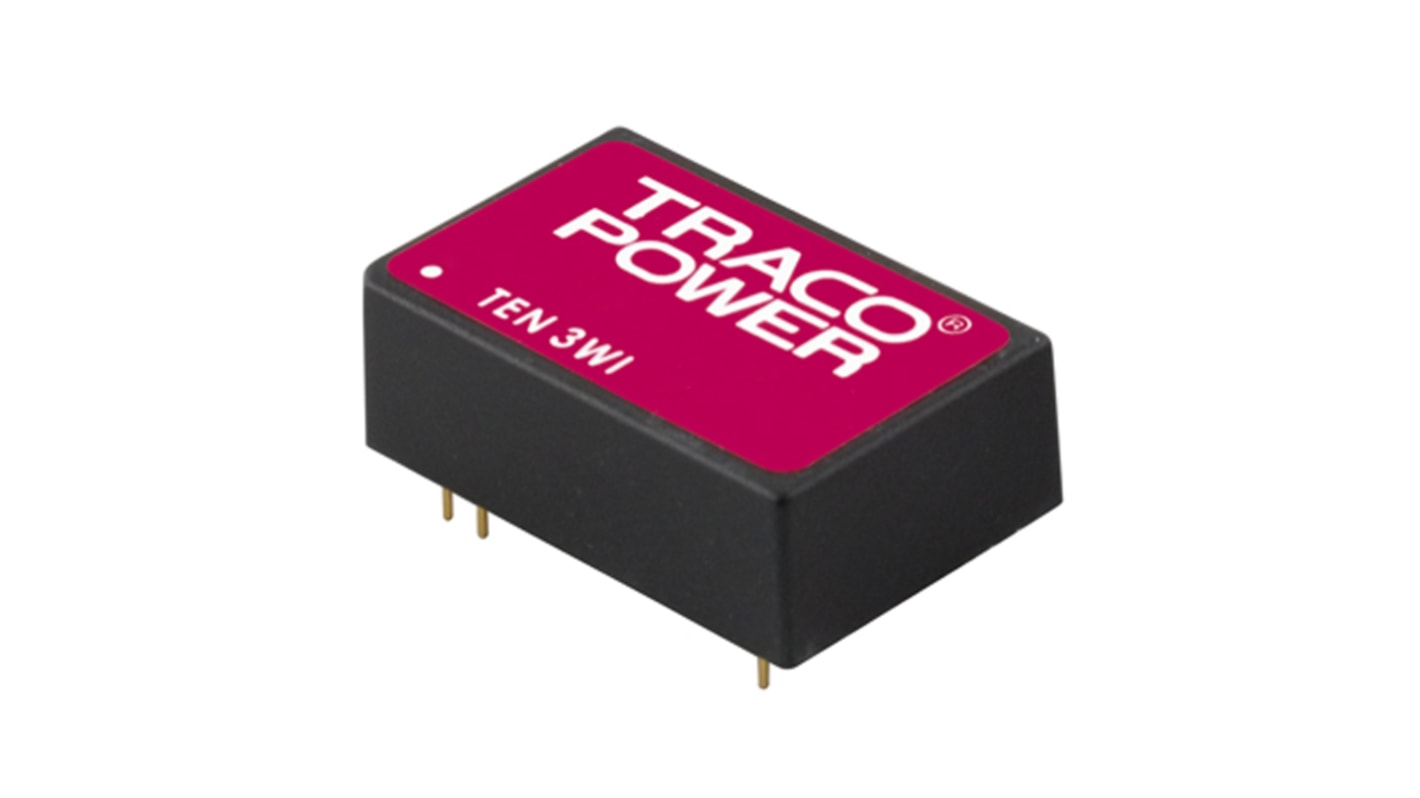

TRACOPOWER TEN 3WI DC-DC Converter, ±12V dc/ ±125mA Output, 18 → 75 V dc Input, 3W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 169-213
- Mfr. Part No.:
- TEN 3-4822WI
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£21.59
(exc. VAT)
£25.91
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £21.59 |
| 5 - 9 | £20.94 |
| 10 - 24 | £20.30 |
| 25 - 49 | £19.44 |
| 50 + | £18.57 |
*price indicative
- RS Stock No.:
- 169-213
- Mfr. Part No.:
- TEN 3-4822WI
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±12V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Power Rating | 3W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | ±125mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | DIP 24 | |
| Isolation Voltage | 1.5kV dc | |
| Width | 20mm | |
| Length | 32mm | |
| Depth | 10.2mm | |
| Series | TEN 3WI | |
| Load Regulation | ±3% | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
| Efficiency | 82% | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±12V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 48 V dc | ||
Output Current ±125mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package DIP 24 | ||
Isolation Voltage 1.5kV dc | ||
Width 20mm | ||
Length 32mm | ||
Depth 10.2mm | ||
Series TEN 3WI | ||
Load Regulation ±3% | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
Efficiency 82% | ||
