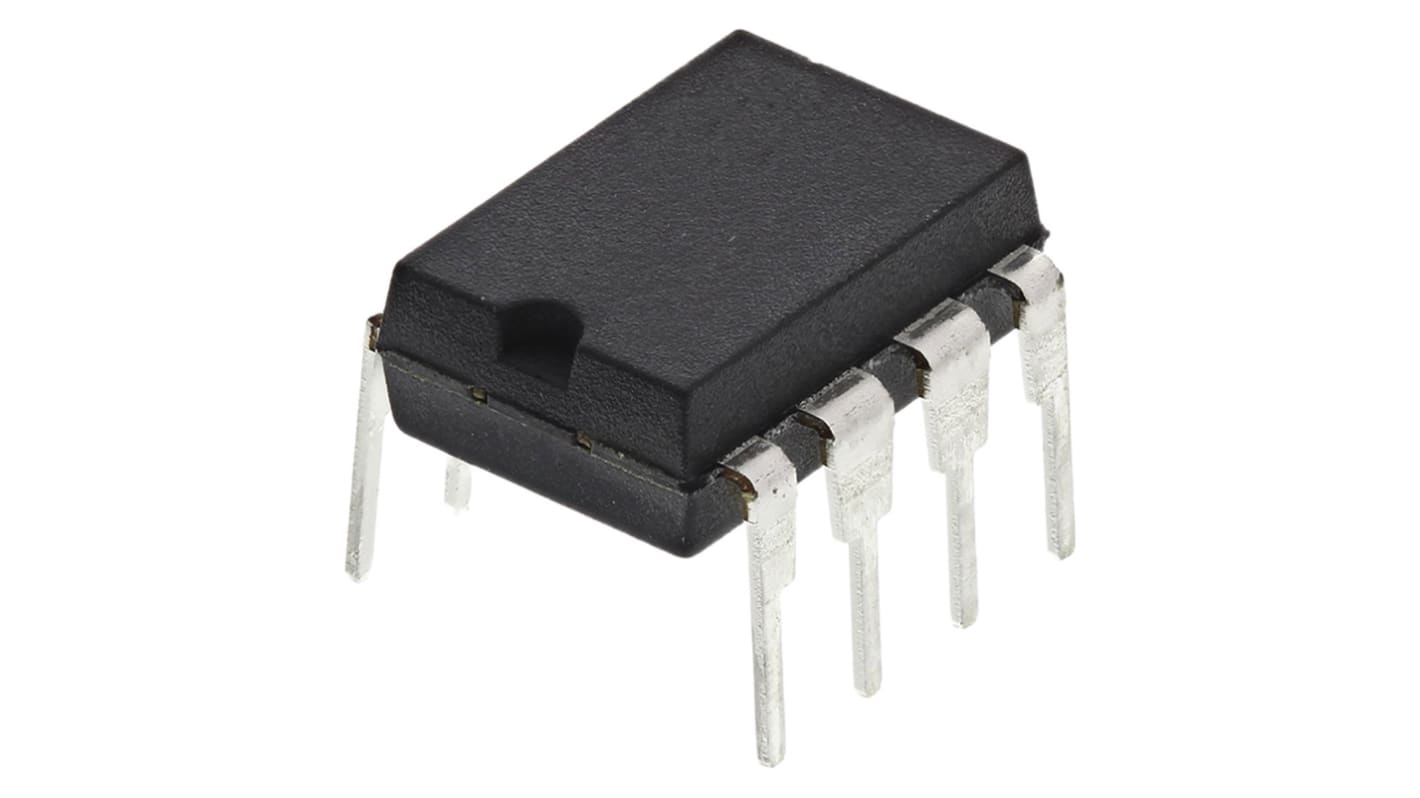

Microchip TC7660SCPA, 1-Channel, Inverting DC-DC Converter, 20mA 8-Pin, PDIP
- RS Stock No.:
- 872-2483
- Mfr. Part No.:
- TC7660SCPA
- Brand:
- Microchip
Subtotal (1 tube of 60 units)*
£46.50
(exc. VAT)
£55.80
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 720 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
60 + | £0.775 | £46.50 |
*price indicative
- RS Stock No.:
- 872-2483
- Mfr. Part No.:
- TC7660SCPA
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Minimum Output Voltage | 1.5 V | |
Maximum Output Voltage | 10 V | |
Minimum Input Voltage | 1.5 V | |
Maximum Input Voltage | 12 V | |
Minimum Output Current | 20mA | |
Converter Type | Inverting | |
Number of Outputs | 1 | |
Mounting Type | Through Hole | |
Package Type | PDIP | |
Pin Count | 8 | |
Maximum Operating Temperature | +70 °C | |
Minimum Operating Temperature | 0 °C | |
Length | 10.16mm | |
Height | 4.06mm | |
Width | 6.6mm | |
Dimensions | 10.16 x 6.6 x 4.06mm | |
Select all | ||
---|---|---|
Brand Microchip | ||
Minimum Output Voltage 1.5 V | ||
Maximum Output Voltage 10 V | ||
Minimum Input Voltage 1.5 V | ||
Maximum Input Voltage 12 V | ||
Minimum Output Current 20mA | ||
Converter Type Inverting | ||
Number of Outputs 1 | ||
Mounting Type Through Hole | ||
Package Type PDIP | ||
Pin Count 8 | ||
Maximum Operating Temperature +70 °C | ||
Minimum Operating Temperature 0 °C | ||
Length 10.16mm | ||
Height 4.06mm | ||
Width 6.6mm | ||
Dimensions 10.16 x 6.6 x 4.06mm | ||
TC7660 DC to DC Convertor, Microchip
Microchips TC7660S are brilliant and efficient DC to DC converters. They boast an impressive 98% efficiency and a 99.9% voltage conversion. This DC convertor is rated to convert +1.5V to +12V into -1.5V and -12V output using only two capacitors. The TC7660S also includes an on-board oscillator and operates at a base frequency of 10kHz. The oscillators frequency can increase to 45kHz when pin 1 is connected to V+. This device is in an 8-pin, PDIP package.
Features and benefits:
- On-board oscillator can boost from 10kHz, up to 45kHz (when pin 1 has V+.)
- Brilliant power efficiency of 98%
- Voltage conversion – 99.9%
- Industry standard 7660 charge pump converter
- Improved ESD protection – 10kV
- 8-pin, PDIP package
- Low power supply - 80μA @ 5VIN
- Converts +5V Logic Supply to ±5V System
Applications:
- Conversions of +5V to ±5V
- Voltage multiplication
- RS-232 negative power supplies
- Negative supplies for data acquisition
Blank PCB
If you need a blank PCB to test Microchips 8-pin devices such as the above, see RS stock no 681-0979
Charge Pumps, Microchip
