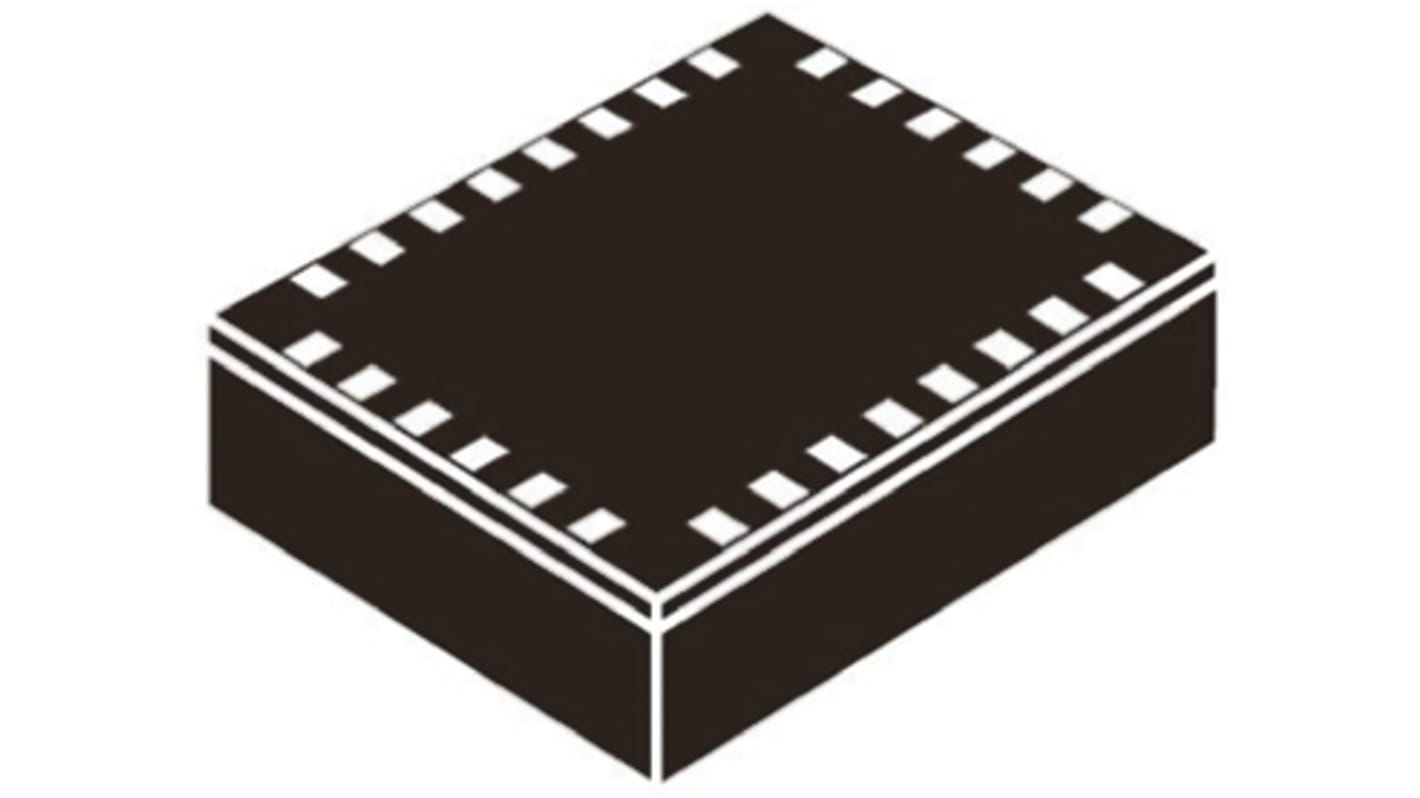

Analog Devices LTM8021EV#PBF, 1-Channel, Step Down DC-DC Converter, Adjustable 35-Pin, LGA
- RS Stock No.:
- 761-9702P
- Mfr. Part No.:
- LTM8021EV#PBF
- Brand:
- Analog Devices
Bulk discount available
Subtotal 3 units (supplied in a tray)*
£34.11
(exc. VAT)
£40.92
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 176 unit(s), ready to ship
Units | Per unit |
|---|---|
| 3 - 13 | £11.37 |
| 14 - 67 | £11.06 |
| 68 - 136 | £10.80 |
| 137 + | £10.57 |
*price indicative
- RS Stock No.:
- 761-9702P
- Mfr. Part No.:
- LTM8021EV#PBF
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Minimum Output Voltage | 0.8 V | |
| Maximum Output Voltage | 5 V | |
| Minimum Input Voltage | 3 V | |
| Maximum Input Voltage | 36 V | |
| Maximum Output Current | 500mA | |
| Converter Type | Step Down | |
| Number of Outputs | 1 | |
| Output Type | Adjustable | |
| Mounting Type | Surface Mount | |
| Maximum Switching Frequency | 1.3 MHz | |
| Package Type | LGA | |
| Pin Count | 35 | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Height | 2.82mm | |
| Length | 11.25mm | |
| Switching Regulator | Yes | |
| Load Regulation | 0.35 % | |
| Line Regulation | 0.5 % | |
| Dimensions | 11.25 x 6.25 x 2.82mm | |
| Width | 6.25mm | |
| Select all | ||
|---|---|---|
Brand Analog Devices | ||
Minimum Output Voltage 0.8 V | ||
Maximum Output Voltage 5 V | ||
Minimum Input Voltage 3 V | ||
Maximum Input Voltage 36 V | ||
Maximum Output Current 500mA | ||
Converter Type Step Down | ||
Number of Outputs 1 | ||
Output Type Adjustable | ||
Mounting Type Surface Mount | ||
Maximum Switching Frequency 1.3 MHz | ||
Package Type LGA | ||
Pin Count 35 | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Height 2.82mm | ||
Length 11.25mm | ||
Switching Regulator Yes | ||
Load Regulation 0.35 % | ||
Line Regulation 0.5 % | ||
Dimensions 11.25 x 6.25 x 2.82mm | ||
Width 6.25mm | ||
Switching Regulators, Ultralow Noise Regulators, Linear Technology
Linear Technology switching regulators incorporate synchronous and non-synchronous internal switches. This range offers ultralow noise switching voltage regulators and is suitable in sensitive RF or audio circuit environments. They have a selection of input voltages and switching frequencies with good efficiency. Typical applications include Industrial supplies, wall transformer regulation, automotive battery regulation and distributed supply regulation.
Switching Voltage Regulators, Linear Technology
Linear Technology product series of synchronous and non-synchronous internal switching regulator ICs offer high efficiency plus a wide input voltage range and switching frequencies up to 4MHz.
The controllers span over several types of configurations from buck (step-down), boost (step-up), buck-boost, forward, Isolated, Inverting and flyback controllers. The Flyback, Forward and Isolated Controllers primary and secondary side provide a solution to help replace the DC/DC bricks that get used in back-plane power conversion.
The controllers span over several types of configurations from buck (step-down), boost (step-up), buck-boost, forward, Isolated, Inverting and flyback controllers. The Flyback, Forward and Isolated Controllers primary and secondary side provide a solution to help replace the DC/DC bricks that get used in back-plane power conversion.
