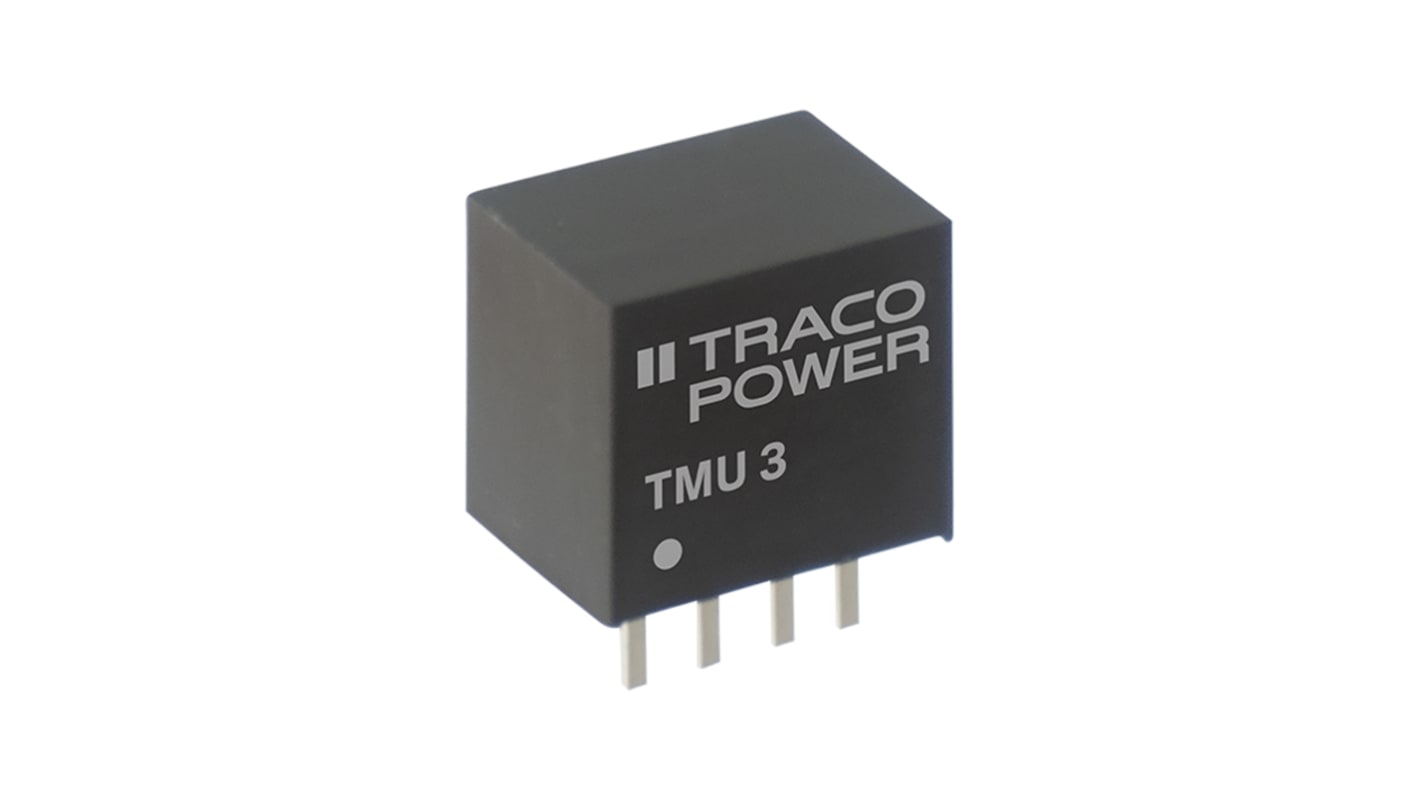

TRACOPOWER, 1-Channel DC/DC Converter, Single Output, 12V dc, 250 mA 4-Pin, SIP-4
- RS Stock No.:
- 284-8866
- Distrelec Article No.:
- 303-23-899
- Mfr. Part No.:
- TMU 3-0512
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£7.32
(exc. VAT)
£8.78
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7.32 |
*price indicative
- RS Stock No.:
- 284-8866
- Distrelec Article No.:
- 303-23-899
- Mfr. Part No.:
- TMU 3-0512
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Maximum Output Voltage | 12V dc | |
| Minimum Input Voltage | 4.5V | |
| Maximum Input Voltage | 5.5V dc | |
| Minimum Output Current | 250mA | |
| Maximum Output Current | 250mA | |
| Topology | DC-DC | |
| Output Type | Single Output | |
| Mount Type | Through Hole | |
| Maximum Switching Frequency | 80kHz | |
| Package Type | SIP-4 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 75°C | |
| Pin Count | 4 | |
| Length | 11.5mm | |
| Series | TMU | |
| Standards/Approvals | No | |
| Height | 10.2mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Maximum Output Voltage 12V dc | ||
Minimum Input Voltage 4.5V | ||
Maximum Input Voltage 5.5V dc | ||
Minimum Output Current 250mA | ||
Maximum Output Current 250mA | ||
Topology DC-DC | ||
Output Type Single Output | ||
Mount Type Through Hole | ||
Maximum Switching Frequency 80kHz | ||
Package Type SIP-4 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 75°C | ||
Pin Count 4 | ||
Length 11.5mm | ||
Series TMU | ||
Standards/Approvals No | ||
Height 10.2mm | ||
Automotive Standard No | ||
The TRACOPOWER set of isolated 3 Watt DC/DC converters with unregulated outputs in a standard SIP-4 package. They are designed to offer a compact low-cost alternative to regulated series with no concession on quality and lifetime. They feature a continuous short circuit protection circuit, I/O-isolation of 1500 VDC and an operating temperature range from –40°C to 75°C without derating. The compact dimensions of these converters make them an ideal solution for many space critical applications in communication equipment, instrumentation and industrial electronics.
Continuous short circuit protection
Unregulated outputs
High efficiency
