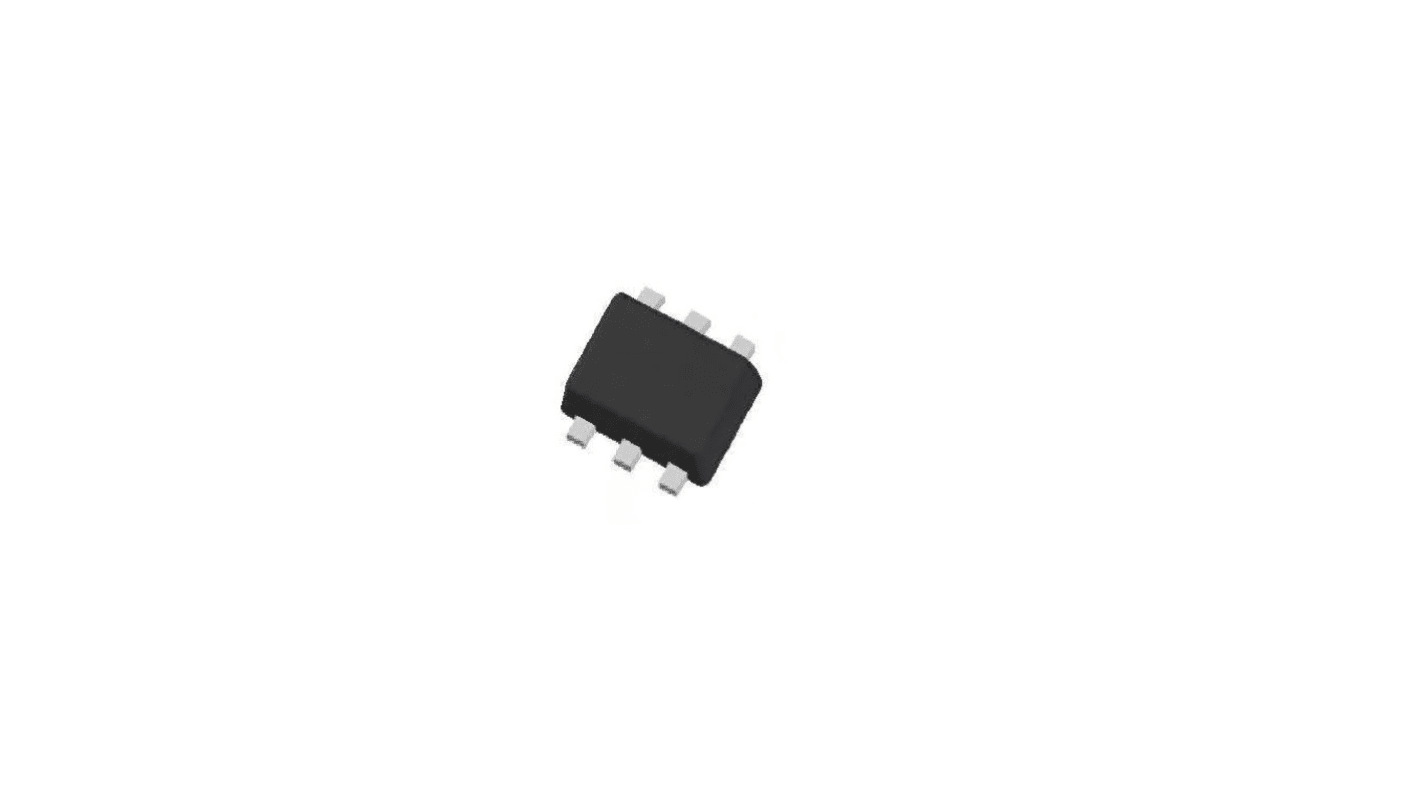

DiodesZetex AP61100QZ6-7, 1-Channel Buck Converter, Adjustable, 3.6V, 0.6 V, 1 A 6-Pin, SOT-563
- RS Stock No.:
- 213-9032
- Mfr. Part No.:
- AP61100QZ6-7
- Brand:
- DiodesZetex
Bulk discount available
Subtotal (1 pack of 25 units)*
£9.175
(exc. VAT)
£11.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 5,400 unit(s) shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.367 | £9.18 |
| 50 - 75 | £0.36 | £9.00 |
| 100 - 225 | £0.321 | £8.03 |
| 250 - 975 | £0.314 | £7.85 |
| 1000 + | £0.257 | £6.43 |
*price indicative
- RS Stock No.:
- 213-9032
- Mfr. Part No.:
- AP61100QZ6-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Buck Converter | |
| Maximum Output Voltage | 3.6V | |
| Minimum Input Voltage | 2.3V | |
| Maximum Input Voltage | 5.5V | |
| Minimum Output Current | 1A | |
| Maximum Output Current | 1A | |
| Topology | Synchronous Buck | |
| Output Type | Adjustable | |
| Maximum Switching Frequency | 2.2MHz | |
| Mount Type | Surface | |
| Package Type | SOT-563 | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 6 | |
| Maximum Operating Temperature | 125°C | |
| Length | 1.6mm | |
| Height | 0.85mm | |
| Series | AP61100 | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q100 | |
| Minimum Output Voltage | 0.6V | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Buck Converter | ||
Maximum Output Voltage 3.6V | ||
Minimum Input Voltage 2.3V | ||
Maximum Input Voltage 5.5V | ||
Minimum Output Current 1A | ||
Maximum Output Current 1A | ||
Topology Synchronous Buck | ||
Output Type Adjustable | ||
Maximum Switching Frequency 2.2MHz | ||
Mount Type Surface | ||
Package Type SOT-563 | ||
Minimum Operating Temperature -40°C | ||
Pin Count 6 | ||
Maximum Operating Temperature 125°C | ||
Length 1.6mm | ||
Height 0.85mm | ||
Series AP61100 | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q100 | ||
Minimum Output Voltage 0.6V | ||
The DiodesZetex AP61100 series is a synchronous buck converter with a wide input voltage range. It is used in network video cameras, wireless routers, consumer electronics and general purpose point of load.
Up to 89% efficiency at 5mA light load
Protection circuitry
