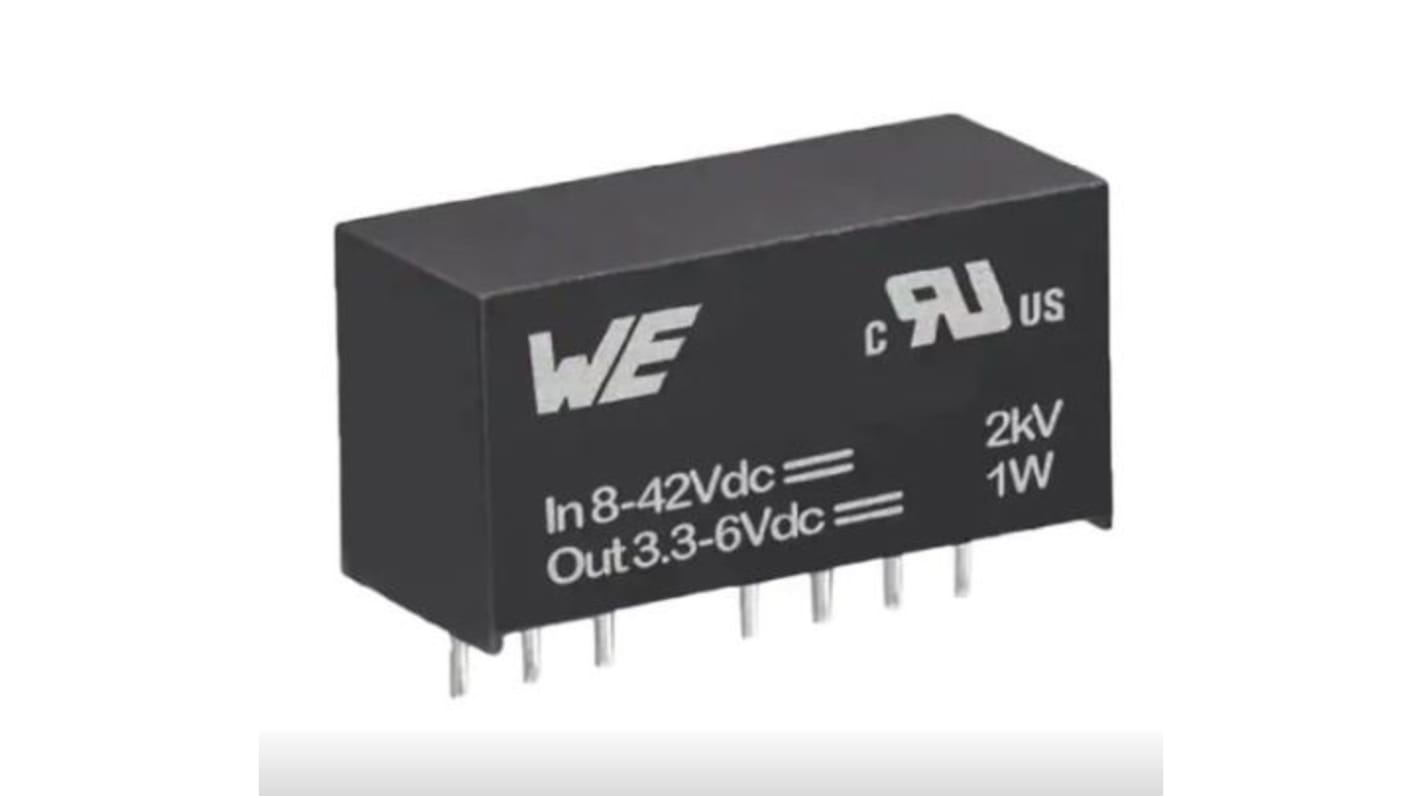

Wurth Elektronik 17791063215, 5-Channel DC/DC Converter, Adjustable, 6V, 3.3 V, 300 mA 8-Pin, SIP
- RS Stock No.:
- 206-9441
- Mfr. Part No.:
- 17791063215
- Brand:
- Wurth Elektronik
Subtotal (1 tube of 23 units)*
£221.26
(exc. VAT)
£265.42
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 23 unit(s) shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 23 + | £9.62 | £221.26 |
*price indicative
- RS Stock No.:
- 206-9441
- Mfr. Part No.:
- 17791063215
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | DC/DC Converter | |
| Maximum Output Voltage | 6V | |
| Minimum Input Voltage | 8V | |
| Maximum Input Voltage | 42V | |
| Minimum Output Current | 300mA | |
| Number of Outputs | 5 | |
| Output Type | Adjustable | |
| Mount Type | Through Hole | |
| Maximum Switching Frequency | 556kHz | |
| Minimum Operating Temperature | -40°C | |
| Package Type | SIP | |
| Pin Count | 8 | |
| Maximum Operating Temperature | 85°C | |
| Width | 9.2mm | |
| Standards/Approvals | No | |
| Height | 11.1mm | |
| Length | 21.8mm | |
| Series | VISM | |
| Minimum Output Voltage | 3.3V | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type DC/DC Converter | ||
Maximum Output Voltage 6V | ||
Minimum Input Voltage 8V | ||
Maximum Input Voltage 42V | ||
Minimum Output Current 300mA | ||
Number of Outputs 5 | ||
Output Type Adjustable | ||
Mount Type Through Hole | ||
Maximum Switching Frequency 556kHz | ||
Minimum Operating Temperature -40°C | ||
Package Type SIP | ||
Pin Count 8 | ||
Maximum Operating Temperature 85°C | ||
Width 9.2mm | ||
Standards/Approvals No | ||
Height 11.1mm | ||
Length 21.8mm | ||
Series VISM | ||
Minimum Output Voltage 3.3V | ||
Automotive Standard No | ||
The Wurth Elektronik VISM series regulated MagI3C power module family is a functional isolated, fully integrated DC/DC converter. It has an integrated protection circuit that guards against thermal overstress and electrical damage by using thermal shut-do
Peak efficiency up to 82%
2kV DC for 60 sec functional isolation
RoHS & REACh compliant
Low output voltage ripple
Operating ambient temperature range - 40°C to 85°C
