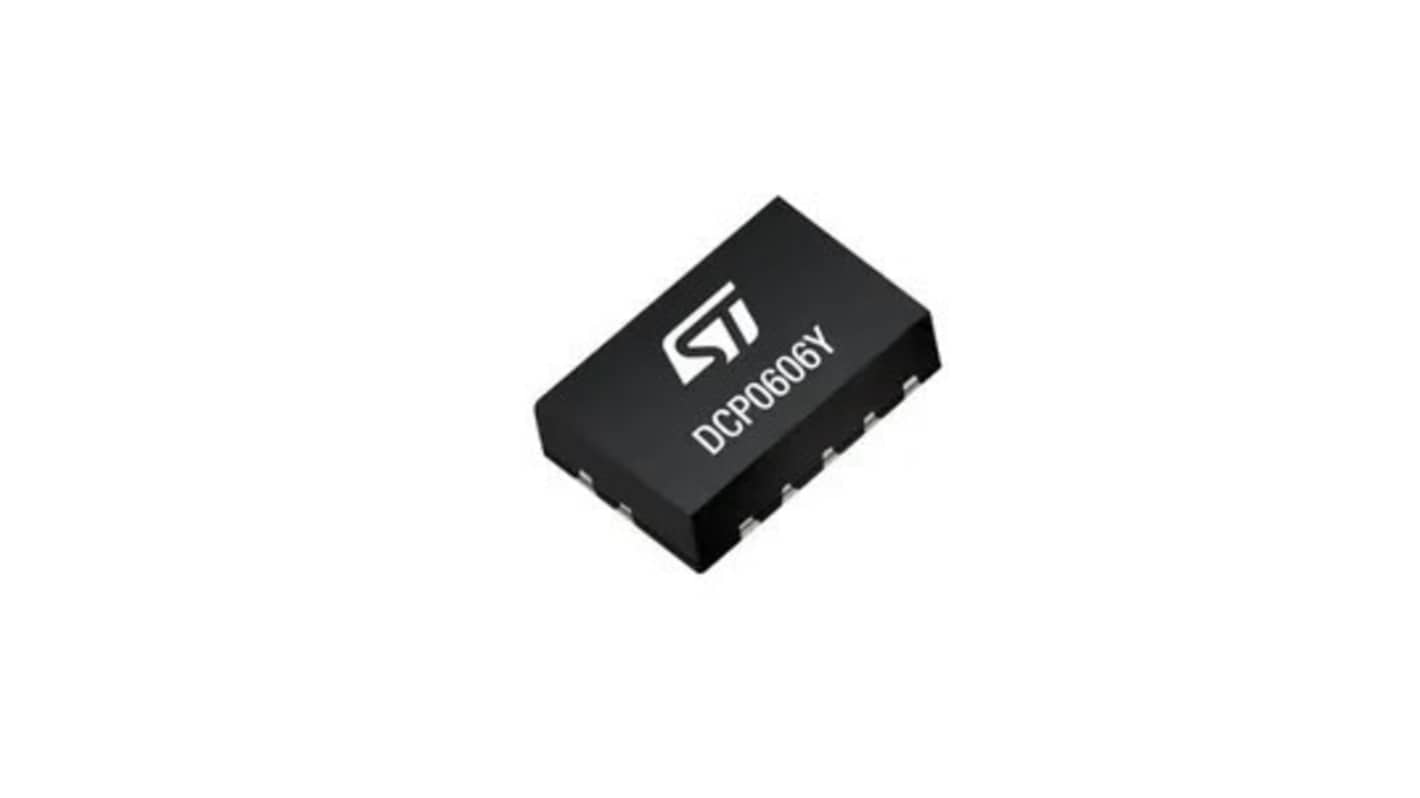

STMicroelectronics DCP0606QTRY, Step Down DC-DC Converter, 6A 11-Pin, QFN

View all DC-DC Converters ICs
Save 37% when you buy 500 units

Subtotal (1 unit)*

£2.05

(exc. VAT)

£2.46

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,999 unit(s) shipping from 03 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£2.05
10 - 24£1.80
25 - 99£1.62
100 - 499£1.39
500 +£1.29

*price indicative

RS Stock No.:
527-113
Mfr. Part No.:
DCP0606QTRY
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Minimum Output Voltage

0.6 V

Minimum Input Voltage

2.9 V

Maximum Input Voltage

6 V

Minimum Output Current

6A

Converter Type

Step Down

Package Type

QFN

Pin Count

11

COO (Country of Origin):
TW
The STMicroelectronics high efficiency monolithic step-down synchronous switching regulator designed to deliver up to 6 A continuous current. The IC operates from 2.9 V to 6 V input voltage. It features low-resistance integrated N-channel MOSFETs and diode emulation working mode for optimum efficiency over all the loading range. The integrated 0.6 V reference allows the regulation of output voltages with ± 1.5% accuracy over temperature variations. The switching frequency is externally adjustable between 1.8 MHz and 4 MHz.

Available in QFN 2 x 3 mm with 11 leads with wettable flanks
AEC-Q100 Grade 1 qualified
Selectable switching frequency from 1.8 to 4 MHz with dithering
External synchronization with programmable phase shift
