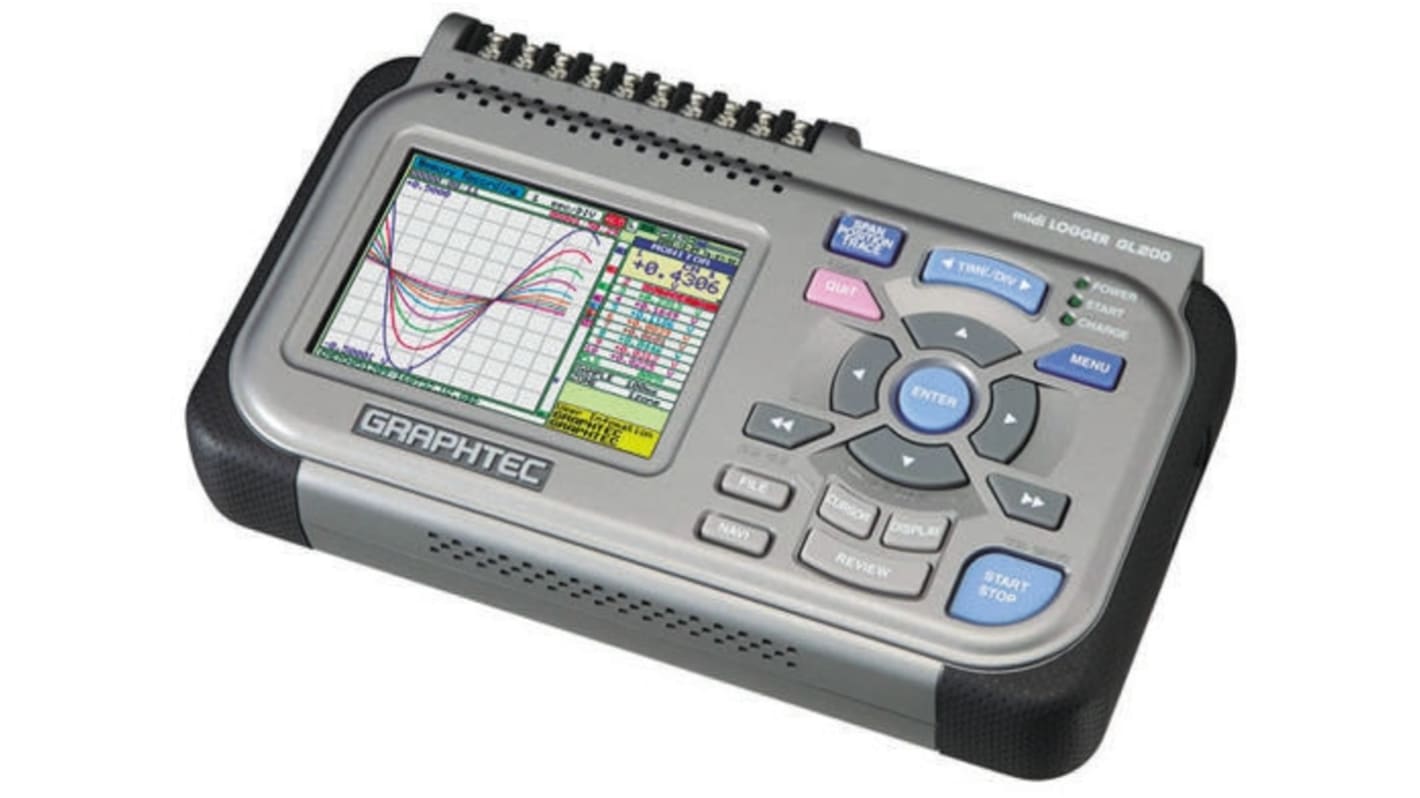

Graphtec GL200A Data Logger, USB
- RS Stock No.:
- 145-897
- Mfr. Part No.:
- GL200A
- Brand:
- Graphtec
Discontinued
- RS Stock No.:
- 145-897
- Mfr. Part No.:
- GL200A
- Brand:
- Graphtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Graphtec | |
| Model Number | GL200A | |
| Number of Input Channels | 10 | |
| Measurement Parameters | Humidity, Temperature, Voltage | |
| Sensor Type | B, J, K, N, R, S, T, W | |
| Interface Type | USB | |
| Maximum Voltage Measurement | 50V | |
| Maximum Temperature Measurement | +1100 (J) °C, +1300 (N) °C, +1370 (K) °C, +1760 (R/S) °C, +1820 (B) °C, +2315 (W) °C, +400 (T) °C, +800 (E) °C | |
| Power Source | Battery, Mains | |
| Best Temperature Measurement Accuracy | ±0.05 % | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | +40°C | |
| Display Type | LCD | |
| Best Voltage Measurement Accuracy | ±0.1 % | |
| Dimensions | 192 x 122 x 41mm | |
| Alarm | Yes | |
| Battery Type | Rechargeable Lithium-Ion | |
| Maximum Humidity Measurement | 100%RH | |
| Includes | AC Adapter, Software, UK Mains Lead | |
| Select all | ||
|---|---|---|
Brand Graphtec | ||
Model Number GL200A | ||
Number of Input Channels 10 | ||
Measurement Parameters Humidity, Temperature, Voltage | ||
Sensor Type B, J, K, N, R, S, T, W | ||
Interface Type USB | ||
Maximum Voltage Measurement 50V | ||
Maximum Temperature Measurement +1100 (J) °C, +1300 (N) °C, +1370 (K) °C, +1760 (R/S) °C, +1820 (B) °C, +2315 (W) °C, +400 (T) °C, +800 (E) °C | ||
Power Source Battery, Mains | ||
Best Temperature Measurement Accuracy ±0.05 % | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +40°C | ||
Display Type LCD | ||
Best Voltage Measurement Accuracy ±0.1 % | ||
Dimensions 192 x 122 x 41mm | ||
Alarm Yes | ||
Battery Type Rechargeable Lithium-Ion | ||
Maximum Humidity Measurement 100%RH | ||
Includes AC Adapter, Software, UK Mains Lead | ||
RoHS Status: Not Applicable
Graphtec GL200 Data Logger
The GL200 accepts voltage, temperature, humidity, pulse and logic inputs. Its inter-channel isolation protects against wiring errors or overloaded channels. Inputs are connected via rear mounted M3 screw terminals and the built-in 3.5M on board memory is non-volatile so that data is retained even if the power supply is interrupted.
Compact hand-held data logger with shock absorbent rubber side panels
Vivid 3.5in. TFT display to view captured data in real time and for replaying recorded data.
10 isolated multifunction analogue inputs that can be individually configured for voltage, temperature and humidity inputs.
Logic, pulse & external trigger input
Alarm output terminal (open collector: 30V max 0.5A)
USB interface
3.5MB internal non volatile memory
Data storage directly to a USB memory stick for long term monitoring over several days
Comprehensive user configuration of input type, range and filter parameters, sample interval, calculation settings, trigger stop/start and alarm settings
2 screen replay function to check current data against previously captured data
Statistical calculations (Min, Max, Average, Peak & RMS) and data search operations can be performed during data replay
Free software for detailed analysis of recorded data, Logger control and file transfer.
Pulse and Logic inputs and Alarm outputs.
Optional Li-Ion battery pack.
External DC supply input (connection cable available separately)
Vivid 3.5in. TFT display to view captured data in real time and for replaying recorded data.
10 isolated multifunction analogue inputs that can be individually configured for voltage, temperature and humidity inputs.
Logic, pulse & external trigger input
Alarm output terminal (open collector: 30V max 0.5A)
USB interface
3.5MB internal non volatile memory
Data storage directly to a USB memory stick for long term monitoring over several days
Comprehensive user configuration of input type, range and filter parameters, sample interval, calculation settings, trigger stop/start and alarm settings
2 screen replay function to check current data against previously captured data
Statistical calculations (Min, Max, Average, Peak & RMS) and data search operations can be performed during data replay
Free software for detailed analysis of recorded data, Logger control and file transfer.
Pulse and Logic inputs and Alarm outputs.
Optional Li-Ion battery pack.
External DC supply input (connection cable available separately)
Supplied with
User manual, USB driver and application software on CD-ROM, UK mains lead and ac adaptor
